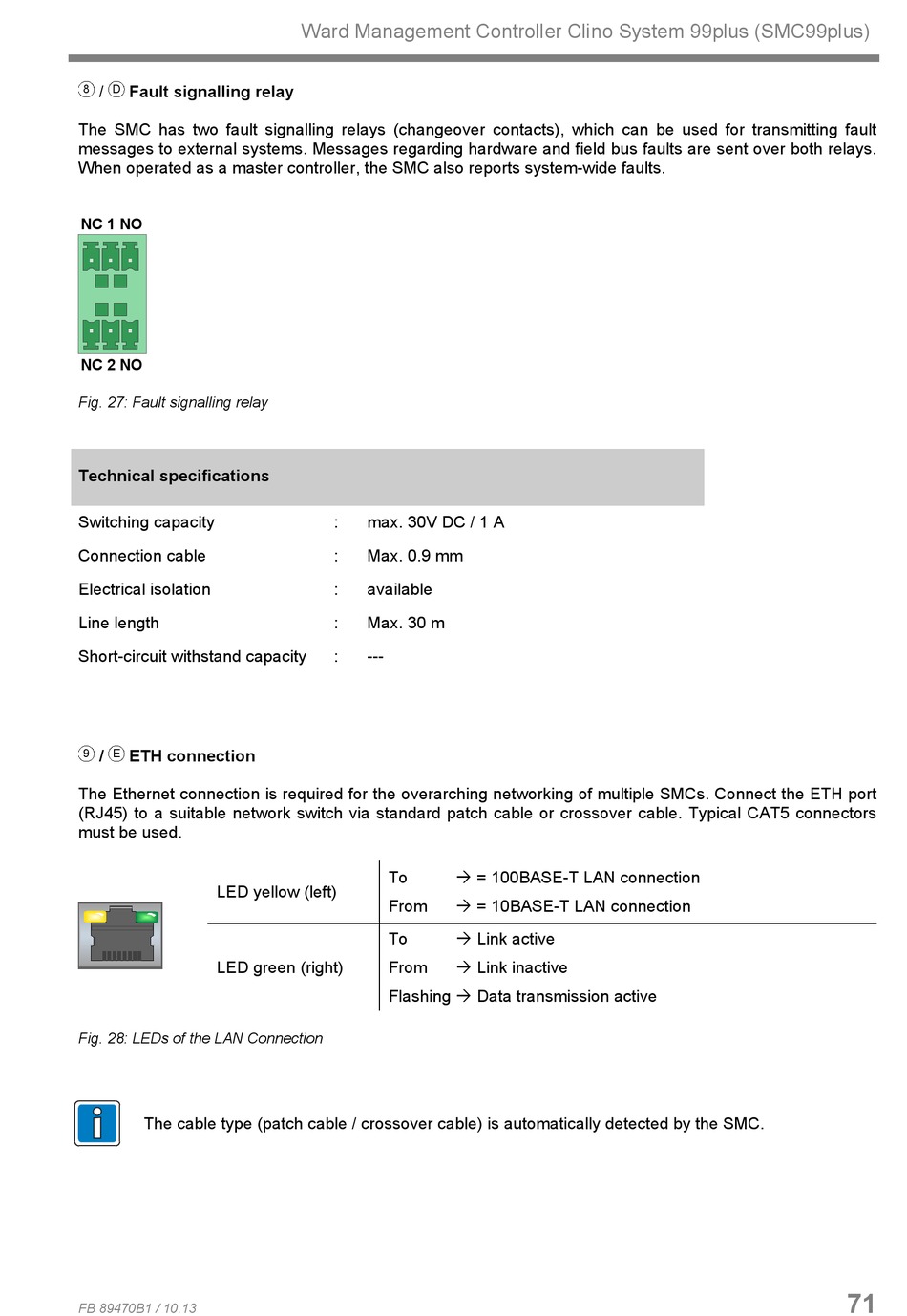

/ Fault signalling relay
8 D
The SMC has two fault signalling relays (changeover contacts), which can be used for transmitting fault
messages to external systems. Messages regarding hardware and field bus faults are sent over both relays.
When operated as a master controller, the SMC also reports system-wide faults.
NC 1 NO
NC 2 NO
Fig. 27: Fault signalling relay
Technical specifications
Switching capacity
Connection cable
Electrical isolation
Line length
Short-circuit withstand capacity
/ ETH connection
9 E
The Ethernet connection is required for the overarching networking of multiple SMCs. Connect the ETH port
(RJ45) to a suitable network switch via standard patch cable or crossover cable. Typical CAT5 connectors
must be used.
LED yellow (left)
LED green (right)
Fig. 28: LEDs of the LAN Connection
The cable type (patch cable / crossover cable) is automatically detected by the SMC.
FB 89470B1 / 10.13
Ward Management Controller Clino System 99plus (SMC99plus)
: max. 30V DC / 1 A
: Max. 0.9 mm
: available
: Max. 30 m
: ---
To  = 100BASE-T LAN connection
From  = 10BASE-T LAN connection
To  Link active
From  Link inactive
Flashing  Data transmission active
