Operation

8 Operation
8.1

Navigation via menus

Local operation involves using the graphic display (120 x 32 pixels) and 3 buttons that are
activated by means of the magnetic pen.
In the case of the low-voltage version, you also have the option of removing the front cover and
display cover frame in order to use the push buttons for parameterization purposes (see Fig.
16).
DANGER
Opening the front housing cover in potentially explosive atmospheres creates a risk of
explosion.
This can result in severe injuries or death.
Only ever use the magnetic pen for parameterization purposes.
NOTICE - Potential damage to parts!
Always take ESD precautions before touching modules.

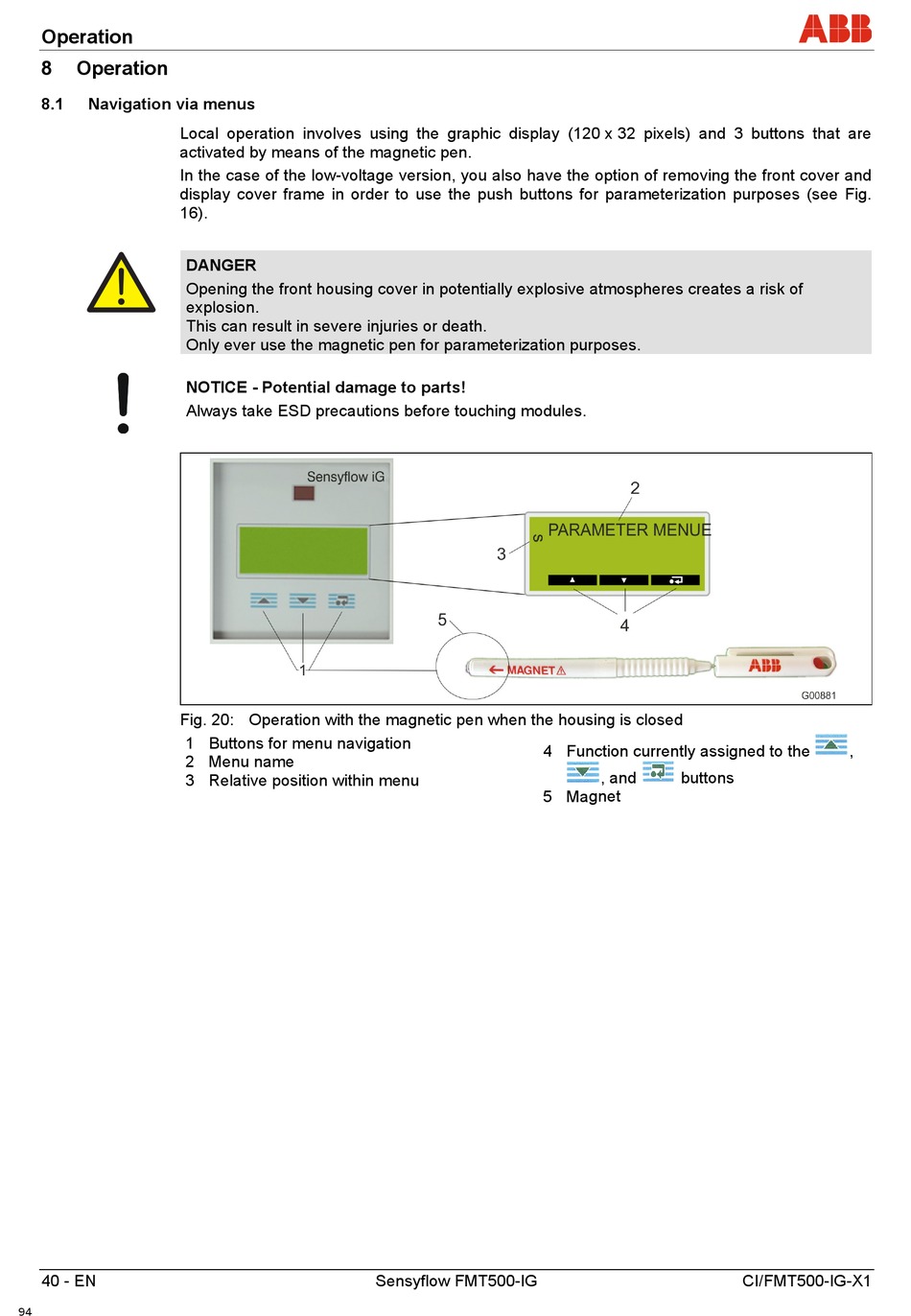

Fig. 20: Operation with the magnetic pen when the housing is closed
1 Buttons for menu navigation
2 Menu name
3 Relative position within menu
40 - EN
94
4 Function currently assigned to the
5 Magnet
Sensyflow FMT500-IG
, and buttons
CI/FMT500-IG-X1
,
