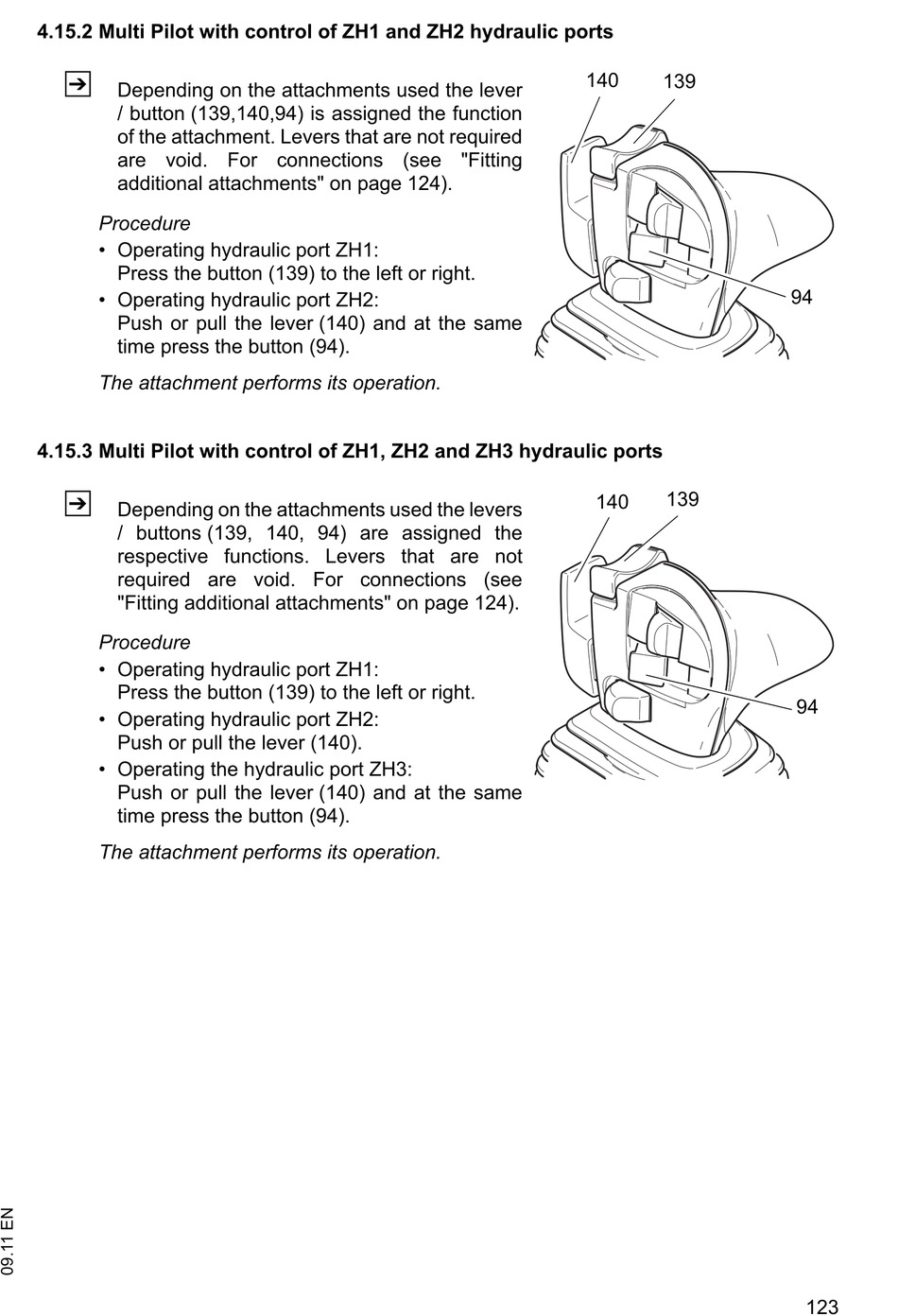

4.15.2 Multi Pilot with control of ZH1 and ZH2 hydraulic ports
Z
Depending on the attachments used the lever
/ button (139,140,94) is assigned the function
of the attachment. Levers that are not required
are void. For connections (see "Fitting
additional attachments" on page 124).
Procedure
• Operating hydraulic port ZH1:
Press the button (139) to the left or right.
• Operating hydraulic port ZH2:
Push or pull the lever (140) and at the same
time press the button (94).
The attachment performs its operation.
4.15.3 Multi Pilot with control of ZH1, ZH2 and ZH3 hydraulic ports
Z
Depending on the attachments used the levers
/ buttons (139, 140, 94) are assigned the
respective functions. Levers that are not
required are void. For connections (see
"Fitting additional attachments" on page 124).
Procedure
• Operating hydraulic port ZH1:
Press the button (139) to the left or right.
• Operating hydraulic port ZH2:
Push or pull the lever (140).
• Operating the hydraulic port ZH3:
Push or pull the lever (140) and at the same
time press the button (94).
The attachment performs its operation.
140
139
139
140
94
94
123
