Mobile Launcher - Multiplex WINGSTABI Erweiterte Anleitung

After the configuration has successfully been transmitted, cut the power to the BT
module and delete the linked BT module from the Android system. After switching on
and linking again, the BT module is then available with the new settings. However, it is
not without risk that the name and PIN are changed: Should you forget the password
you assigned, the Bluetooth adapter can no longer be used. It is not without reason that
the PIN is printed on the BT module label.

Mobile Launcher

Once the app is correctly installed and your WINGSTABI is connected with the
Bluetooth adapter and a power supply, the gyro system reports with the BT module
name, the gyro type, the software version and the firmware time stamp.

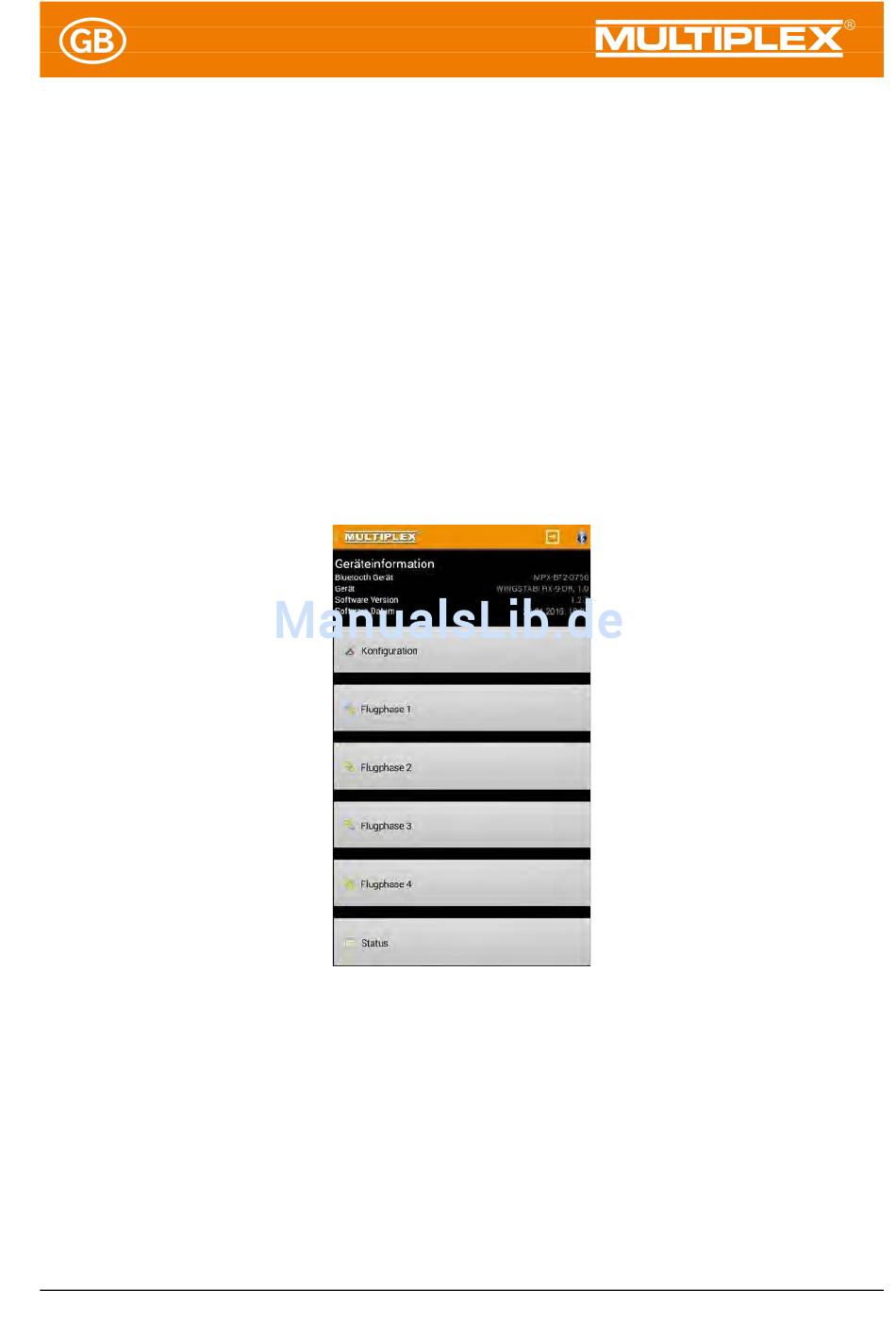

Figure 27: Info-page for the
WINGSTABI-connection
This includes six main menu items: Configuration, four gyro phases and connection
status. These include all the setting options with which you will be familiar from the PC,
albeit to some extent – depending on the system – structured differently.
Seite 35/39
