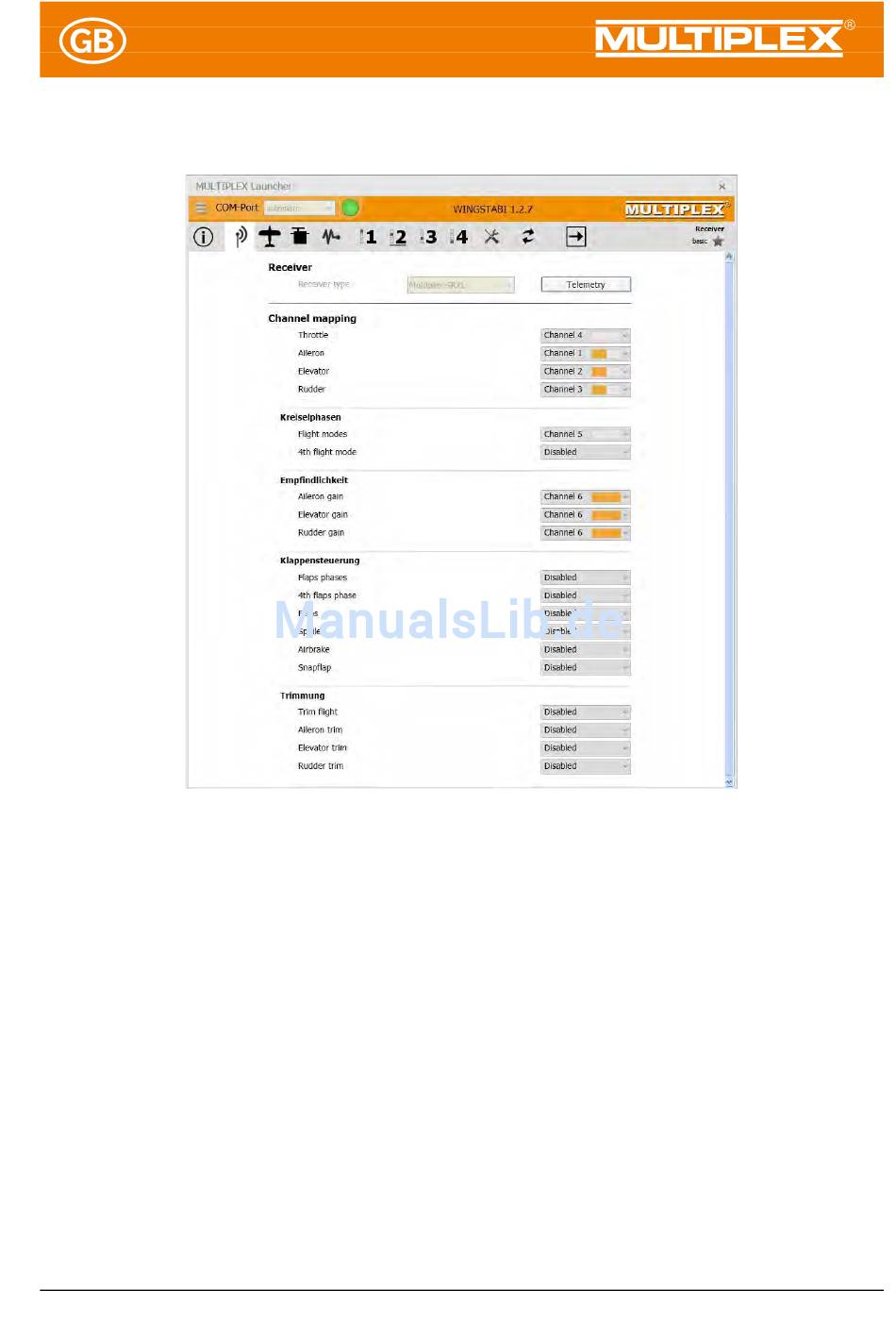

Figure 6: WINGSTABI channel asignment
On the same screen page, you will be shown the telemetry settings for MSB systems.
Here, select M-LINK standard or PROFI-TX (telemetry display) as desired. The PROFI-
TX and the telemetry display emit longer value identifiers than for instance the M-LINK
standard of the Royal SX. Next, sort the sensor addresses according to your
specifications, bearing in mind that double allocations are not permitted. On M-LINK
receivers, the "1" address is reserved for connection monitoring, so please don't assign
this to something else. The receiver voltage monitoring is also already correctly pre-
selected for M-LINK. If you don't have any MSB-compatible telemetry, select
"Deactivated".
