Individualization - Multiplex WINGSTABI Erweiterte Anleitung

Individualization

However you made your basic settings, you eventually end up at the start screen.
Manual settings must be made from here. To do this, (almost) every screen page for
basic settings has a basic page and an advanced page for the more seldom required
fine adjustments. To switch, click at the top right in the menu bar with the asterisk.

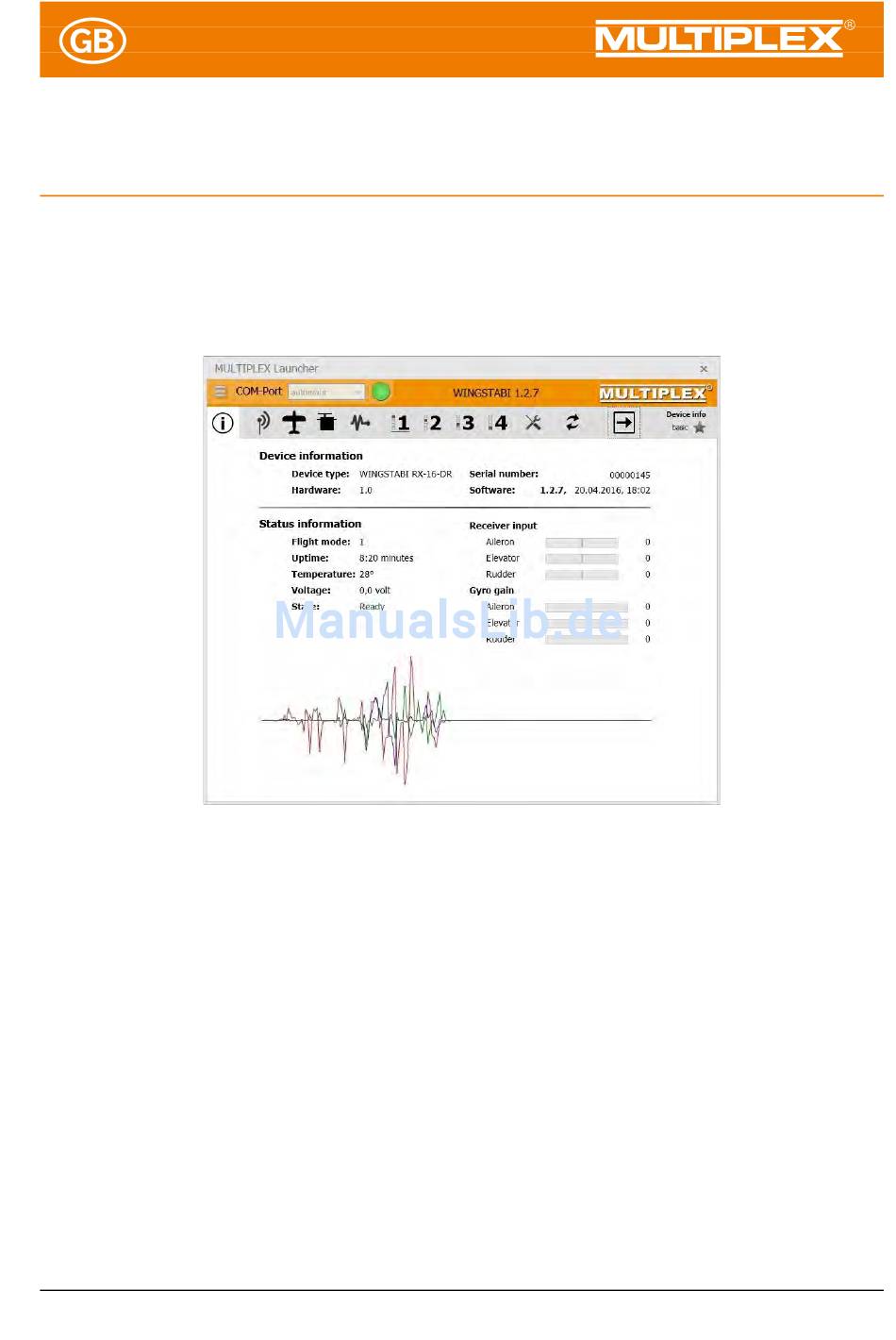

Figure 5: WINGSTABI info-page
On the info page, you can find basic information on the WINGSTABI and the current
status of the system. The active gyro phase is displayed and underlined. There should
obviously be a connection between transmitter, receiver and gyro. If this is not the case,
the corresponding alert is shown in red next to "Status". System errors are stored in a
special error memory. They can be read out and deleted under "Advanced".
If the status is "Operational" (in green), you can check the three receiver signals for
ailerons, elevator and rudder by moving the controllers. These represent the gyro
sensitivity of these control surfaces, which can be set differently depending on the
phase currently selected. Beneath this you will see a timeline, which displays the
correction signals from the gyro in real time. Move the model with the gyro around each
axis once. The red line denotes the ailerons, the blue the elevator and the green the
rudder.
