Servo Outputs Of The Wingstabi - Multiplex WINGSTABI Erweiterte Anleitung

In order to set up the activated flaps in this menu item, a new flap menu symbol appears
after activation behind the airplane symbol. Of course, controllers and channels for flap
control must likewise be assigned at the transmitter end, such as control channels and
flap servos in the WINGSTABI. There is a special chapter dedicated to "Programming
flap control".

Servo outputs of the WINGSTABI

By opening the menu with the servo symbol, depending on the WINGSTABI version,
varying numbers of servo outputs are displayed, to which the servos installed in the
model must now be correctly assigned. This assignment has NOTHING to do with the
servo channel assignment (coming from the transmitter) at the input side. You are
completely free to choose here. It is nevertheless advisable to follow the standard of
your RC system, in order to have an understandable assignment in the model. MPX
systems generally use servo 1 for the left ailerons, servo 5 for the right ailerons, servo 2
for the elevator, servo 3 for the rudder and servo 4 for the throttle. For changes, click
the corresponding servo on the left, which is then highlighted in red.

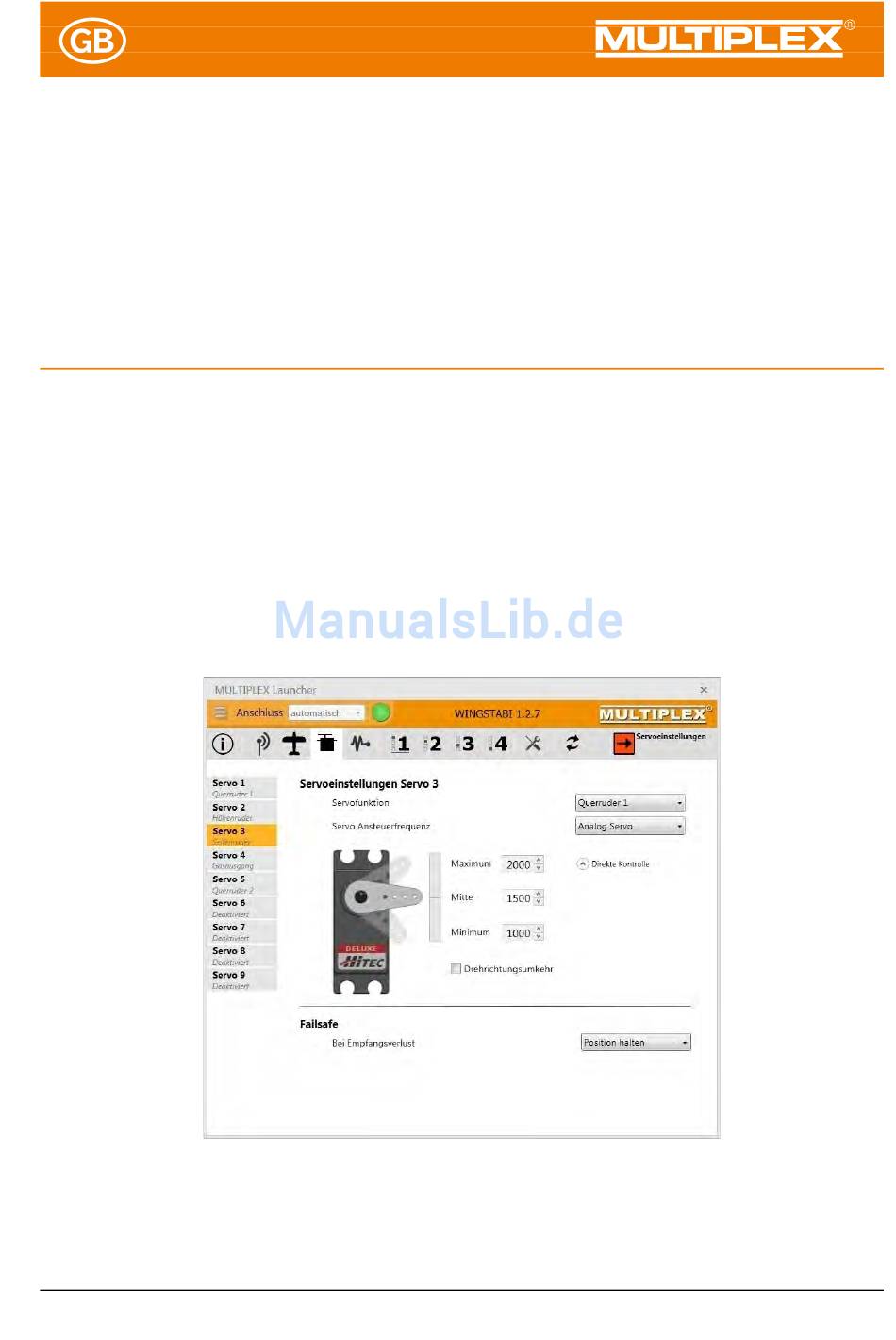

Figure 8: Configuring the servo outputs
