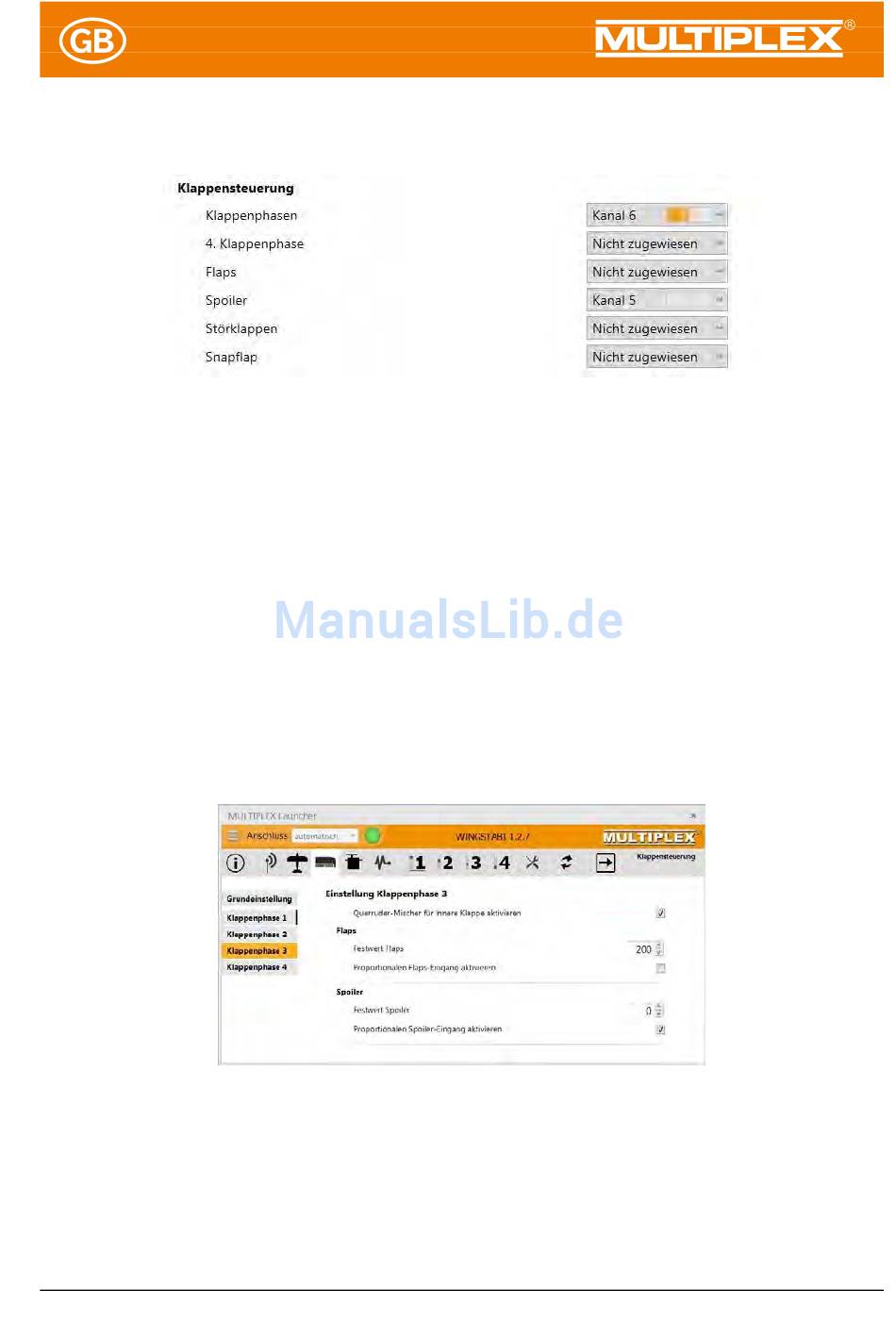

Figure 21: Alternative input channel assignment
In the basic settings, we set the mixes of flaps for the inner flaps to the full travels, i.e.
120% and for the ailerons to half, i.e. 60%. This leaves ample travel for the aileron
effectiveness on the outer flaps.
Unlike before, the different values must now be programmed for flap phases 1 to 3. In
flap phase 1, we leave "0" everywhere, and remove the cross by proportional flaps, so
that no flaps are set here, while the spoilers can still be extended proportionally.
The fixed values for the flaps are now entered in phases 2 and 3, which for instance
might make sense when trying to achieve two different starting positions for wind and
bungee cord starts. In flap phase 2, a moderate warping down and in flap phase 3 an
increased (doubled) warping – likewise down – are set for this.
Figure 22: Flap phase settings
