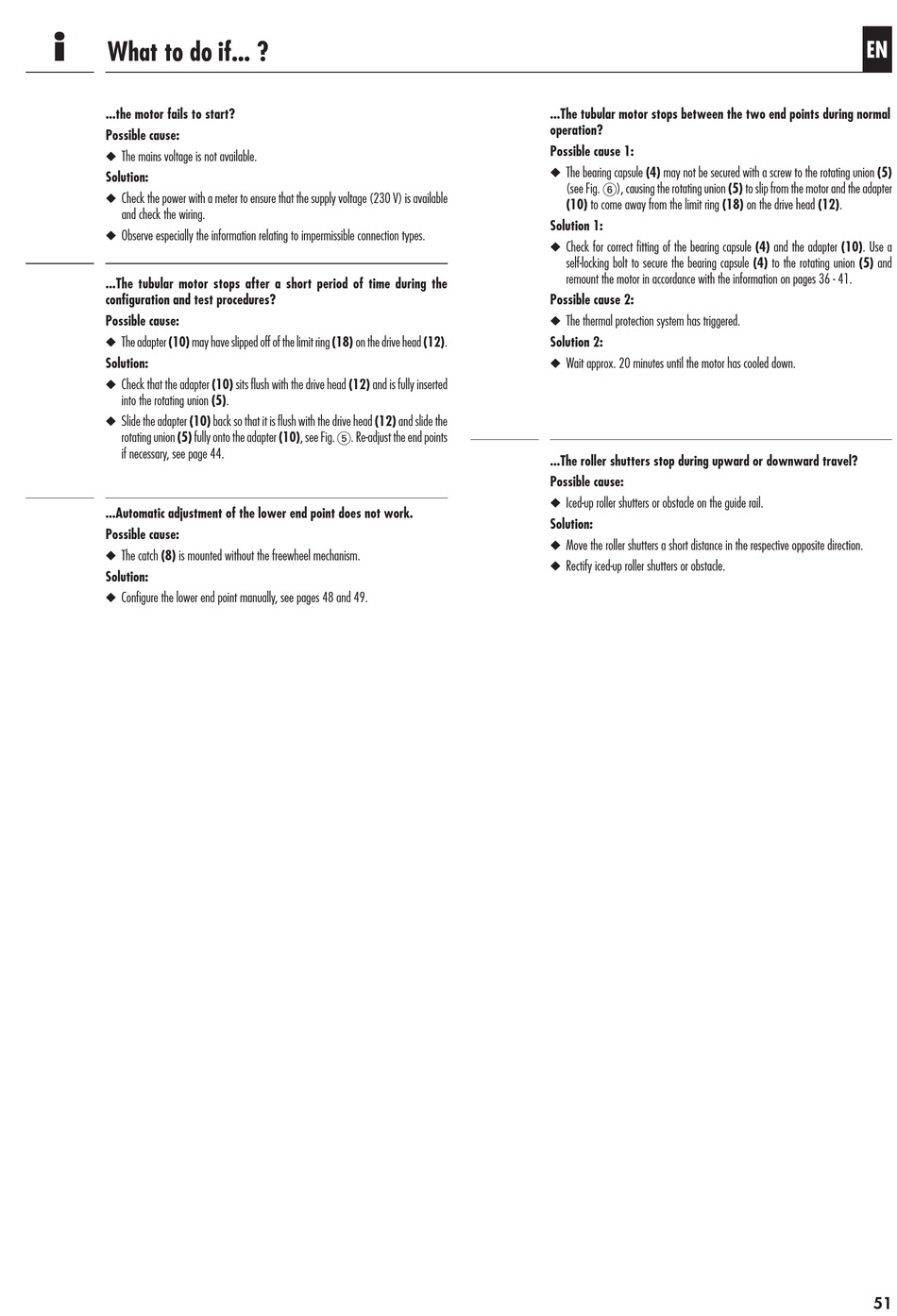

What to do if... ?
...the motor fails to start?
Possible cause:
. ◆ The.mains.voltage.is.not.available.
Solution:
. ◆ Check.the.power.with.a.meter.to.ensure.that.the.supply.voltage.(230.V).is.available. .
. and.check.the.wiring.
. ◆ Observe.especially.the.information.relating.to.impermissible.connection.types.
...The tubular motor stops after a short period of time during the
configuration and test procedures?
Possible cause:
. ◆ The.adapter.(10).may.have.slipped.off.of.the.limit.ring.(18) on.the.drive.head.(12).
Solution:
. ◆ Check.that.the.adapter.(10).sits.flush.with.the.drive.head.(12).and.is.fully.inserted.
. into.the.rotating.union.(5).
. ◆ Slide.the.adapter.(10).back.so.that.it.is.flush.with.the.drive.head.(12).and.slide.the.
. rotating.union.(5).fully.onto.the.adapter.(10),.see.Fig....Re-adjust.the.end.points.
. if.necessary,.see.page.44.
...Automatic adjustment of the lower end point does not work.
Possible cause:
. ◆ The.catch.(8).is.mounted.without.the.freewheel.mechanism.
Solution:
. ◆ Configure.the.lower.end.point.manually,.see.pages.48.and.49.
...The tubular motor stops between the two end points during normal
operation?
Possible cause 1:
. ◆ The.bearing.capsule.(4).may.not.be.secured.with.a.screw.to.the.rotating.union.(5)
(see.Fig. ),.causing.the.rotating.union.(5).to.slip.from.the.motor.and.the.adapter.
. (10).to.come.away.from.the.limit.ring.(18).on.the.drive.head.(12).
Solution 1:
. ◆ Check.for.correct.fitting.of.the.bearing.capsule.(4).and.the.adapter.(10)..Use.a.
. self-locking.bolt.to.secure.the.bearing.capsule.(4).to.the.rotating.union.(5).and.
. remount.the.motor.in.accordance.with.the.information.on.pages.36.-.41.
Possible cause 2:
. ◆ The.thermal.protection.system.has.triggered.
Solution 2:
. ◆ Wait.approx..20.minutes.until.the.motor.has.cooled.down.
...The roller shutters stop during upward or downward travel?
Possible cause:
. ◆ Iced-up.roller.shutters.or.obstacle.on.the.guide.rail.
Solution:
. ◆ Move.the.roller.shutters.a.short.distance.in.the.respective.opposite.direction.
. ◆ Rectify.iced-up.roller.shutters.or.obstacle.
