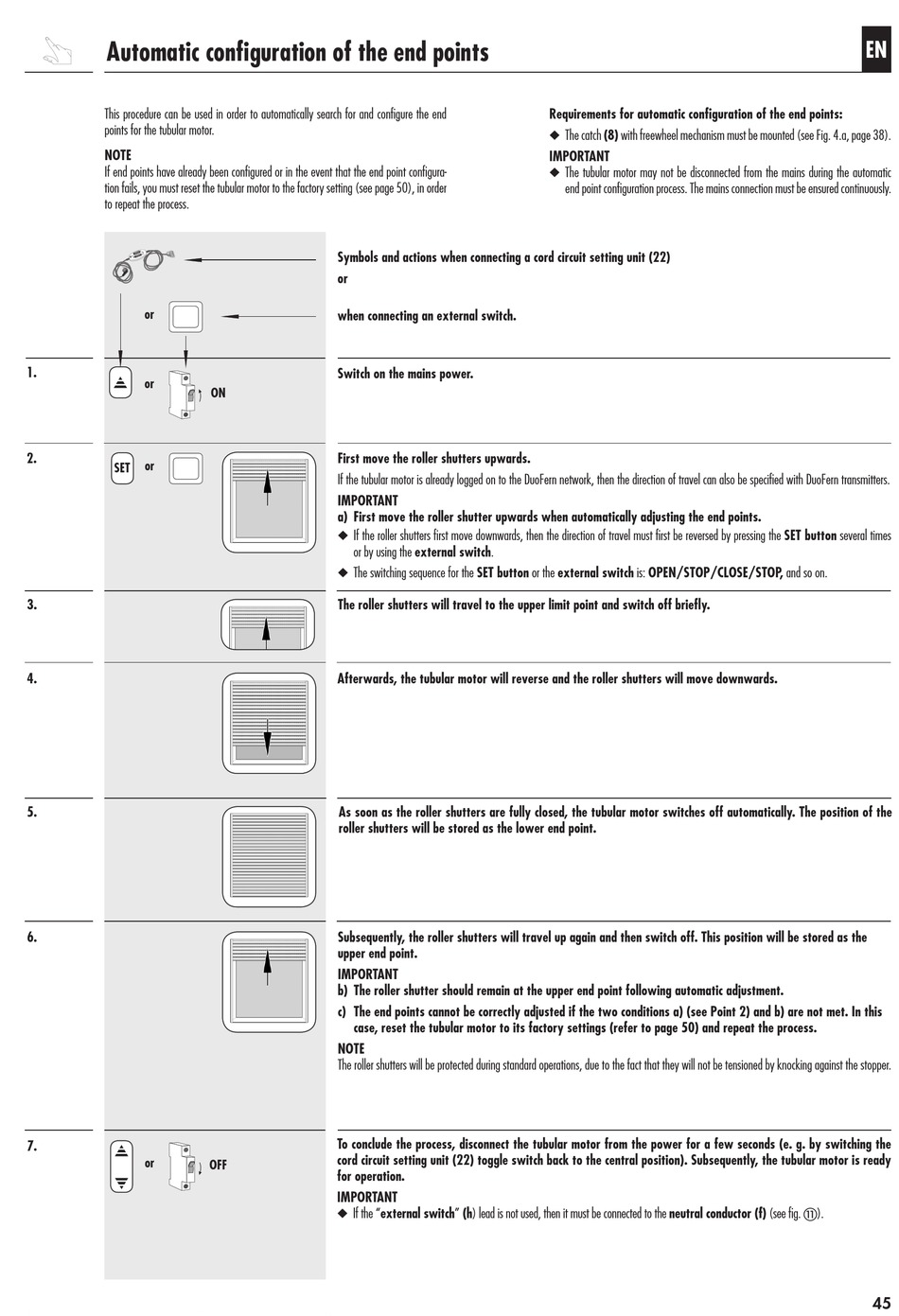

Automatic configuration of the end points
This.procedure.can.be.used.in.order.to.automatically.search.for.and.configure.the.end.
points.for.the.tubular.motor.
NOTE
If.end.points.have.already.been.configured.or.in.the.event.that.the.end.point.configura-
tion.fails,.you.must.reset.the.tubular.motor.to.the.factory.setting.(see.page.50),.in.order.
to.repeat.the.process.
or
1.
or
2.
or
SET
3.
4.
5.
6.
7.
or
Symbols and actions when connecting a cord circuit setting unit (22)
or
when connecting an external switch.
Switch on the mains power.
ON
First move the roller shutters upwards.
If.the.tubular.motor.is.already.logged.on.to.the.DuoFern.network,.then.the.direction.of.travel.can.also.be.specified.with.DuoFern.transmitters.
IMPORTANT
a) First move the roller shutter upwards when automatically adjusting the end points. .
. ◆ If.the.roller.shutters.first.move.downwards,.then.the.direction.of.travel.must.first.be.reversed.by.pressing.the.SET button.several.times.
. or.by.using.the.external switch...
. ◆ The.switching.sequence.for.the.SET button.or.the.external switch.is:.OPEN/STOP/CLOSE/STOP,.and.so.on.
The roller shutters will travel to the upper limit point and switch off briefly.
Afterwards, the tubular motor will reverse and the roller shutters will move downwards.
As soon as the roller shutters are fully closed, the tubular motor switches off automatically. The position of the
roller shutters will be stored as the lower end point.
Subsequently, the roller shutters will travel up again and then switch off. This position will be stored as the
upper end point.
IMPORTANT
b). The roller shutter should remain at the upper end point following automatic adjustment.
c) The end points cannot be correctly adjusted if the two conditions a) (see Point 2) and b) are not met. In this
case, reset the tubular motor to its factory settings (refer to page 50) and repeat the process.
NOTE
The.roller.shutters.will.be.protected.during.standard.operations,.due.to.the.fact.that.they.will.not.be.tensioned.by.knocking.against.the.stopper.
To conclude the process, disconnect the tubular motor from the power for a few seconds (e. g. by switching the
cord circuit setting unit (22) toggle switch back to the central position). Subsequently, the tubular motor is ready
OFF
for operation.
IMPORTANT
. ◆ If.the."external switch" (h).lead.is.not.used,.then.it.must.be.connected.to.the.neutral conductor (f).(see.fig..k).
Requirements for automatic configuration of the end points:
. ◆ The.catch.(8).with.freewheel.mechanism.must.be.mounted.(see.Fig..4.a,.page.38).
IMPORTANT
. ◆ The.tubular.motor.may.not.be.disconnected.from.the.mains.during.the.automatic. .
. end.point.configuration.process..The.mains.connection.must.be.ensured.continuously.
EN
45
