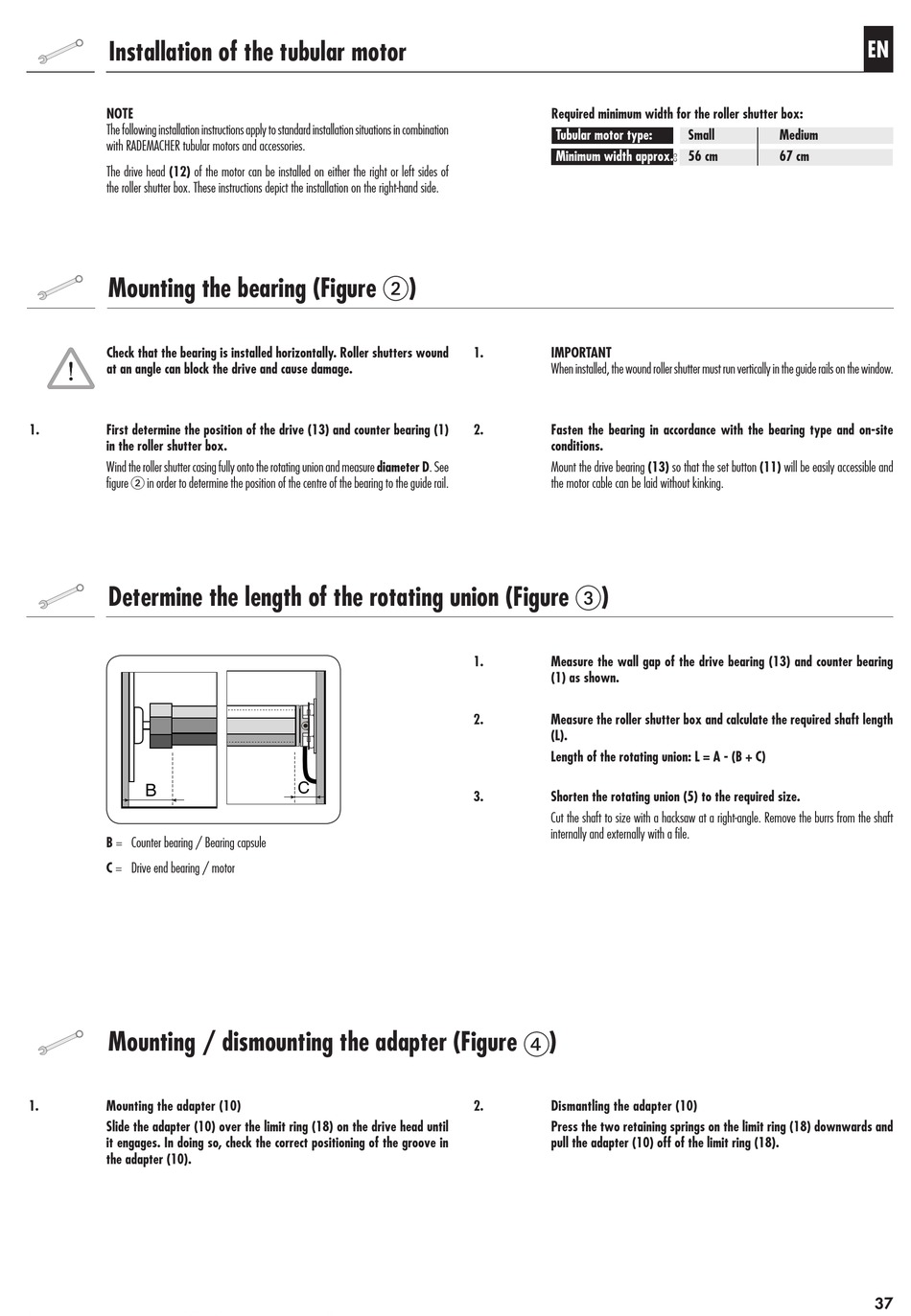

Installation of the tubular motor
NOTE
The.following.installation.instructions.apply.to.standard.installation.situations.in.combination.
with.RADEMACHER.tubular.motors.and.accessories.
The.drive.head.(12).of.the.motor.can.be.installed.on.either.the.right.or.left.sides.of.
the.roller.shutter.box..These.instructions.depict.the.installation.on.the.right-hand.side.
Mounting the bearing (Figure  )
Check that the bearing is installed horizontally. Roller shutters wound
at an angle can block the drive and cause damage.
1. First determine the position of the drive (13) and counter bearing (1)
in the roller shutter box.
Wind.the.roller.shutter.casing.fully.onto.the.rotating.union.and.measure.diameter D..See.
figure.  .in.order.to.determine.the.position.of.the.centre.of.the.bearing.to.the.guide.rail.
Determine the length of the rotating union (Figure  )
B
B =. Counter.bearing./.Bearing.capsule
C =. Drive.end.bearing./.motor
Mounting / dismounting the adapter (Figure )
1. Mounting the adapter (10)
Slide the adapter (10) over the limit ring (18) on the drive head until
it engages. In doing so, check the correct positioning of the groove in
the adapter (10).
C
Required minimum width for the roller shutter box:
Tubular motor type:
Minimum width approx.: 56 cm
1.
IMPORTANT
When.installed,.the.wound.roller.shutter.must.run.vertically.in.the.guide.rails.on.the.window.
2. Fasten the bearing in accordance with the bearing type and on-site
conditions.
Mount.the.drive.bearing.(13).so.that.the.set.button.(11).will.be.easily.accessible.and.
the.motor.cable.can.be.laid.without.kinking.
1. Measure the wall gap of the drive bearing (13) and counter bearing
(1) as shown.
2. Measure the roller shutter box and calculate the required shaft length
(L).
Length of the rotating union: L = A - (B + C)
3. Shorten the rotating union (5) to the required size.
Cut.the.shaft.to.size.with.a.hacksaw.at.a.right-angle..Remove.the.burrs.from.the.shaft.
internally.and.externally.with.a.file.
2. Dismantling the adapter (10)
Press the two retaining springs on the limit ring (18) downwards and
pull the adapter (10) off of the limit ring (18).
Small Medium
67 cm
EN
37
