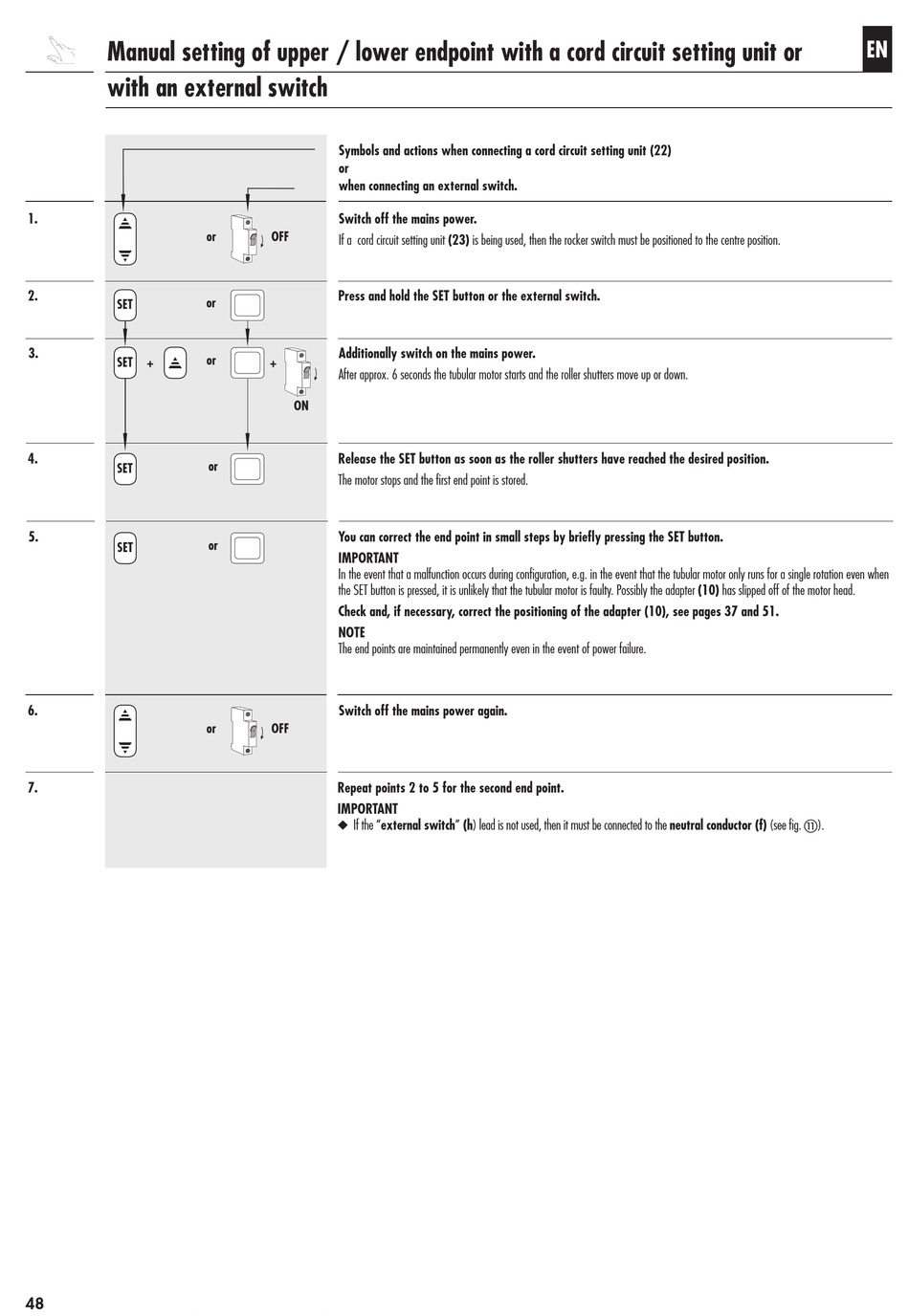

Manual setting of upper / lower endpoint with a cord circuit setting unit or
with an external switch
1.
2.
SET
3.
SET +
4.
SET
5.
SET
6.
7.
48
Symbols and actions when connecting a cord circuit setting unit (22)
or
when connecting an external switch.
Switch off the mains power.
or OFF
If.a..cord.circuit.setting.unit.(23).is.being.used,.then.the.rocker.switch.must.be.positioned.to.the.centre.position.
Press and hold the SET button or the external switch.
or
Additionally switch on the mains power.
or
+
After.approx..6.seconds.the.tubular.motor.starts.and.the.roller.shutters.move.up.or.down.
ON
Release the SET button as soon as the roller shutters have reached the desired position.
or
The.motor.stops.and.the.first.end.point.is.stored.
You can correct the end point in small steps by briefly pressing the SET button.
or
IMPORTANT
In.the.event.that.a.malfunction.occurs.during.configuration,.e.g..in.the.event.that.the.tubular.motor.only.runs.for.a.single.rotation.even.when.
the.SET.button.is.pressed,.it.is.unlikely.that.the.tubular.motor.is.faulty..Possibly.the.adapter.(10).has.slipped.off.of.the.motor.head.
Check and, if necessary, correct the positioning of the adapter (10), see pages 37 and 51.
NOTE
The.end.points.are.maintained.permanently.even.in.the.event.of.power.failure.
Switch off the mains power again.
or OFF
Repeat points 2 to 5 for the second end point.
IMPORTANT
. ◆ If.the."external switch" (h).lead.is.not.used,.then.it.must.be.connected.to.the.neutral conductor (f).(see.fig..k).
