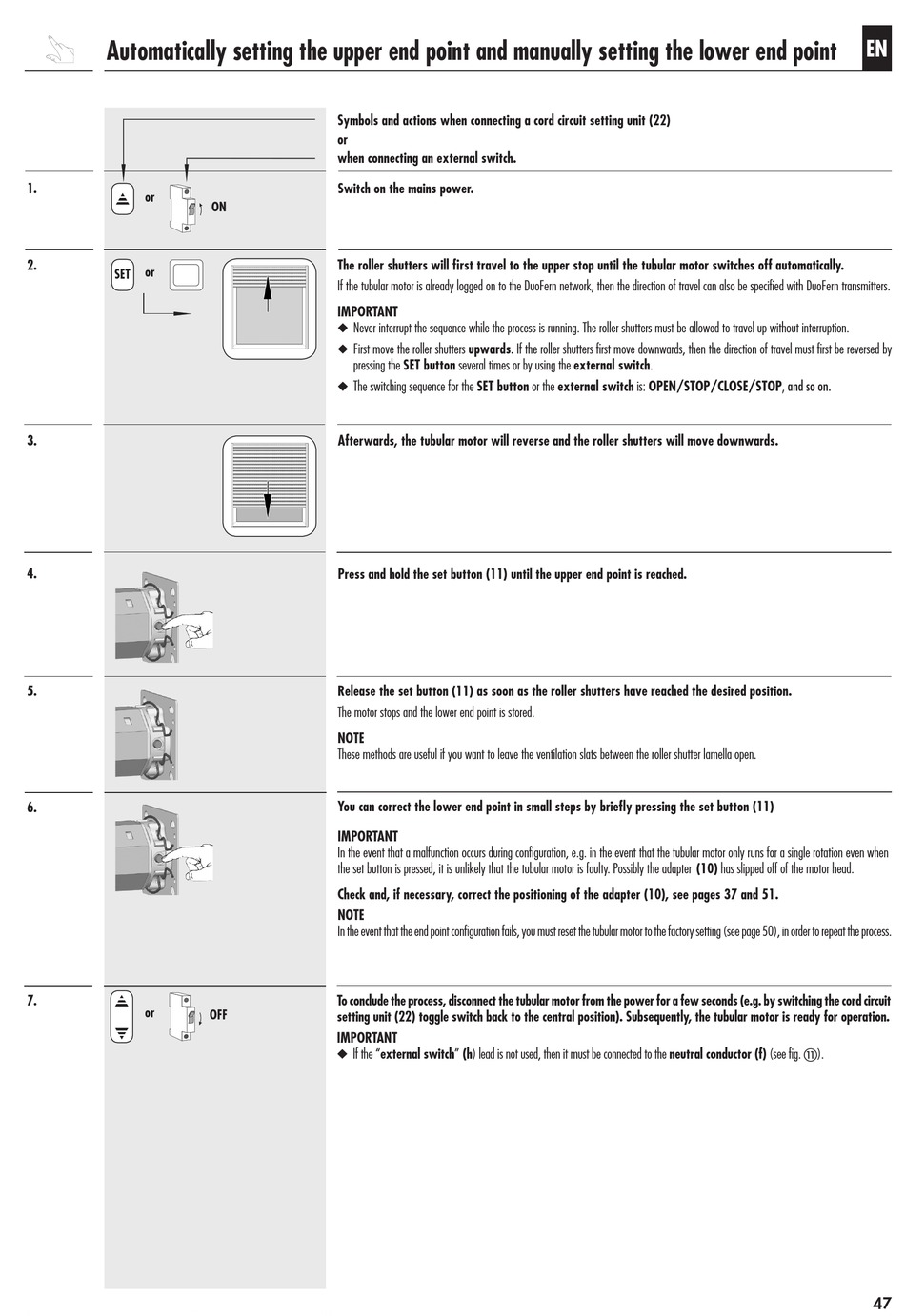

Automatically setting the upper end point and manually setting the lower end point
1.
or
2.
or
SET
3.
4.
5.
6.
7.
or
Symbols and actions when connecting a cord circuit setting unit (22)
or
when connecting an external switch.
Switch on the mains power.
ON
The roller shutters will first travel to the upper stop until the tubular motor switches off automatically.
If.the.tubular.motor.is.already.logged.on.to.the.DuoFern.network,.then.the.direction.of.travel.can.also.be.specified.with.DuoFern.transmitters.
IMPORTANT
. ◆ Never.interrupt.the.sequence.while.the.process.is.running..The.roller.shutters.must.be.allowed.to.travel.up.without.interruption.
. ◆ First.move.the.roller.shutters upwards..If.the.roller.shutters.first.move.downwards,.then.the.direction.of.travel.must.first.be.reversed.by.
. pressing.the.SET button.several.times.or.by.using.the.external switch..
. ◆ The.switching.sequence.for.the.SET button.or.the.external switch.is:.OPEN/STOP/CLOSE/STOP, and so on.
Afterwards, the tubular motor will reverse and the roller shutters will move downwards.
Press and hold the set button (11) until the upper end point is reached.
Release the set button (11) as soon as the roller shutters have reached the desired position.
The.motor.stops.and.the.lower.end.point.is.stored.
NOTE
These.methods.are.useful.if.you.want.to.leave.the.ventilation.slats.between.the.roller.shutter.lamella.open..
You can correct the lower end point in small steps by briefly pressing the set button (11)
IMPORTANT
In.the.event.that.a.malfunction.occurs.during.configuration,.e.g..in.the.event.that.the.tubular.motor.only.runs.for.a.single.rotation.even.when.
the.set.button.is.pressed,.it.is.unlikely.that.the.tubular.motor.is.faulty..Possibly.the.adapter (10).has.slipped.off.of.the.motor.head.
Check and, if necessary, correct the positioning of the adapter (10), see pages 37 and 51.
NOTE
In.the.event.that.the.end.point.configuration.fails,.you.must.reset.the.tubular.motor.to.the.factory.setting.(see.page.50),.in.order.to.repeat.the.process.
To conclude the process, disconnect the tubular motor from the power for a few seconds (e.g. by switching the cord circuit
OFF
setting unit (22) toggle switch back to the central position). Subsequently, the tubular motor is ready for operation.
IMPORTANT
. ◆ If.the."external switch" (h).lead.is.not.used,.then.it.must.be.connected.to.the.neutral conductor (f).(see.fig..k).
