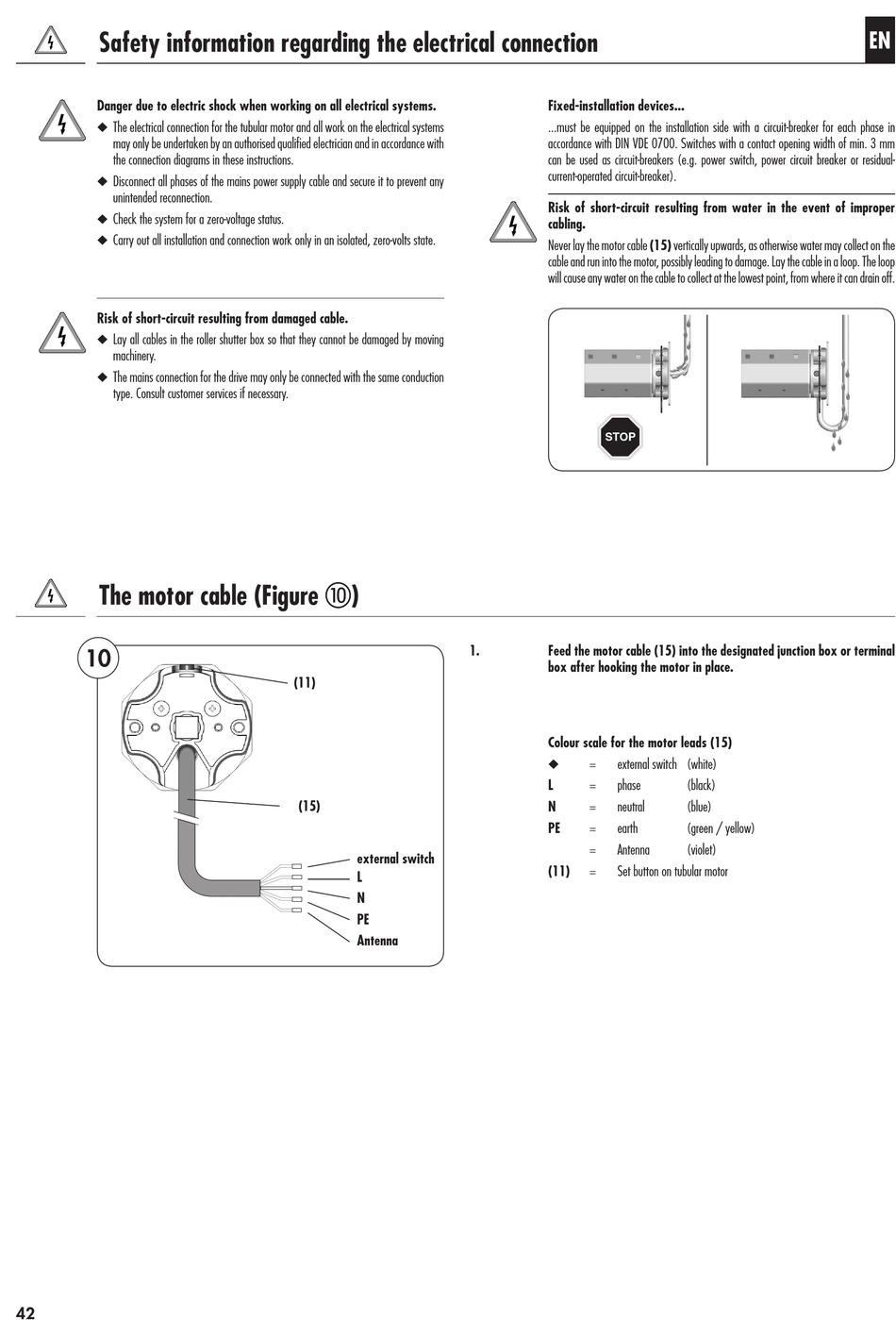

Safety information regarding the electrical connection
Danger due to electric shock when working on all electrical systems.
. ◆ The.electrical.connection.for.the.tubular.motor.and.all.work.on.the.electrical.systems. .
. may.only.be.undertaken.by.an.authorised.qualified.electrician.and.in.accordance.with. .
. the.connection.diagrams.in.these.instructions.
. ◆ Disconnect.all.phases.of.the.mains.power.supply.cable.and.secure.it.to.prevent.any. .
. unintended.reconnection.
. ◆ Check.the.system.for.a.zero-voltage.status.
. ◆ Carry.out.all.installation.and.connection.work.only.in.an.isolated,.zero-volts.state.
Risk of short-circuit resulting from damaged cable.
. ◆ Lay.all.cables.in.the.roller.shutter.box.so.that.they.cannot.be.damaged.by.moving. .
. machinery.
. ◆ The.mains.connection.for.the.drive.may.only.be.connected.with.the.same.conduction. .
. type..Consult.customer.services.if.necessary.
The motor cable (Figure j )
10
42
(11)
(15)
external switch
L
N
PE
Antenna
Fixed-installation devices...
...must. be. equipped. on. the. installation. side. with. a. circuit-breaker. for. each. phase. in.
accordance.with.DIN.VDE.0700..Switches.with.a.contact.opening.width.of.min..3.mm.
can.be.used.as.circuit-breakers.(e.g..power.switch,.power.circuit.breaker.or.residual-
current-operated.circuit-breaker).
Risk of short-circuit resulting from water in the event of improper
cabling.
Never.lay.the.motor.cable.(15).vertically.upwards,.as.otherwise.water.may.collect.on.the.
cable.and.run.into.the.motor,.possibly.leading.to.damage..Lay.the.cable.in.a.loop..The.loop.
will.cause.any.water.on.the.cable.to.collect.at.the.lowest.point,.from.where.it.can.drain.off.
STOP
1.
Feed the motor cable (15) into the designated junction box or terminal
box after hooking the motor in place.
Colour scale for the motor leads (15)
◆. .
=.
external.switch.. (white)
L. .
=.
phase.
N. .
=.
neutral.
PE. .
=.
earth.
.
.
=.
Antenna.
(11).. =..
Set.button.on.tubular.motor
(black)
(blue)
(green./.yellow)
(violet)
EN
