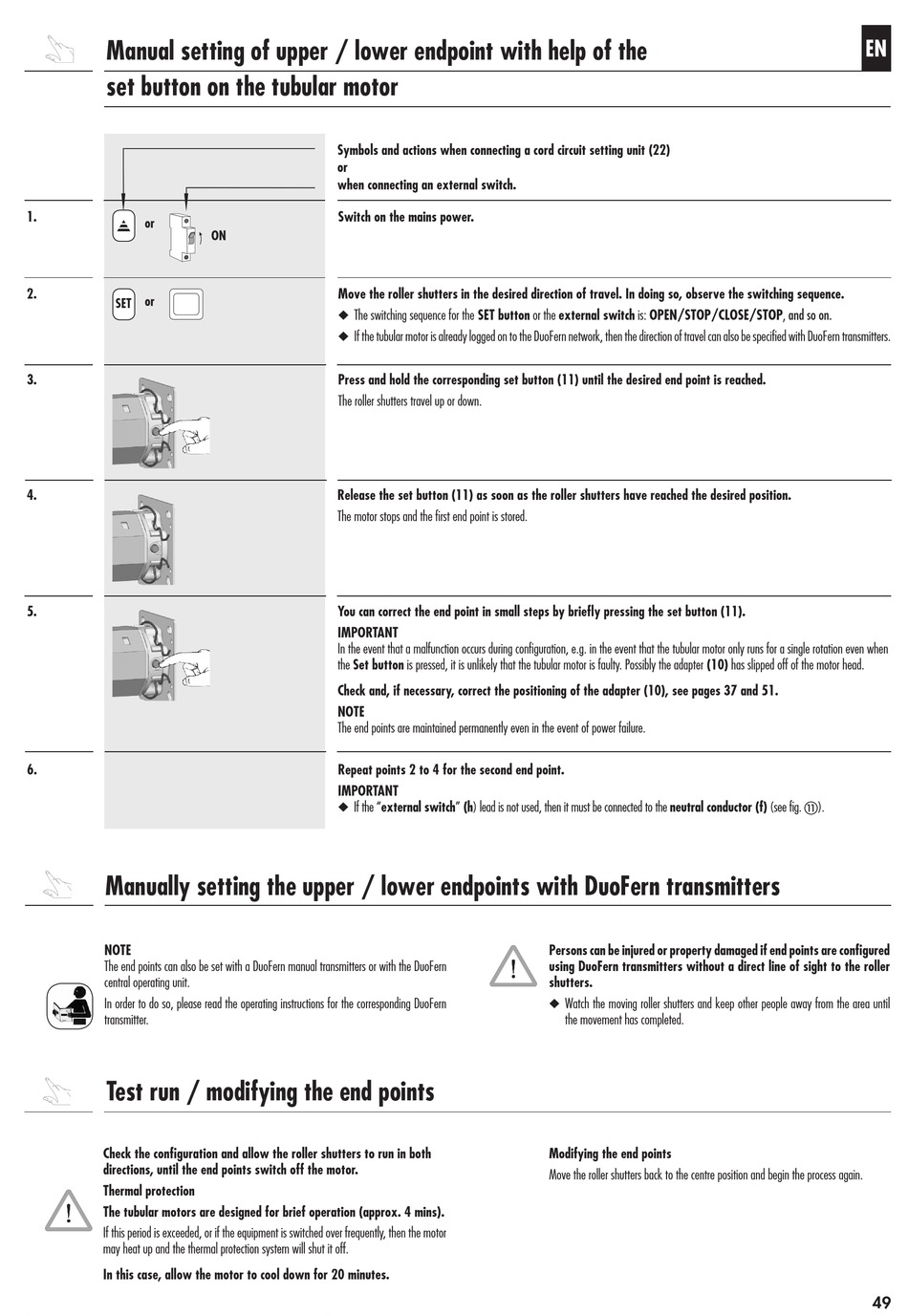

Manual setting of upper / lower endpoint with help of the
set button on the tubular motor
1.
or
2.
SET or
3.
4.
5.
6.
Manually setting the upper / lower endpoints with DuoFern transmitters
NOTE
The.end.points.can.also.be.set.with.a.DuoFern.manual.transmitters.or.with.the.DuoFern.
central.operating.unit...
In.order.to.do.so,.please.read.the.operating.instructions.for.the.corresponding.DuoFern.
transmitter.
Test run / modifying the end points
Check the configuration and allow the roller shutters to run in both
directions, until the end points switch off the motor.
Thermal protection
The tubular motors are designed for brief operation (approx. 4 mins).
If.this.period.is.exceeded,.or.if.the.equipment.is.switched.over.frequently,.then.the.motor.
may.heat.up.and.the.thermal.protection.system.will.shut.it.off..
In this case, allow the motor to cool down for 20 minutes.
Symbols and actions when connecting a cord circuit setting unit (22)
or
when connecting an external switch.
Switch on the mains power.
ON
Move the roller shutters in the desired direction of travel. In doing so, observe the switching sequence.
. ◆ The.switching.sequence.for.the SET button.or.the.external switch.is:.OPEN/STOP/CLOSE/STOP, and so on.
. ◆ If.the.tubular.motor.is.already.logged.on.to.the.DuoFern.network,.then.the.direction.of.travel.can.also.be.specified.with.DuoFern.transmitters.
Press and hold the corresponding set button (11) until the desired end point is reached.
The.roller.shutters.travel.up.or.down.
Release the set button (11) as soon as the roller shutters have reached the desired position.
The.motor.stops.and.the.first.end.point.is.stored.
You can correct the end point in small steps by briefly pressing the set button (11).
IMPORTANT
In.the.event.that.a.malfunction.occurs.during.configuration,.e.g..in.the.event.that.the.tubular.motor.only.runs.for.a.single.rotation.even.when.
the.Set button.is.pressed,.it.is.unlikely.that.the.tubular.motor.is.faulty..Possibly.the.adapter (10).has.slipped.off.of.the.motor.head.
Check and, if necessary, correct the positioning of the adapter (10), see pages 37 and 51.
NOTE
The.end.points.are.maintained.permanently.even.in.the.event.of.power.failure.
Repeat points 2 to 4 for the second end point.
IMPORTANT
. ◆ If.the."external switch" (h).lead.is.not.used,.then.it.must.be.connected.to.the.neutral conductor (f).(see.fig..k).
Persons can be injured or property damaged if end points are configured
using DuoFern transmitters without a direct line of sight to the roller
shutters.
. ◆ Watch.the.moving.roller.shutters.and.keep.other.people.away.from.the.area.until. .
. the.movement.has.completed.
Modifying the end points
Move.the.roller.shutters.back.to.the.centre.position.and.begin.the.process.again.
