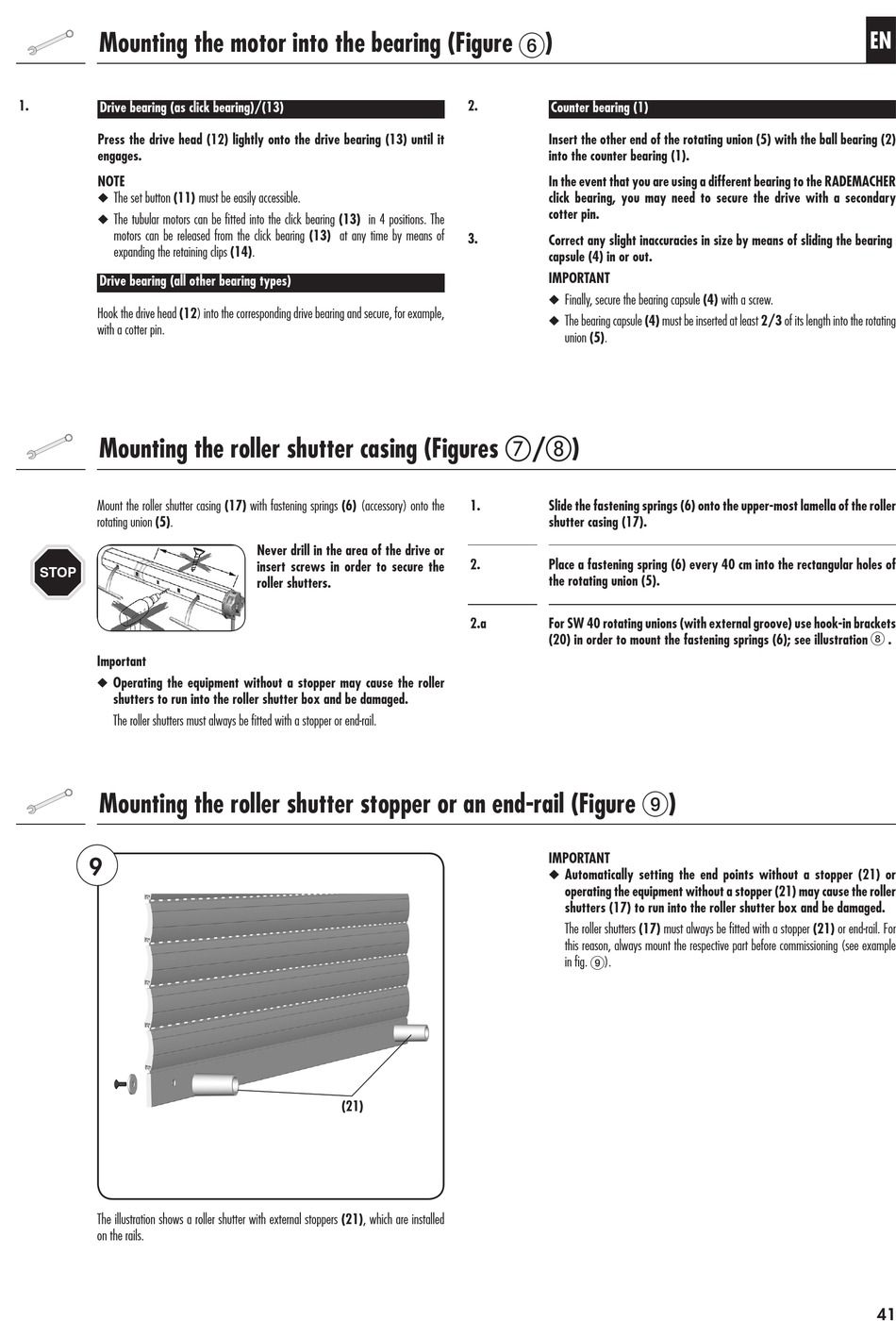

Mounting the motor into the bearing (Figure )
1.
Drive bearing (as click bearing)/(13)
Press the drive head (12) lightly onto the drive bearing (13) until it
engages.
NOTE
. ◆ The.set.button.(11) must.be.easily.accessible.
. ◆ The.tubular.motors.can.be.fitted.into.the.click.bearing.(13)..in.4.positions..The.
. motors. can. be. released. from. the. click. bearing. (13). . at. any. time. by. means. of.
. expanding.the.retaining.clips.(14).
Drive bearing (all other bearing types)
Hook.the.drive.head.(12).into.the.corresponding.drive.bearing.and.secure,.for.example,.
with.a.cotter.pin.
Mounting the roller shutter casing (Figures g / h )
Mount.the.roller.shutter.casing.(17).with.fastening.springs.(6) (accessory).onto.the.
rotating.union.(5).
STOP
Important
◆ Operating the equipment without a stopper may cause the roller
shutters to run into the roller shutter box and be damaged.
. The.roller.shutters.must.always.be.fitted.with.a.stopper.or.end-rail.
Mounting the roller shutter stopper or an end-rail (Figure 9 )
9
The.illustration.shows.a.roller.shutter.with.external.stoppers.(21),.which.are.installed.
on.the.rails..
Never drill in the area of the drive or
insert screws in order to secure the
roller shutters.
(21)
2.
Counter bearing (1)
Insert the other end of the rotating union (5) with the ball bearing (2)
into the counter bearing (1).
In the event that you are using a different bearing to the RADEMACHER
click bearing, you may need to secure the drive with a secondary
cotter pin.
3.
Correct any slight inaccuracies in size by means of sliding the bearing
capsule (4) in or out.
IMPORTANT
. ◆ Finally,.secure.the.bearing.capsule.(4).with.a.screw.
. ◆ The.bearing.capsule.(4).must.be.inserted.at.least.2/3.of.its.length.into.the.rotating.
. union.(5).
1. Slide the fastening springs (6) onto the upper-most lamella of the roller
shutter casing (17).
2. Place a fastening spring (6) every 40 cm into the rectangular holes of
the rotating union (5).
2.a For SW 40 rotating unions (with external groove) use hook-in brackets
(20) in order to mount the fastening springs (6); see illustration. 8 .
IMPORTANT
◆ Automatically setting the end points without a stopper (21) or
operating the equipment without a stopper (21) may cause the roller
shutters (17) to run into the roller shutter box and be damaged.
. The.roller.shutters.(17).must.always.be.fitted.with.a.stopper.(21).or.end-rail..For.
. this.reason,.always.mount.the.respective.part.before.commissioning.(see.example. .
. in.fig..9).
