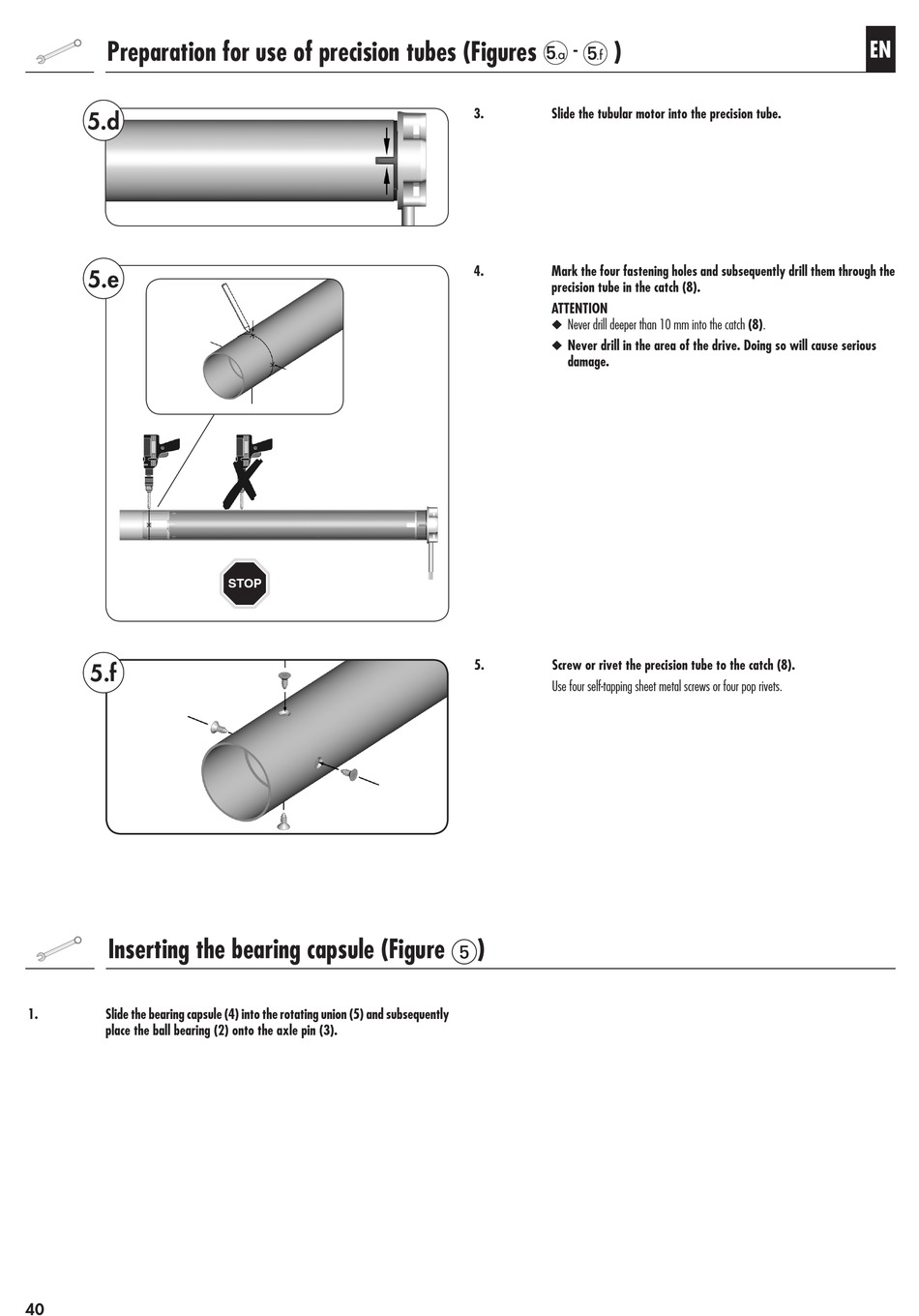

Preparation for use of precision tubes (Figures .-. )
5.d
5.e
5.f
Inserting the bearing capsule (Figure )
1. Slide the bearing capsule (4) into the rotating union (5) and subsequently
place the ball bearing (2) onto the axle pin (3).
40
STOP
3. Slide the tubular motor into the precision tube.
4. Mark the four fastening holes and subsequently drill them through the
precision tube in the catch (8).
ATTENTION
. ◆ Never.drill.deeper.than.10.mm.into.the.catch.(8).
◆ Never drill in the area of the drive. Doing so will cause serious
damage.
5. Screw or rivet the precision tube to the catch (8).
Use.four.self-tapping.sheet.metal.screws.or.four.pop.rivets.
EN
