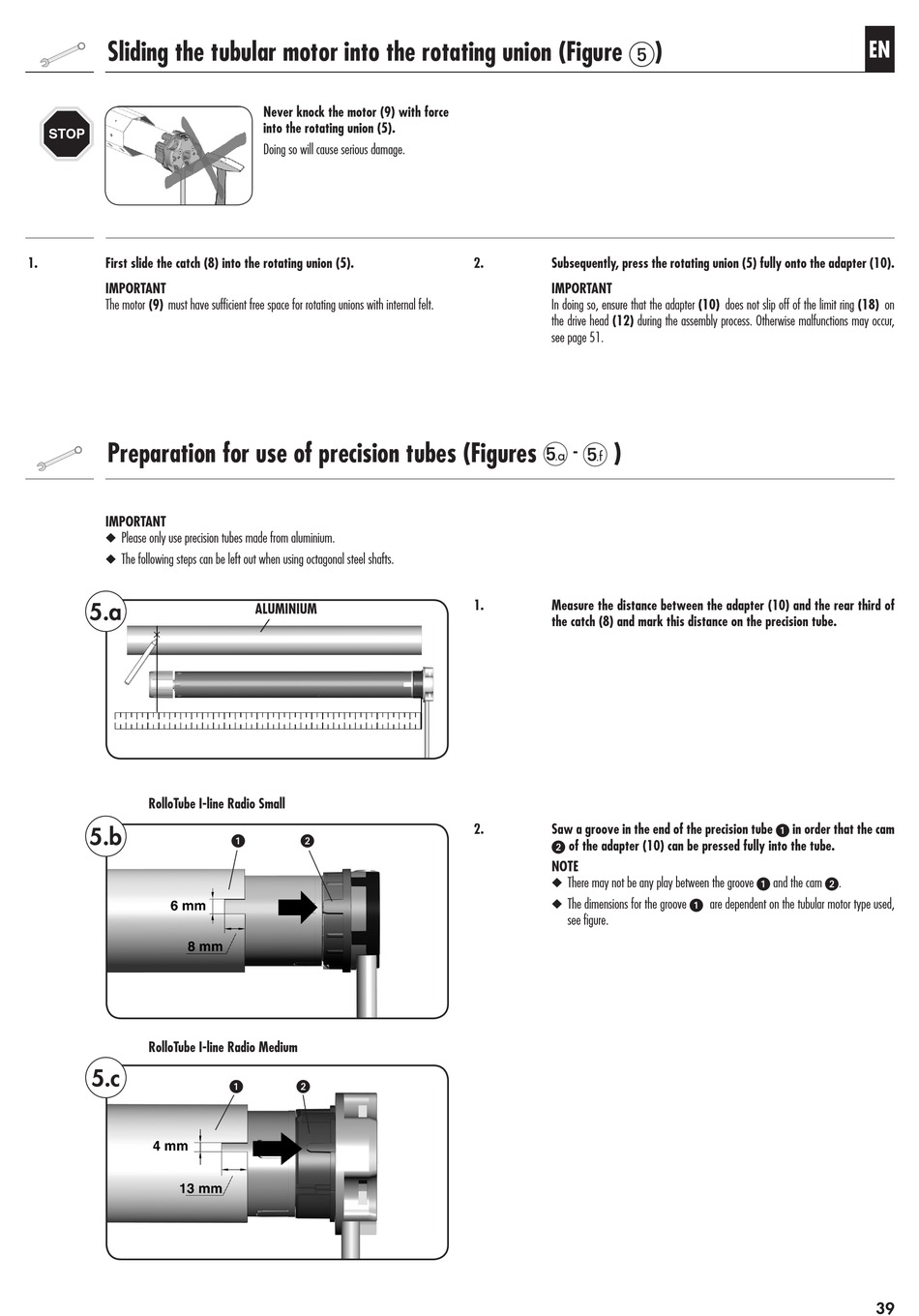

Sliding the tubular motor into the rotating union (Figure )
STOP
1. First slide the catch (8) into the rotating union (5).
IMPORTANT
The.motor (9) must.have.sufficient.free.space.for.rotating.unions.with.internal.felt.
Preparation for use of precision tubes (Figures .-. )
IMPORTANT
. ◆ Please.only.use.precision.tubes.made.from.aluminium.
. ◆ The.following.steps.can.be.left.out.when.using.octagonal.steel.shafts.
5.a
RolloTube I-line Radio Small
5.b
RolloTube I-line Radio Medium
5.c
Never knock the motor (9) with force
into the rotating union (5).
Doing.so.will.cause.serious.damage.
ALUMINIUM
1 
1 
2. Subsequently, press the rotating union (5) fully onto the adapter (10).
IMPORTANT
In.doing.so,.ensure.that.the.adapter.(10) does.not.slip.off.of.the.limit.ring.(18) on.
the.drive.head.(12).during.the.assembly.process..Otherwise.malfunctions.may.occur,.
see.page.51.
1. Measure the distance between the adapter (10) and the rear third of
the catch (8) and mark this distance on the precision tube.
2. Saw a groove in the end of the precision tube 1 in order that the cam
 of the adapter (10) can be pressed fully into the tube.
NOTE
. ◆ There.may.not.be.any.play.between.the.groove.1.and.the.cam..
. ◆ The.dimensions.for.the.groove.1 .are.dependent.on.the.tubular.motor.type.used,.
. see.figure.
EN
39
