Configuring tubular motors
The.tubular.motors.can.be.individually.configured.with.the.help.of.a.cord.circuit.setting.
unit.(22).
The following configurations are possible.
. ◆ Reload.the.factory.settings.
Loading factory settings during the commissioning process
Automatic. end. point. configuration. is. available. again. once. the. factory. settings. have.
been.loaded.
NOTE
We.recommend.undertaking.these.settings.with.two.persons.
IMPORTANT
The tubular motor must previously have been disconnected from the
power.
1.
2. A.
3.
4.
5.
50

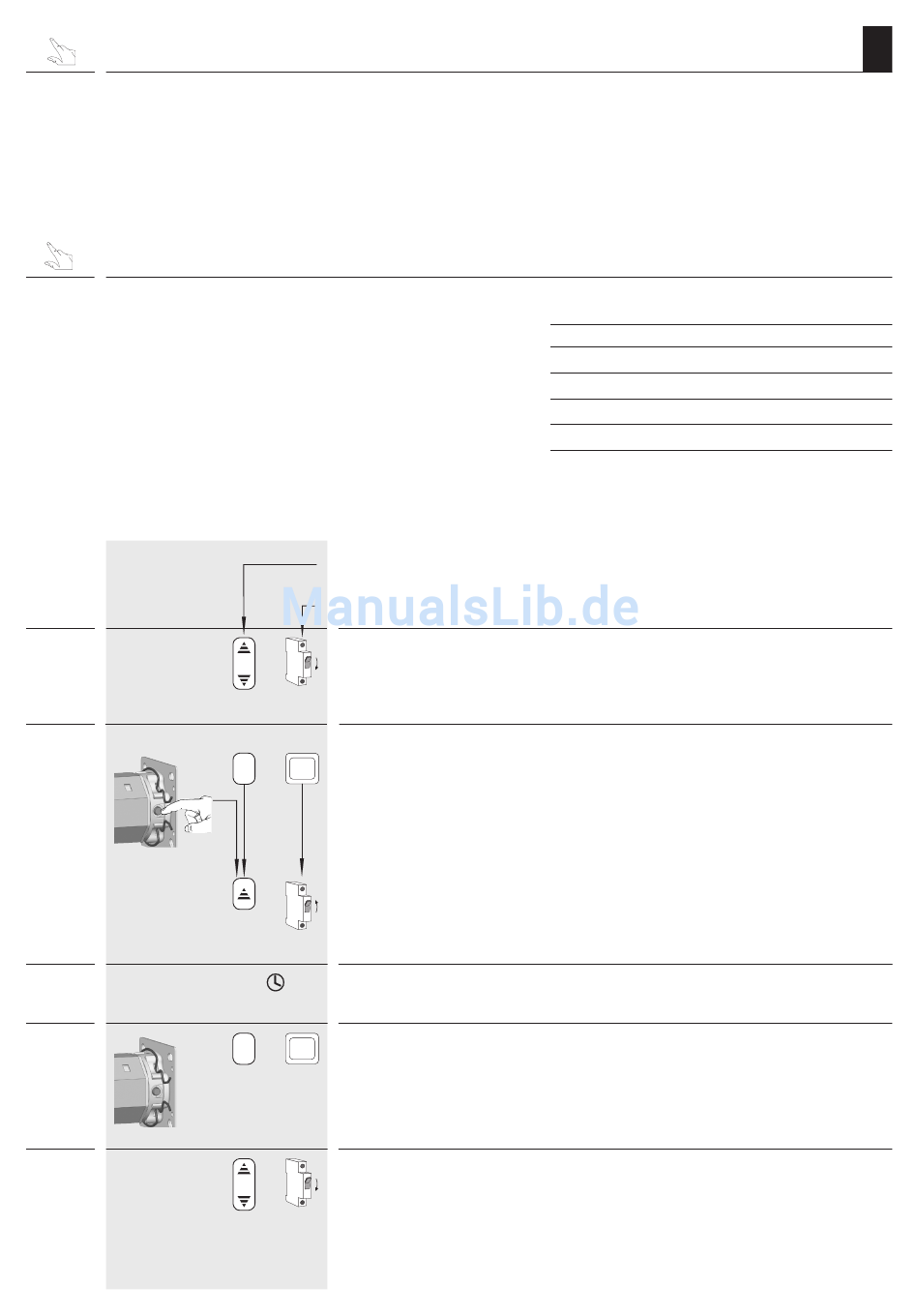

Symbols and actions when connecting a cord circuit setting unit (22)
or
when connecting an external switch.
Switch off the mains power.
or
If.a..cord.circuit.setting.unit.(22).is.being.used,.then.the.rocker.switch.must.be.positioned.to.the.centre.position.
OFF
+ B. First press and hold the set button (11) on the tubular motor and subsequently press and hold the SET button on
the cord circuit setting device (22) (possibly a second person carries this out).
or
SET
Additionally switch on the mains power. Hold all buttons.
or
ON
After approx. 10 seconds the tubular motor acknowledges loading of the factory settings by briefly running up
10 s
and down.
Release the set button (11) on the tubular motor and the SET button (or the external switch, if connected).
or
SET
Switch off the mains power again.
or
OFF
NOTE
Additional.settings.can.be.undertaken.with.the.optionally.available.RT.ConfigTool..Please.
refer.to.the.information.on.our.Website.(www.rademacher.de).
Factory settings:
End.points:. . . No.end.points.stored
Automatic.adjustment.of.the.end.points:. activated
Reversing.after.obstacle.detection:. activated
Reversing.after.blockage.detection:. activated
Shutter.length.compensation.system:. activated
