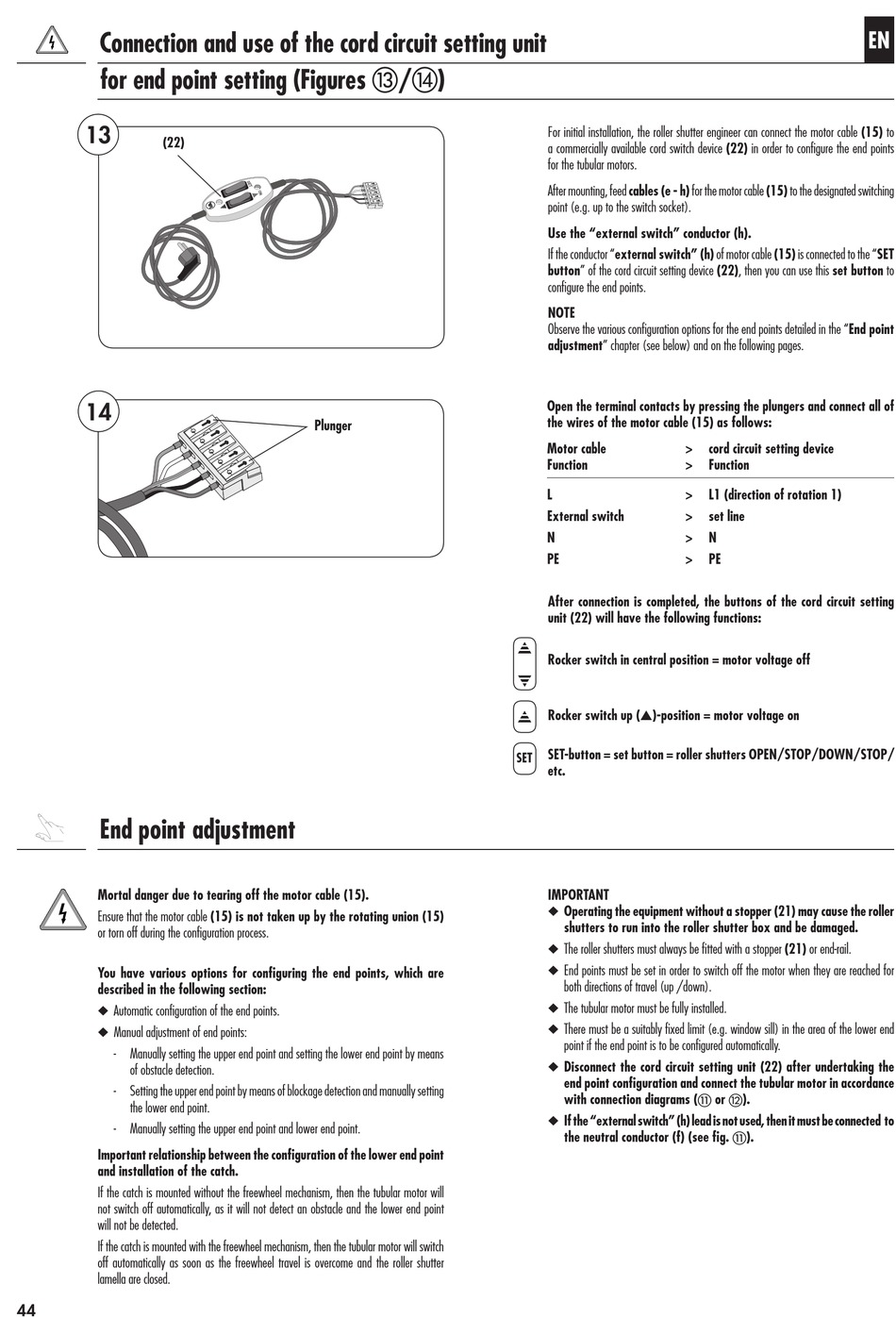

Connection and use of the cord circuit setting unit
for end point setting (Figures m / n )
13
(22)
14
End point adjustment
Mortal danger due to tearing off the motor cable (15).
Ensure.that.the.motor.cable.(15) is not taken up by the rotating union (15).
or.torn.off.during.the.configuration.process.
You have various options for configuring the end points, which are
described in the following section:
. ◆ Automatic.configuration.of.the.end.points.
. ◆ Manual.adjustment.of.end.points:
. -. Manually.setting.the.upper.end.point.and.setting.the.lower.end.point.by.means. .
. . of.obstacle.detection.
. -. Setting.the.upper.end.point.by.means.of.blockage.detection.and.manually.setting. .
. . the.lower.end.point.
. -.. Manually.setting.the.upper.end.point.and.lower.end.point.
Important relationship between the configuration of the lower end point
and installation of the catch.
If.the.catch.is.mounted.without.the.freewheel.mechanism,.then.the.tubular.motor.will.
not.switch.off.automatically,.as.it.will.not.detect.an.obstacle.and.the.lower.end.point.
will.not.be.detected.
If.the.catch.is.mounted.with.the.freewheel.mechanism,.then.the.tubular.motor.will.switch.
off. automatically. as. soon. as. the. freewheel. travel. is. overcome. and. the. roller. shutter.
lamella.are.closed.
44
Plunger
For.initial.installation,.the.roller.shutter.engineer.can.connect.the.motor.cable.(15).to.
a.commercially.available.cord.switch.device.(22).in.order.to.configure.the.end.points.
for.the.tubular.motors..
After.mounting,.feed.cables (e - h).for.the.motor.cable.(15).to.the.designated.switching.
point.(e.g..up.to.the.switch.socket).
Use the "external switch" conductor (h).
If.the.conductor."external switch" (h).of.motor.cable.(15).is.connected.to.the."SET
button".of.the.cord.circuit.setting.device.(22),.then.you.can.use.this.set button.to.
configure.the.end.points...
NOTE
Observe.the.various.configuration.options.for.the.end.points.detailed.in.the."End point
adjustment".chapter.(see.below).and.on.the.following.pages.
Open the terminal contacts by pressing the plungers and connect all of
the wires of the motor cable (15) as follows:
Motor cable > cord circuit setting device
Function > Function
L > L1 (direction of rotation 1)
External switch > set line
N > N
PE > PE
After connection is completed, the buttons of the cord circuit setting
unit (22) will have the following functions:
Rocker switch in central position = motor voltage off
Rocker switch up (s)-position = motor voltage on
SET-button = set button = roller shutters OPEN/STOP/DOWN/STOP/
SET
etc.
IMPORTANT
◆ Operating the equipment without a stopper (21) may cause the roller
shutters to run into the roller shutter box and be damaged. .
. ◆ The.roller.shutters.must.always.be.fitted.with.a.stopper.(21).or.end-rail.
. ◆ End.points.must.be.set.in.order.to.switch.off.the.motor.when.they.are.reached.for. .
. both.directions.of.travel.(up./down).
. ◆ The.tubular.motor.must.be.fully.installed.
. ◆ There.must.be.a.suitably.fixed.limit.(e.g..window.sill).in.the.area.of.the.lower.end. .
. point.if.the.end.point.is.to.be.configured.automatically.
◆ Disconnect the cord circuit setting unit (22) after undertaking the
end point configuration and connect the tubular motor in accordance
with connection diagrams (k or l).
◆ If the "external switch" (h) lead is not used, then it must be connected to
the neutral conductor (f) (see fig. k).
