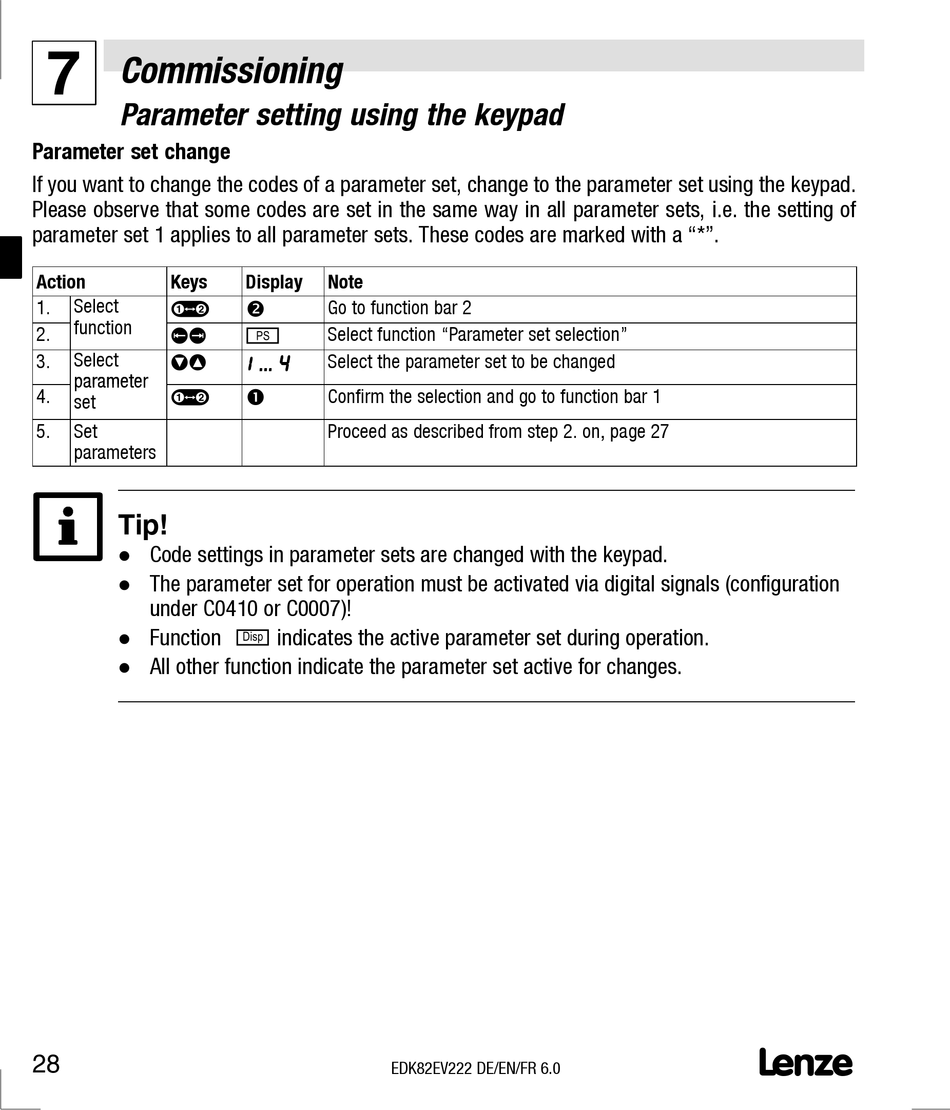

Commissioning
7
Parameter setting using the keypad
Parameter set change
If you want to change the codes of a parameter set, change to the parameter set using the keypad.
Please observe that some codes are set in the same way in all parameter sets, i.e. the setting of
parameter set 1 applies to all parameter sets. These codes are marked with a "*".
Action Keys
Select Select
t
1.
function f ti
wx
2.
Select yz
3.
parameter parameter
t
4.
set
5. Set
parameters
Tip!
Code settings in parameter sets are changed with the keypad.
l
The parameter set for operation must be activated via digital signals (configuration
l
under C0410 or C0007)!
Function g indicates the active parameter set during operation.
l
All other function indicate the parameter set active for changes.
l
28
Display Note

Go to function bar 2
m
Select function "Parameter set selection"
Select the parameter set to be changed
1 1 1 1 . . . . . . . . . . . . 4 4 4 4
Œ
Confirm the selection and go to function bar 1
Proceed as described from step 2. on, page 27
EDK82EV222 DE/EN/FR 6.0
