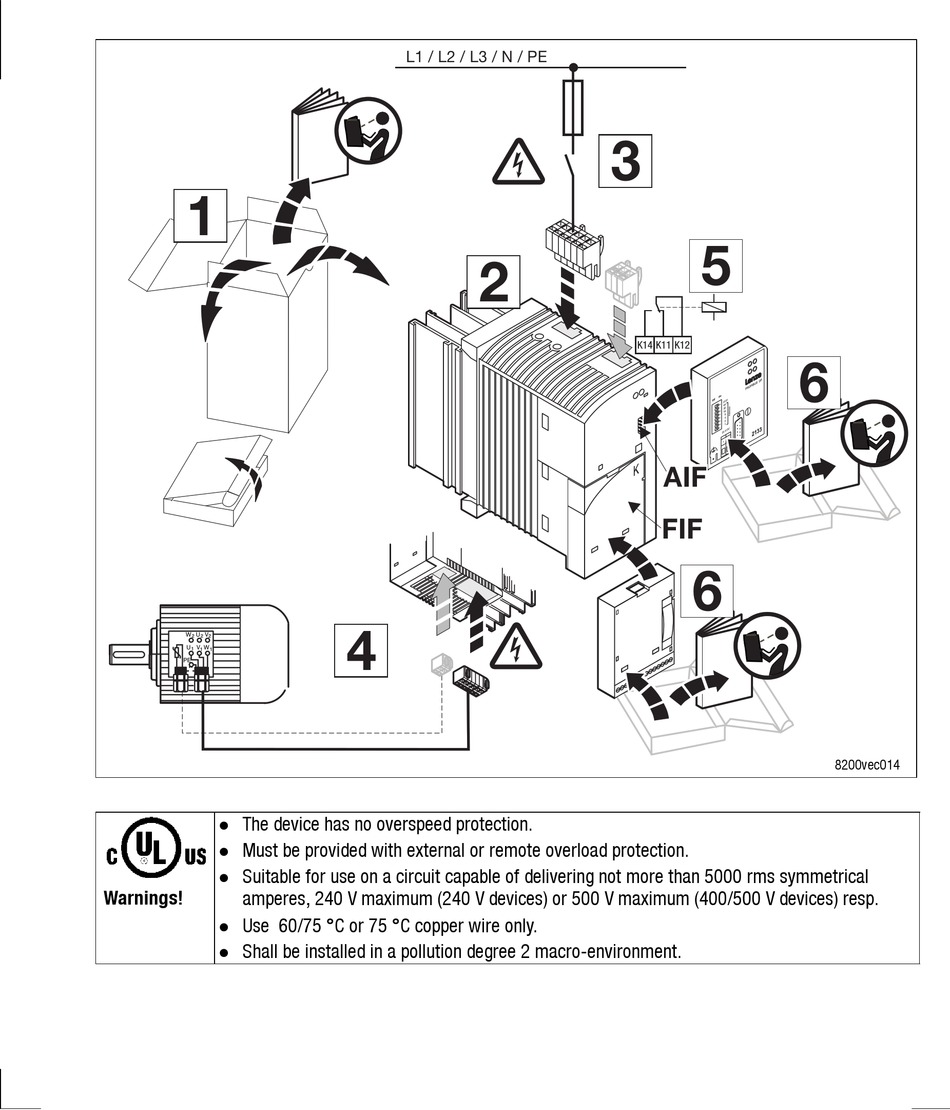

Lenze 8200 vector Montageanleitung Seite 3

Show/Hide Bookmarks
1
W U V
2
2 2
U V W
1
1 1
PE
Warnings!
4
The device has no overspeed protection.
l
Must be provided with external or remote overload protection.
l
Suitable for use on a circuit capable of delivering not more than 5000 rms symmetrical
l
amperes, 240 V maximum (240 V devices) or 500 V maximum (400/500 V devices) resp.
Use 60/75 °C or 75 °C copper wire only.
l
Shall be installed in a pollution degree 2 macro-environment.
l
L1 / L2 / L3 / N / PE
2
3
5
K14 K11 K12
AIF
FIF
6
6
8200vec014
