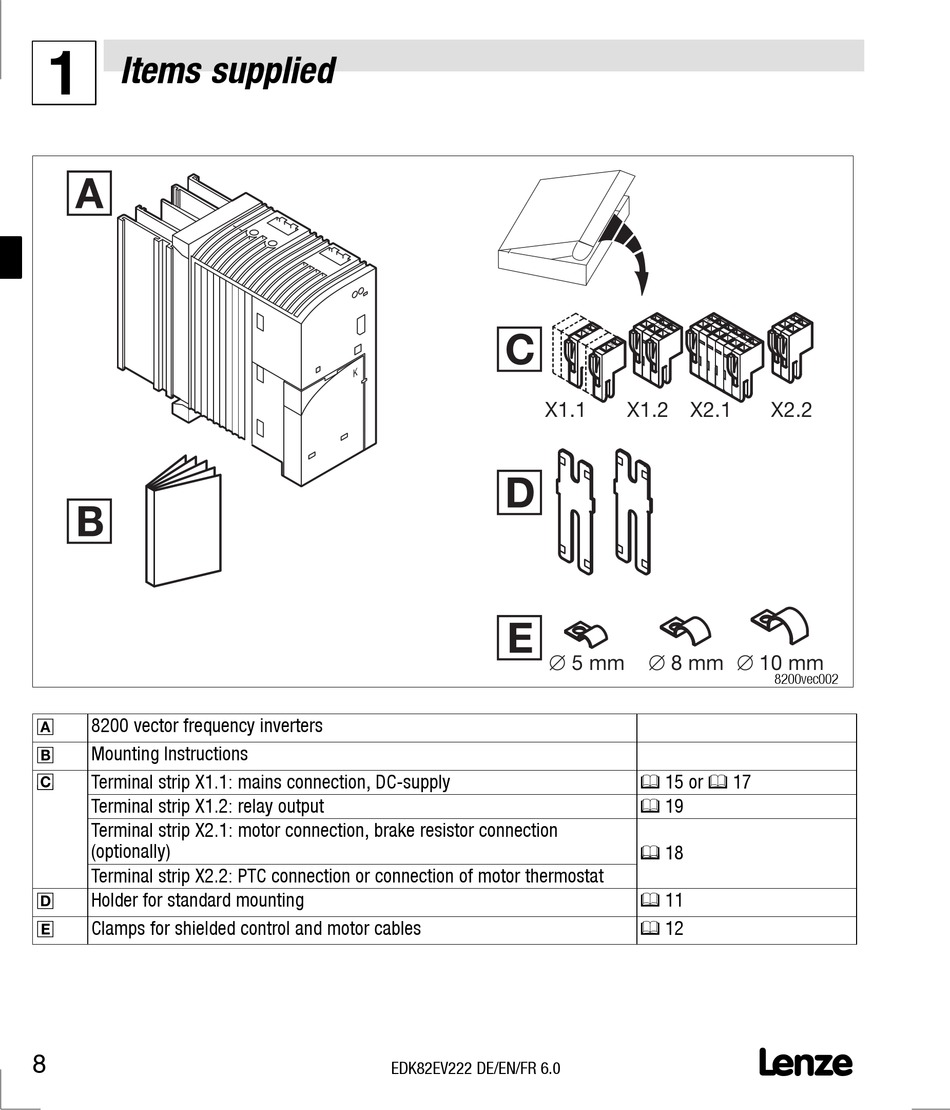

Items supplied

1
0
1
0
8200 vector frequency inverters
1 Mounting Instructions
2 2
Terminal strip X1.1: mains connection, DC-supply
Terminal strip X1.2: relay output
Terminal strip X2.1: motor connection, brake resistor connection
(optionally)
Terminal strip X2.2: PTC connection or connection of motor thermostat
3
Holder for standard mounting
4
Clamps for shielded control and motor cables
8
2
X1.1
3
4
Æ 5 mm
