Code
No. Name
C0052* Motor voltage
(MCTRL1-VOLT)
C0053* DC bus voltage
(MCTRL1-DCVOLT)
C0054* Apparent motor
current
(MCTRL1-IMOT)
C0056* Unit load
C0061* Heat sink
temperature
C0084 Motor stator
resistance
C0087 Rated motor
speed
C0088 Rated motor
current
C0089 Rated motor
frequency
C0090 Rated motor
voltage
C0091 Motor cos j
C0092 Motor stator
inductance
L
Possible settings
Lenze Choice
0
0
0
-255
0
0.000 0.000
1390 300
à 0.0
50 10
à 50
à 0.4
0.0 0.0
EDK82EV222 DE/EN/FR 6.0

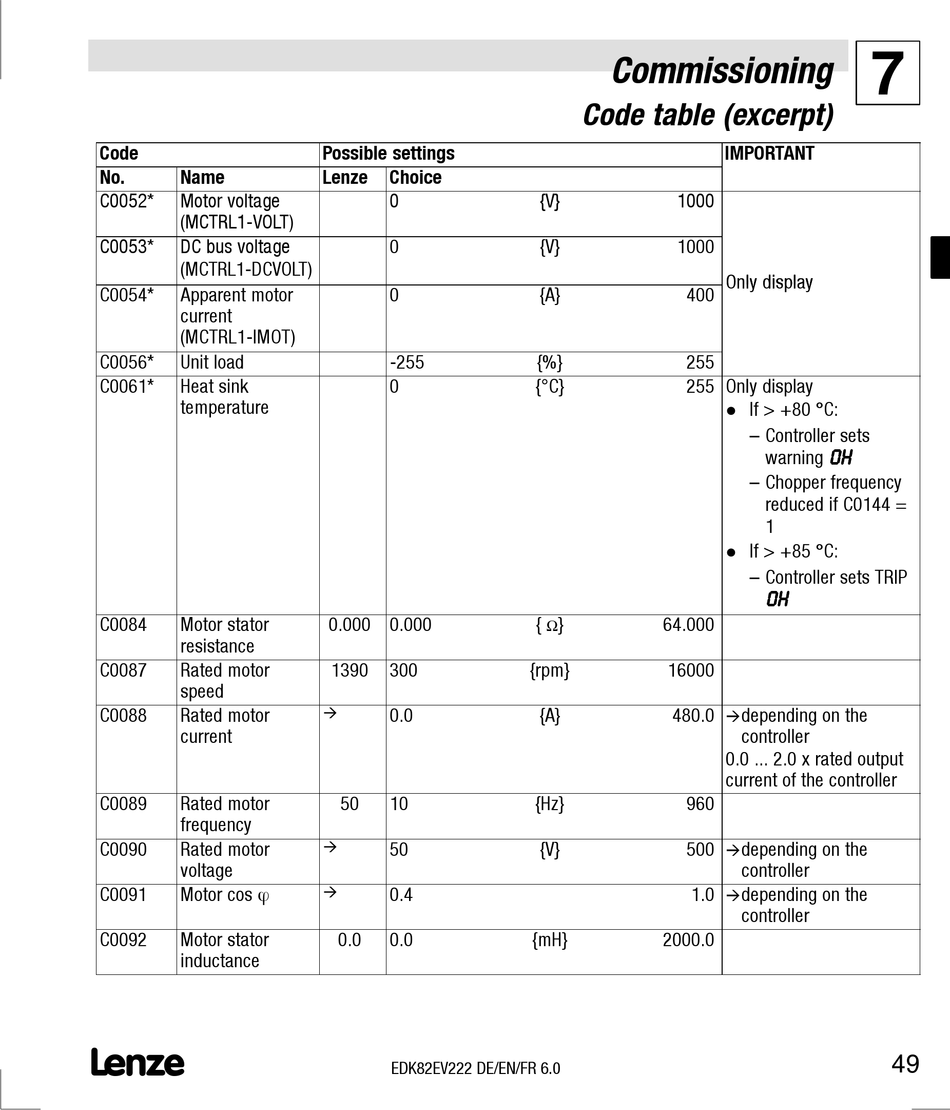

Commissioning
Code table (excerpt)
{V} 1000
{V} 1000
{A} 400
{%} 255
{ ° C} 255 Only display
{ } 64.000
Ω
{rpm} 16000
{A} 480.0
{Hz} 960
{V} 500
1.0
{mH} 2000.0
7
IMPORTANT
Only display Only display
If > +80 °C:
l
– Controller sets
O O O O H H H H
warning
– Chopper frequency
reduced if C0144 =
1
If > +85 °C:
l
– Controller sets TRIP
O O O O H H H H
depending on the
à
controller
0.0 ... 2.0 x rated output
current of the controller
depending on the
à
controller
depending on the
à
controller
49
