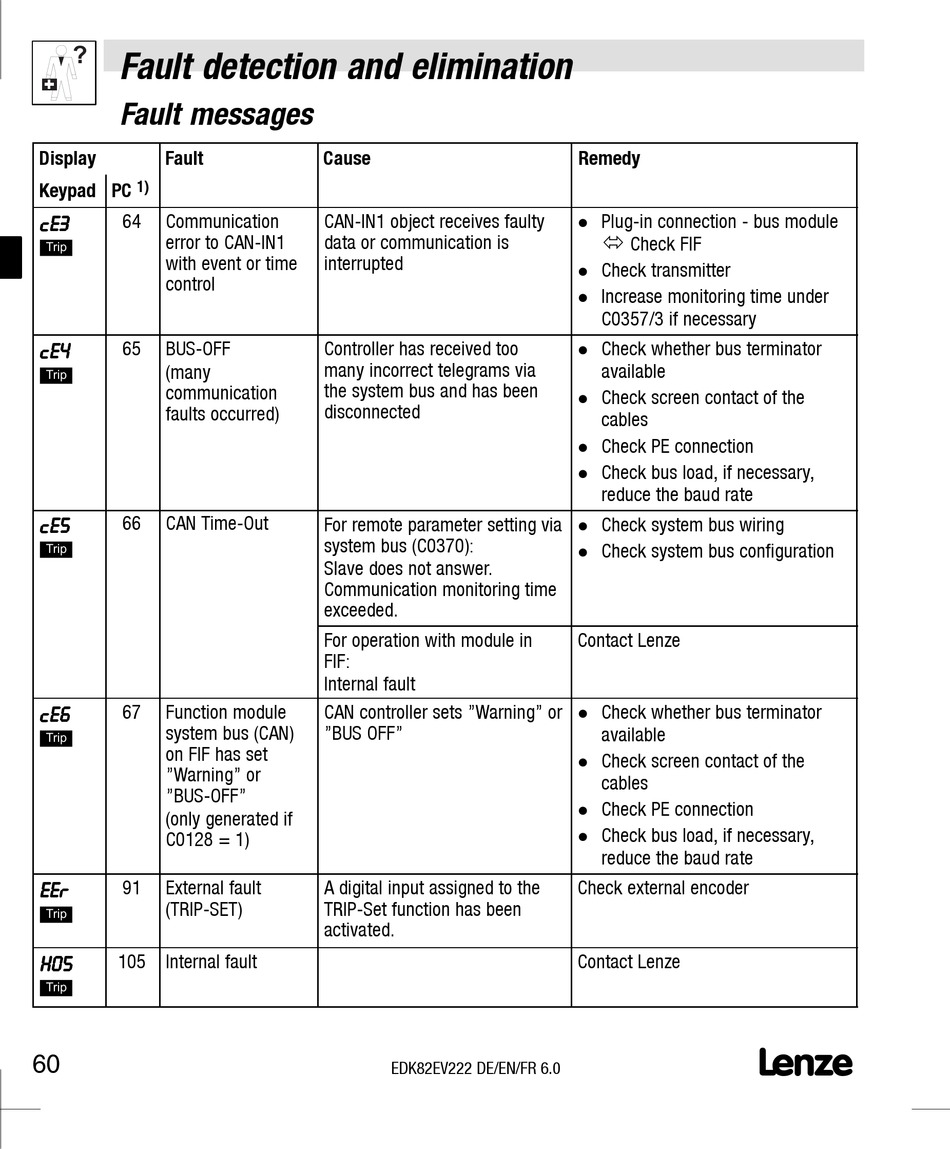

Fault detection and elimination
?
Fault messages
Display Fault
1)
Keypad PC
64 Communication
c c c c e e e e 3 3 3 3
error to CAN-IN1
a
with event or time
control
65 BUS-OFF
c c c c e e e e 4 4 4 4
(many
a
communication
faults occurred)
66 CAN Time-Out
c c c c e e e e 5 5 5 5
a
67 Function module
c c c c e e e e 6 6 6 6
system bus (CAN)
a
on FIF has set
"Warning" or
"BUS-OFF"
(only generated if
C0128 = 1)
91 External fault
E E E E E E E E r r r r
(TRIP-SET)
a
105 Internal fault
H H H H 0 0 0 0 5 5 5 5
a
60
Cause
CAN-IN1 object receives faulty
data or communication is
interrupted
Controller has received too
many incorrect telegrams via
the system bus and has been
disconnected
For remote parameter setting via
system bus (C0370):
Slave does not answer.
Communication monitoring time
exceeded.
For operation with module in
FIF:
Internal fault
CAN controller sets "Warning" or
"BUS OFF"
A digital input assigned to the
TRIP-Set function has been
activated.
EDK82EV222 DE/EN/FR 6.0
Remedy
Plug-in connection - bus module
l
ó
Check FIF
Check transmitter
l
Increase monitoring time under
l
C0357/3 if necessary
Check whether bus terminator
l
available
Check screen contact of the
l
cables
Check PE connection
l
Check bus load, if necessary,
l
reduce the baud rate
Check system bus wiring
l
Check system bus configuration
l
Contact Lenze
Check whether bus terminator
l
available
Check screen contact of the
l
cables
Check PE connection
l
Check bus load, if necessary,
l
reduce the baud rate
Check external encoder
Contact Lenze
