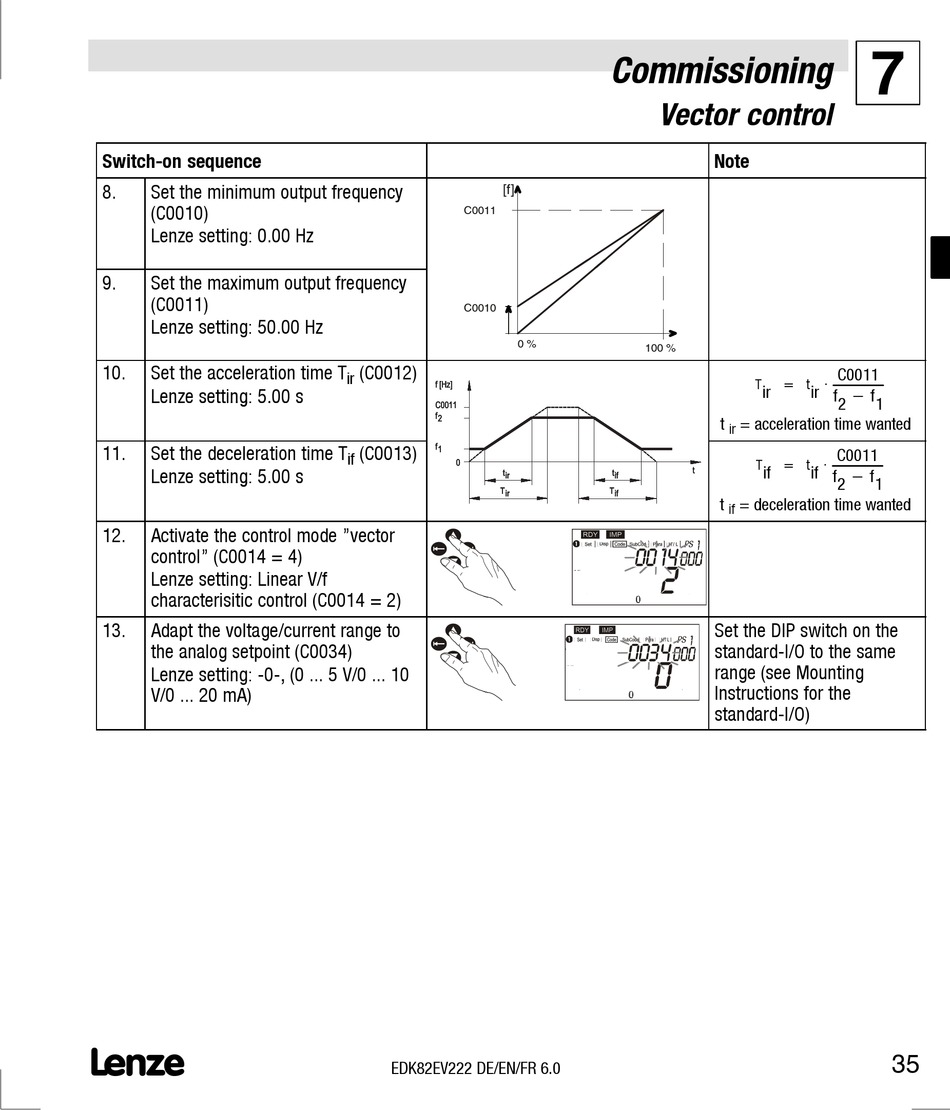

Switch-on sequence
8. Set the minimum output frequency
(C0010)
Lenze setting: 0.00 Hz
9. Set the maximum output frequency
(C0011)
Lenze setting: 50.00 Hz
10. Set the acceleration time T
Lenze setting: 5.00 s Lenze setting: 5.00 s
11. Set the deceleration time T
Lenze setting: 5.00 s Lenze setting: 5.00 s
12. Activate the control mode "vector
control" (C0014 = 4)
Lenze setting: Linear V/f
characterisitic control (C0014 = 2)
13. Adapt the voltage/current range to
the analog setpoint (C0034)
Lenze setting: -0-, (0 ... 5 V/0 ... 10
V/0 ... 20 mA)
L
[f]
C0011
C0010
0 %
(C0012)
ir
(C0013)
if
z
w x
y
z
w x
y
EDK82EV222 DE/EN/FR 6.0
Commissioning
Vector control
Note
100 %
t = acceleration time wanted
ir
t = deceleration time wanted
if
d c b e a
Πjgfkih PS
‚
mno
p
q r
Hi
Hz
Lo
Set the DIP switch on the
d c b e a
Πj g f k i h PS
standard-I/O to the same
‚ m n o
p
q r
range (see Mounting
Hi
Hz
Lo
Instructions for the
standard-I/O)
7
C0011
T = t
⋅
ir ir
f 2 − f 1
C0011
T = t
⋅
if if
f 2 − f 1
35
