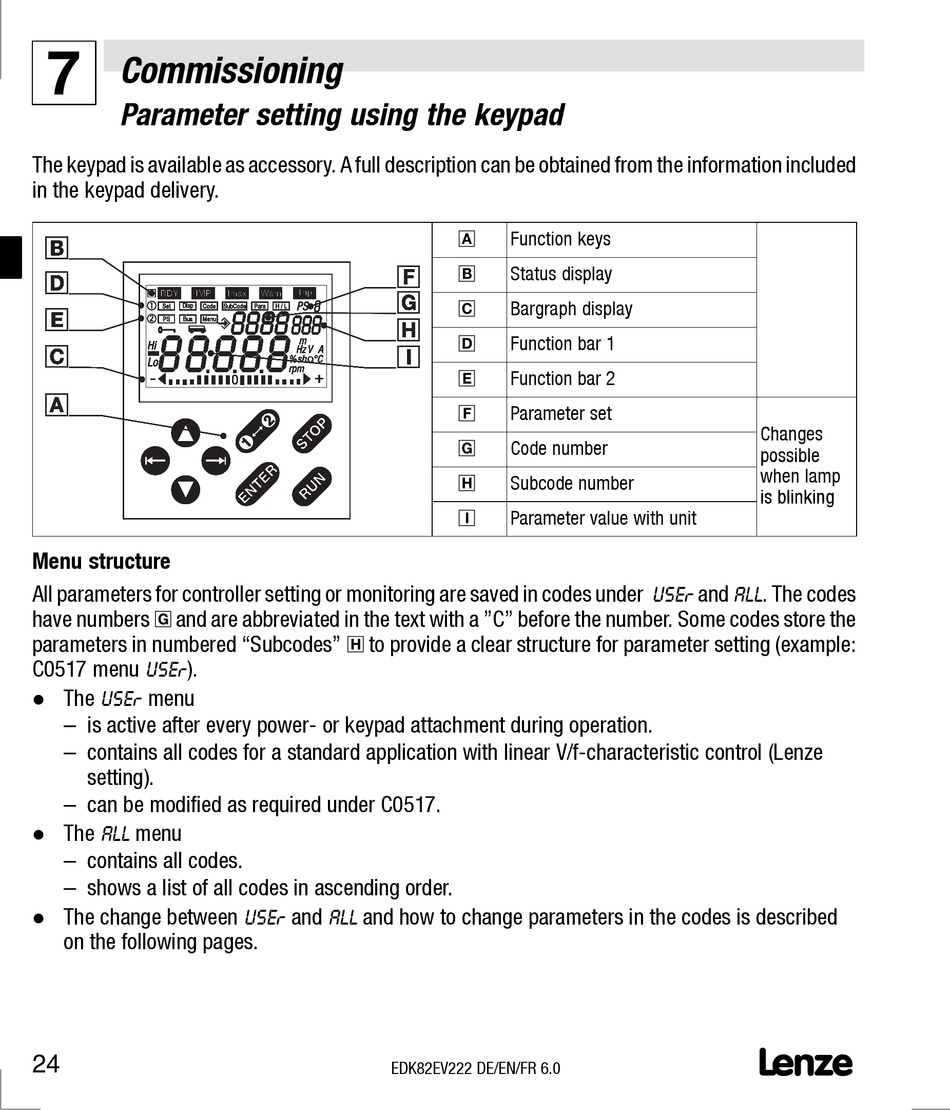

Commissioning

7

Parameter setting using the keypad

The keypad is available as accessory. A full description can be obtained from the information included
in the keypad delivery.
Menu structure
All parameters for controller setting or monitoring are saved in codes under User and all. The codes
have numbers 6 and are abbreviated in the text with a "C" before the number. Some codes store the
parameters in numbered "Subcodes" 7 to provide a clear structure for parameter setting (example:
C0517 menu User).
The User menu
l
– is active after every power- or keypad attachment during operation.
– contains all codes for a standard application with linear V/f-characteristic control (Lenze
setting).
– can be modified as required under C0517.
The all menu
l
– contains all codes.
– shows a list of all codes in ascending order.
The change between User and all and how to change parameters in the codes is described
l
on the following pages.
24
0
Function keys
1
Status display
2
Bargraph display
3
Function bar 1
4
Function bar 2
5
Parameter set
6
Code number
7
Subcode number
8
Parameter value with unit
EDK82EV222 DE/EN/FR 6.0
Changes Changes
possible possible
when lamp
is blinking is blinking
