Commissioning
7

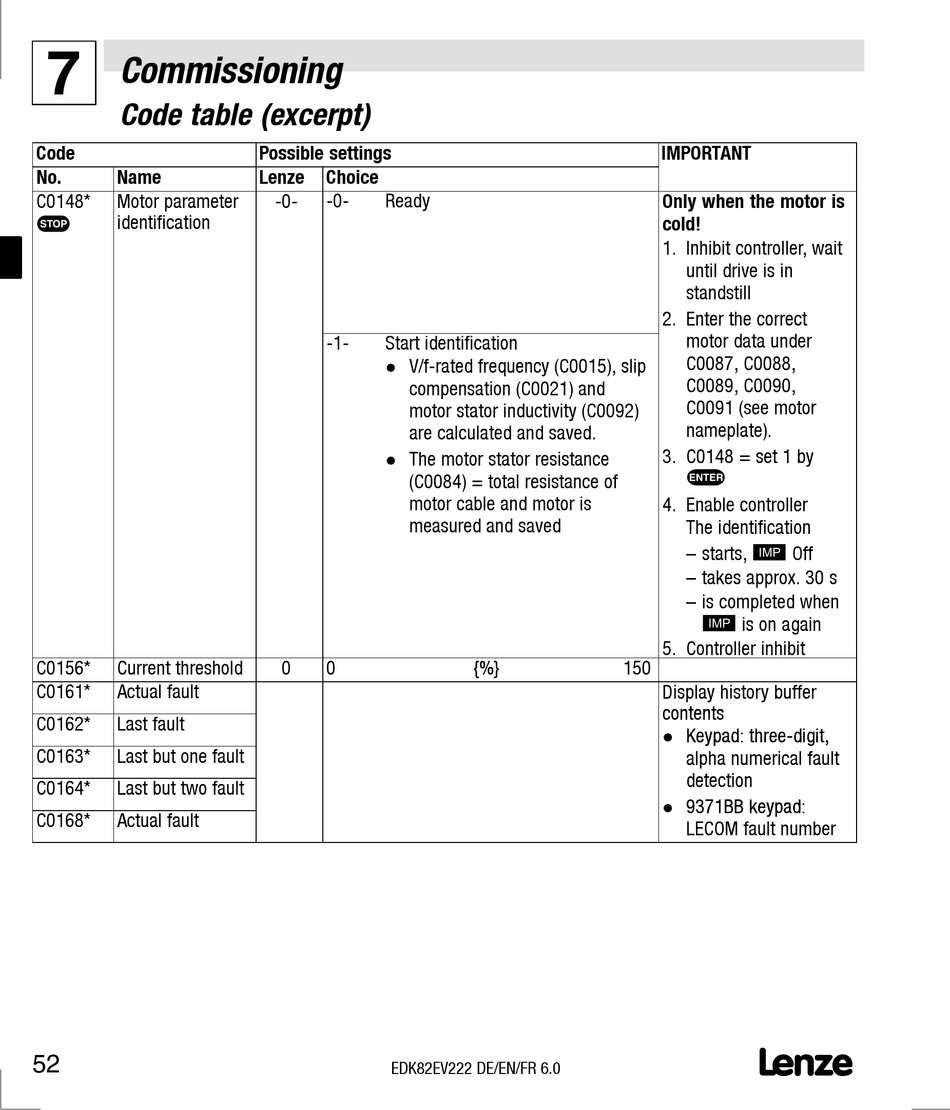

Code table (excerpt)
Code
No. Name
C0148* Motor parameter
s
identification
C0156* Current threshold
C0161* Actual fault
C0162* Last fault
C0163* Last but one fault
C0164* Last but two fault
C0168* Actual fault
52
Possible settings
Lenze Choice
-0- Ready
-0-
-1- Start identification
V/f-rated frequency (C0015), slip
l
compensation (C0021) and
motor stator inductivity (C0092)
are calculated and saved.
The motor stator resistance
l
(C0084) = total resistance of
motor cable and motor is
measured and saved
0 0
EDK82EV222 DE/EN/FR 6.0
{%} 150
IMPORTANT
Only when the motor is
cold!
1. Inhibit controller, wait
until drive is in
standstill
2. Enter the correct 2. Enter the correct
motor data under
C0087, C0088,
C0089, C0090,
C0091 (see motor
nameplate).
3. C0148 = set 1 by
v
4. Enable controller
The identification
c
– starts, Off
– takes approx. 30 s
– is completed when
c
is on again
5. Controller inhibit
Display history buffer
contents contents
Keypad: three-digit, Keypad: three-digit,
l l
alpha numerical fault
detection detection
9371BB keypad: 9371BB keypad:
l l
LECOM fault number
L
