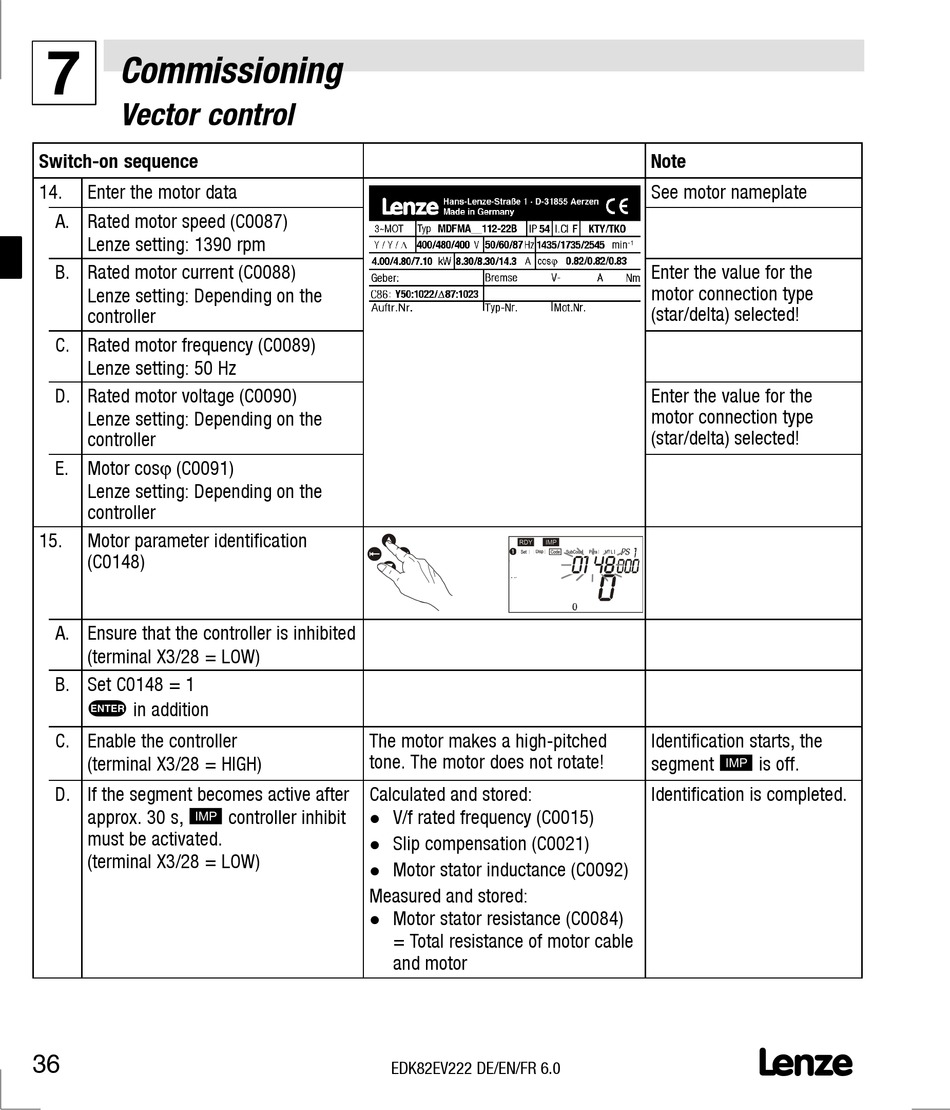

Commissioning
7
Vector control
Switch-on sequence
14. Enter the motor data
A. Rated motor speed (C0087)
Lenze setting: 1390 rpm
B. Rated motor current (C0088)
Lenze setting: Depending on the
controller
C. Rated motor frequency (C0089)
Lenze setting: 50 Hz
D. Rated motor voltage (C0090)
Lenze setting: Depending on the
controller
E. Motor cos ϕ (C0091)
Lenze setting: Depending on the
controller
15. Motor parameter identification
(C0148)
A. Ensure that the controller is inhibited
(terminal X3/28 = LOW)
B. Set C0148 = 1
v
in addition
C. Enable the controller
(terminal X3/28 = HIGH)
D. If the segment becomes active after
c
approx. 30 s,
must be activated.
(terminal X3/28 = LOW)
36
z
w x
y
The motor makes a high-pitched
tone. The motor does not rotate!
Calculated and stored:
controller inhibit V/f rated frequency (C0015)
l
Slip compensation (C0021)
l
Motor stator inductance (C0092)
l
Measured and stored:
Motor stator resistance (C0084)
l
= Total resistance of motor cable
and motor
EDK82EV222 DE/EN/FR 6.0
Note
See motor nameplate
Enter the value for the
motor connection type
(star/delta) selected!
Enter the value for the
motor connection type
(star/delta) selected!
d c b e a
Œ
j g f k i h PS
‚ m n o
p
q r
Hi
Hz
Lo
Identification starts, the
segment
Identification is completed.
c
is off.
