Commissioning
7

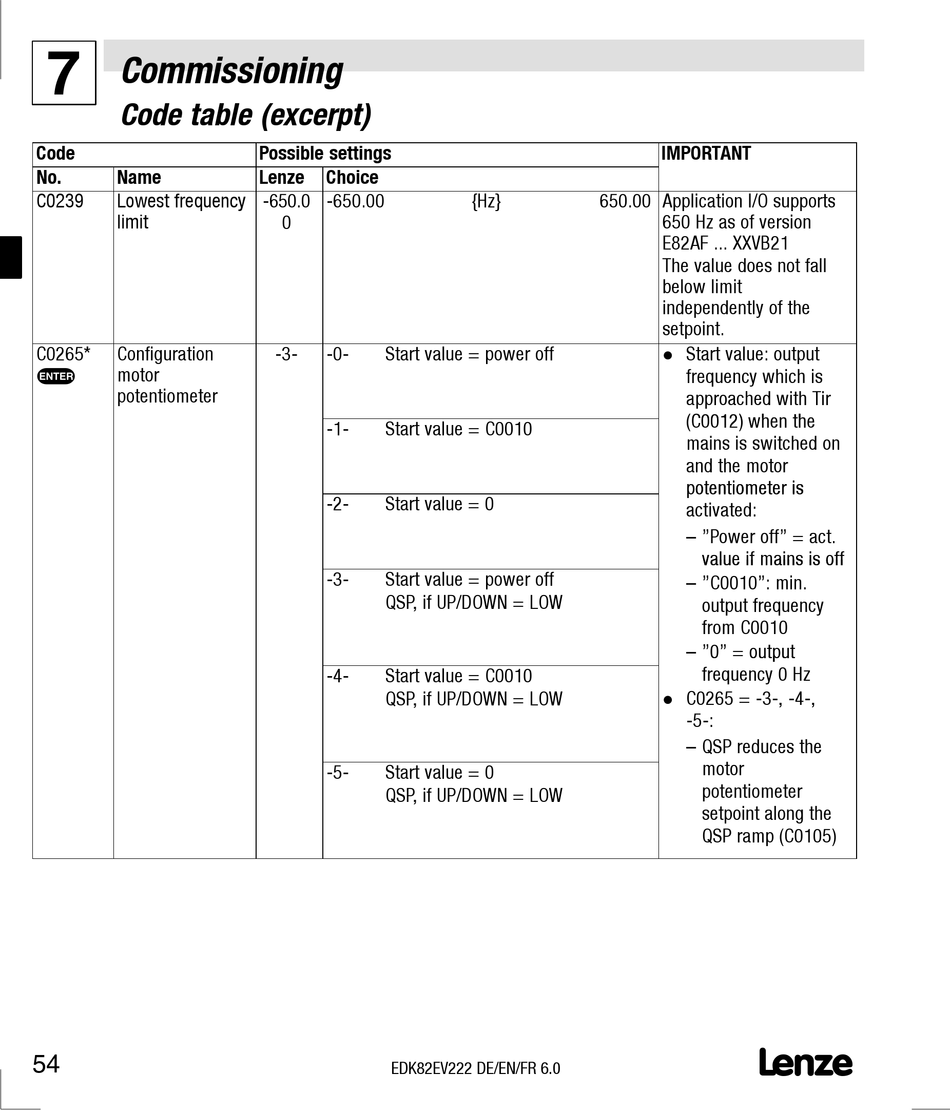

Code table (excerpt)
Code
No. Name
C0239 Lowest frequency
limit
C0265* Configuration
v
motor
potentiometer
54
Possible settings
Lenze Choice
-650.0 -650.00
0
-3- -0- Start value = power off
-1- Start value = C0010
-2- Start value = 0
-3- Start value = power off
QSP, if UP/DOWN = LOW
-4- Start value = C0010
QSP, if UP/DOWN = LOW
-5- Start value = 0
QSP, if UP/DOWN = LOW
EDK82EV222 DE/EN/FR 6.0
{Hz} 650.00 Application I/O supports
IMPORTANT
650 Hz as of version
E82AF ... XXVB21
The value does not fall
below limit
independently of the
setpoint.
Start value: output
l
frequency which is
approached with Tir
(C0012) when the (C0012) when the
mains is switched on
and the motor
potentiometer is potentiometer is
activated:
– "Power off" = act.
value if mains is off value if mains is off
– "C0010": min.
output frequency
from C0010
– "0" = output 0 = output
frequency 0 Hz
C0265 = -3-, -4-,
l
-5-:
– QSP reduces the QSP reduces the
motor
potentiometer
setpoint along the
QSP ramp (C0105)
L
