If the power tool is cordless, remove the tool's
battery. If the power tool uses a cord, disconnect
the tool's plug.
Switching ON
Switching OFF
Disconnect the drilling tool
Warning
Prohibited action

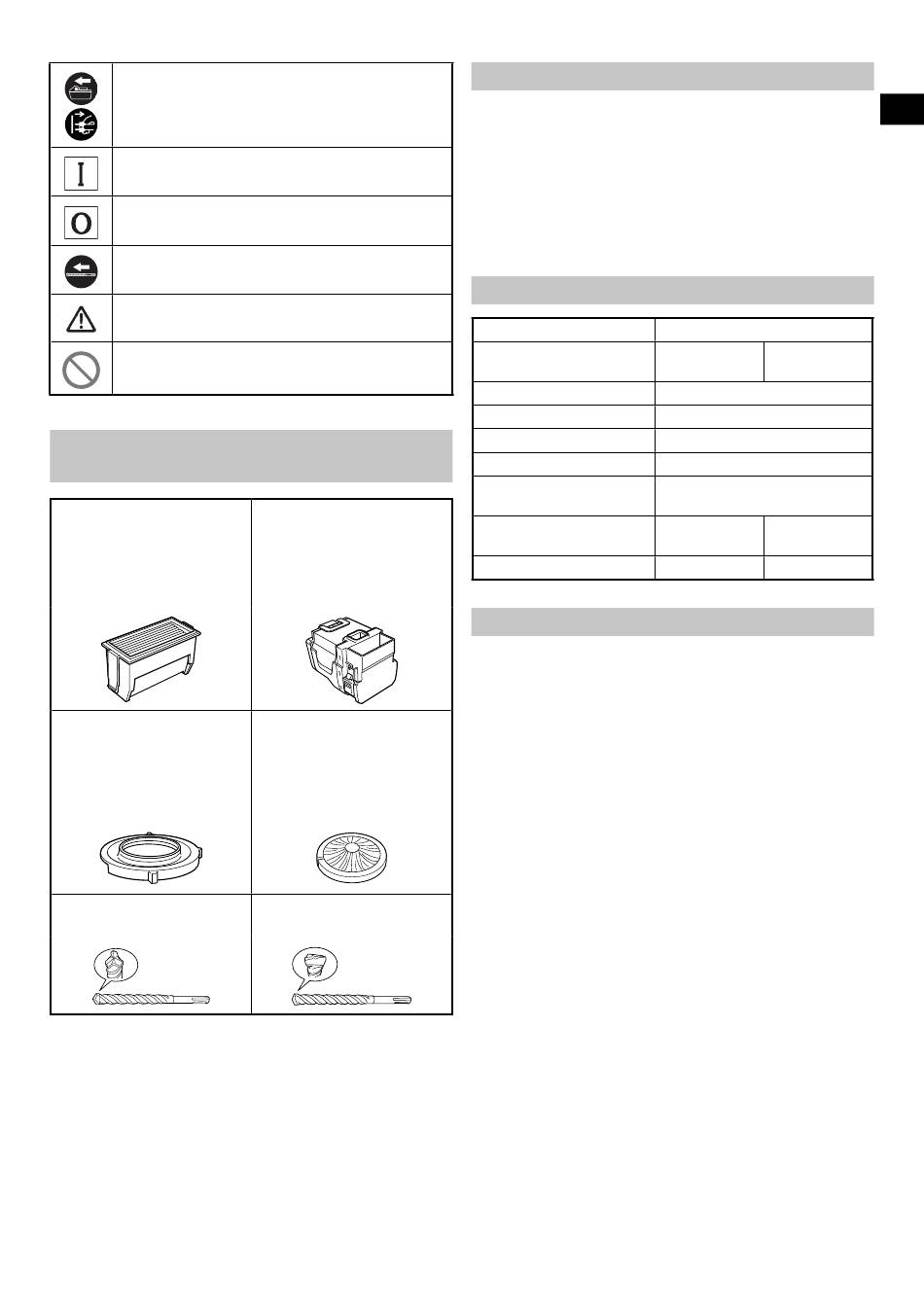

OPTIONAL ACCESSORIES

(sold separately)
○ Filter
Replace the fi lter about
once every 100 times the
dust extractor system
becomes full.
Code No. 379717
○ Nozzle seal
Replace this part if it
becomes cracked or
damaged, or if it loses its
elasticity.
Code No. 377175
○ Deltagon bit
(SDS plus shank)
Optional accessories are subject to change without notice.
○ Dust box
Code No. 379714
○ Brush cap
Replace this part if the
bristles are falling out or
becoming shorter from
friction.
Code No. 370496
○ Drill bit
(SDS plus shank)
APPLICATIONS
Dust extractor system specialized for drilling concrete, for
use with the following HiKOKI rotary hammers:
DH3628DA / DH3628DC / DH1826DA / DH1826DC
For details regarding the latest available rotary hammers,
check our general catalogue and other information.
NOTE
This dust extractor system is only to be used for drilling
concrete.
SPECIFICATIONS
Model
Supported models
Dust box capacity
Max. stroke
Max. hole-drilling depth
Diameter of drill
Max. length of drill
(eff ective length)
Dimensions
(W x H x D)
Weight

HOW TO USE

1. Attaching and removing the dust extractor system
WARNING
○ When attaching, removing, or adjusting the dust extractor
system, in order to prevent an unlikely accident, be sure
to turn off the tool's switch, and remove the tool's battery
and tool bit. (Fig. 2)
○ Make sure the dust extractor system is fully attached.
If not fully attached, the dust extractor system could
come loose and result in injury.
<Attaching the dust extractor system>
Insert the tool rail slot into the dust extractor system rail, and
push in until a click is heard. (Fig. 3)
<Removing the dust extractor system>
Hold the handle with one hand, and press the button while
gripping the dust extractor system slider in your other hand
to remove it. (Fig. 4)
7
English
Dust Extractor System
DH3628DA DH3628DC
DH1826DA DH1826DC
0.45 L
100 mm
85 mm
4.3–20 mm
100 mm or shorter
105 × 243 × 105 × 243 ×
366 mm 399 mm
1.0 kg 1.0 kg
