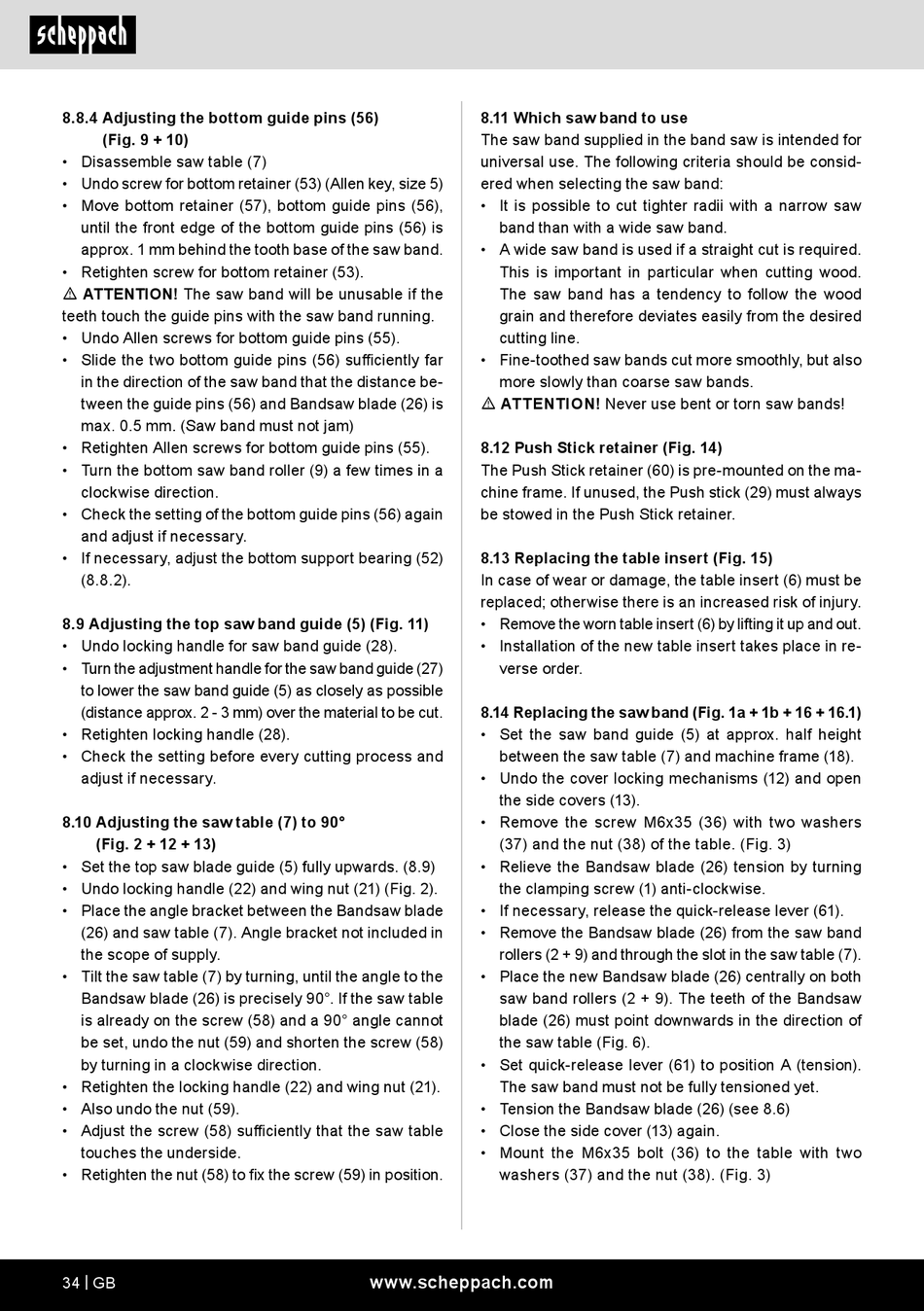

8.8.4 Adjusting the bottom guide pins (56)
(Fig. 9 + 10)
• Disassemble saw table (7)
• Undo screw for bottom retainer (53) (Allen key, size 5)
• Move bottom retainer (57), bottom guide pins (56),
until the front edge of the bottom guide pins (56) is
approx. 1 mm behind the tooth base of the saw band.
• Retighten screw for bottom retainer (53).
m ATTENTION! The saw band will be unusable if the
teeth touch the guide pins with the saw band running.
• Undo Allen screws for bottom guide pins (55).
• Slide the two bottom guide pins (56) sufficiently far
in the direction of the saw band that the distance be-
tween the guide pins (56) and Bandsaw blade (26) is
max. 0.5 mm. (Saw band must not jam)
• Retighten Allen screws for bottom guide pins (55).
• Turn the bottom saw band roller (9) a few times in a
clockwise direction.
• Check the setting of the bottom guide pins (56) again
and adjust if necessary.
• If necessary, adjust the bottom support bearing (52)
(8.8.2).
8.9 Adjusting the top saw band guide (5) (Fig. 11)
• Undo locking handle for saw band guide (28).
• Turn the adjustment handle for the saw band guide (27)
to lower the saw band guide (5) as closely as possible
(distance approx. 2 - 3 mm) over the material to be cut.
• Retighten locking handle (28).
• Check the setting before every cutting process and
adjust if necessary.
8.10 Adjusting the saw table (7) to 90°
(Fig. 2 + 12 + 13)
• Set the top saw blade guide (5) fully upwards. (8.9)
• Undo locking handle (22) and wing nut (21) (Fig. 2).
• Place the angle bracket between the Bandsaw blade
(26) and saw table (7). Angle bracket not included in
the scope of supply.
• Tilt the saw table (7) by turning, until the angle to the
Bandsaw blade (26) is precisely 90°. If the saw table
is already on the screw (58) and a 90° angle cannot
be set, undo the nut (59) and shorten the screw (58)
by turning in a clockwise direction.
• Retighten the locking handle (22) and wing nut (21).
• Also undo the nut (59).
• Adjust the screw (58) sufficiently that the saw table
touches the underside.
• Retighten the nut (58) to fix the screw (59) in position.
34 | GB
8.11 Which saw band to use
The saw band supplied in the band saw is intended for
universal use. The following criteria should be consid-
ered when selecting the saw band:
• It is possible to cut tighter radii with a narrow saw
band than with a wide saw band.
• A wide saw band is used if a straight cut is required.
This is important in particular when cutting wood.
The saw band has a tendency to follow the wood
grain and therefore deviates easily from the desired
cutting line.
• Fine-toothed saw bands cut more smoothly, but also
more slowly than coarse saw bands.
m ATTENTION! Never use bent or torn saw bands!
8.12 Push Stick retainer (Fig. 14)
The Push Stick retainer (60) is pre-mounted on the ma-
chine frame. If unused, the Push stick (29) must always
be stowed in the Push Stick retainer.
8.13 Replacing the table insert (Fig. 15)
In case of wear or damage, the table insert (6) must be
replaced; otherwise there is an increased risk of injury.
• Remove the worn table insert (6) by lifting it up and out.
• Installation of the new table insert takes place in re-
verse order.
8.14 Replacing the saw band (Fig. 1a + 1b + 16 + 16.1)
• Set the saw band guide (5) at approx. half height
between the saw table (7) and machine frame (18).
• Undo the cover locking mechanisms (12) and open
the side covers (13).
• Remove the screw M6x35 (36) with two washers
(37) and the nut (38) of the table. (Fig. 3)
• Relieve the Bandsaw blade (26) tension by turning
the clamping screw (1) anti-clockwise.
• If necessary, release the quick-release lever (61).
• Remove the Bandsaw blade (26) from the saw band
rollers (2 + 9) and through the slot in the saw table (7).
• Place the new Bandsaw blade (26) centrally on both
saw band rollers (2 + 9). The teeth of the Bandsaw
blade (26) must point downwards in the direction of
the saw table (Fig. 6).
• Set quick-release lever (61) to position A (tension).
The saw band must not be fully tensioned yet.
• Tension the Bandsaw blade (26) (see 8.6)
• Close the side cover (13) again.
• Mount the M6x35 bolt (36) to the table with two
washers (37) and the nut (38). (Fig. 3)
www.scheppach.com
