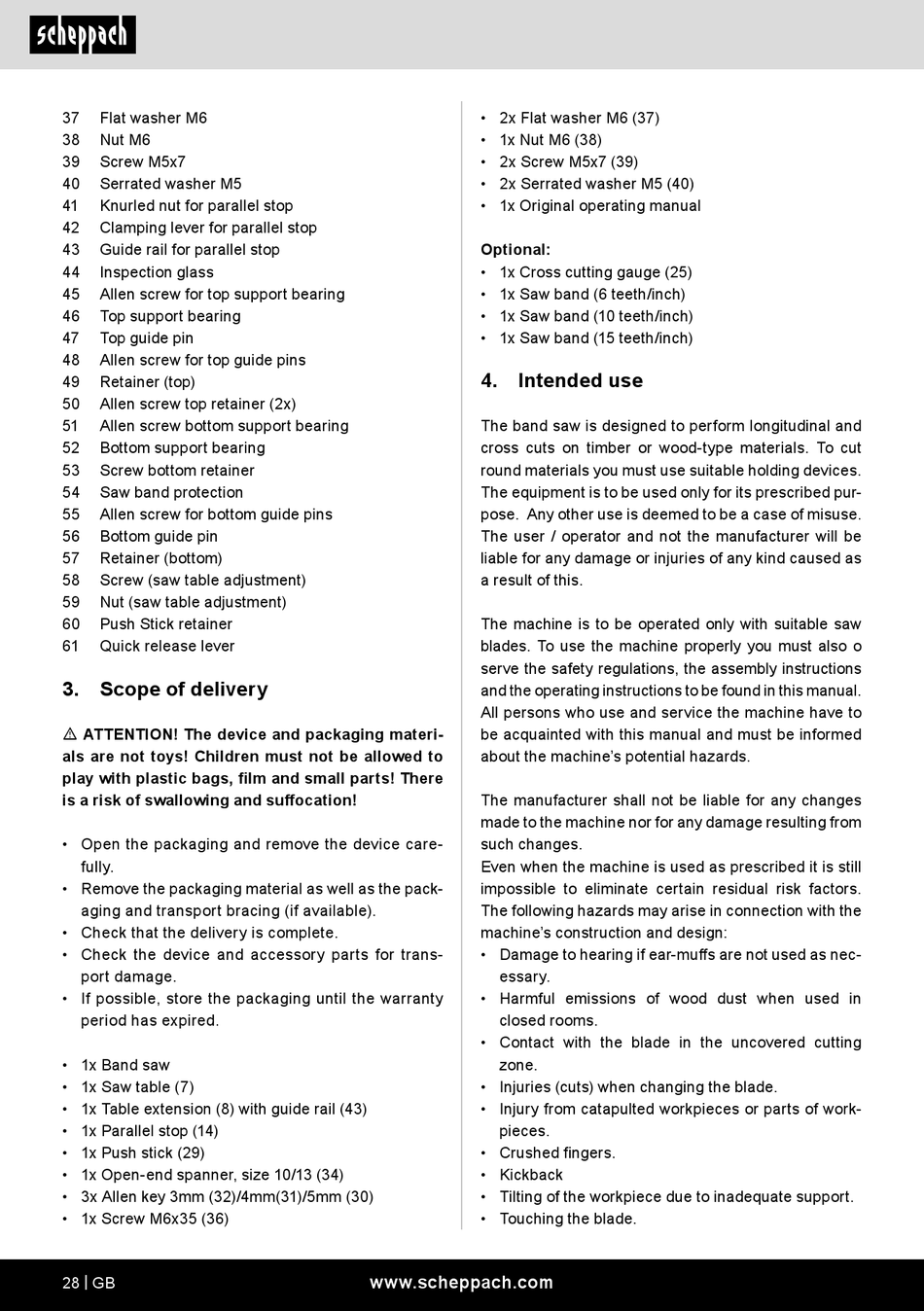

Scheppach HBS30x Originalbetriebsanleitung Seite 28

37 Flat washer M6
38 Nut M6
39 Screw M5x7
40 Serrated washer M5
41 Knurled nut for parallel stop
42 Clamping lever for parallel stop
43 Guide rail for parallel stop
44 Inspection glass
45 Allen screw for top support bearing
46 Top support bearing
47 Top guide pin
48 Allen screw for top guide pins
49 Retainer (top)
50 Allen screw top retainer (2x)
51 Allen screw bottom support bearing
52 Bottom support bearing
53 Screw bottom retainer
54 Saw band protection
55 Allen screw for bottom guide pins
56 Bottom guide pin
57 Retainer (bottom)
58 Screw (saw table adjustment)
59 Nut (saw table adjustment)
60 Push Stick retainer
61 Quick release lever
3. Scope of delivery
m ATTENTION! The device and packaging materi-
als are not toys! Children must not be allowed to
play with plastic bags, film and small parts! There
is a risk of swallowing and suffocation!
• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
• 1x Band saw
• 1x Saw table (7)
• 1x Table extension (8) with guide rail (43)
• 1x Parallel stop (14)
• 1x Push stick (29)
• 1x Open-end spanner, size 10/13 (34)
• 3x Allen key 3mm (32)/4mm(31)/5mm (30)
• 1x Screw M6x35 (36)
28 | GB
• 2x Flat washer M6 (37)
• 1x Nut M6 (38)
• 2x Screw M5x7 (39)
• 2x Serrated washer M5 (40)
• 1x Original operating manual
Optional:
• 1x Cross cutting gauge (25)
• 1x Saw band (6 teeth/inch)
• 1x Saw band (10 teeth/inch)
• 1x Saw band (15 teeth/inch)
4. Intended use
The band saw is designed to perform longitudinal and
cross cuts on timber or wood-type materials. To cut
round materials you must use suitable holding devices.
The equipment is to be used only for its prescribed pur-
pose. Any other use is deemed to be a case of misuse.
The user / operator and not the manufacturer will be
liable for any damage or injuries of any kind caused as
a result of this.
The machine is to be operated only with suitable saw
blades. To use the machine properly you must also o
serve the safety regulations, the assembly instructions
and the operating instructions to be found in this manual.
All persons who use and service the machine have to
be acquainted with this manual and must be informed
about the machine's potential hazards.
The manufacturer shall not be liable for any changes
made to the machine nor for any damage resulting from
such changes.
Even when the machine is used as prescribed it is still
impossible to eliminate certain residual risk factors.
The following hazards may arise in connection with the
machine's construction and design:
• Damage to hearing if ear-muffs are not used as nec-
essary.
• Harmful emissions of wood dust when used in
closed rooms.
• Contact with the blade in the uncovered cutting
zone.
• Injuries (cuts) when changing the blade.
• Injury from catapulted workpieces or parts of work-
pieces.
• Crushed fingers.
• Kickback
• Tilting of the workpiece due to inadequate support.
• Touching the blade.
