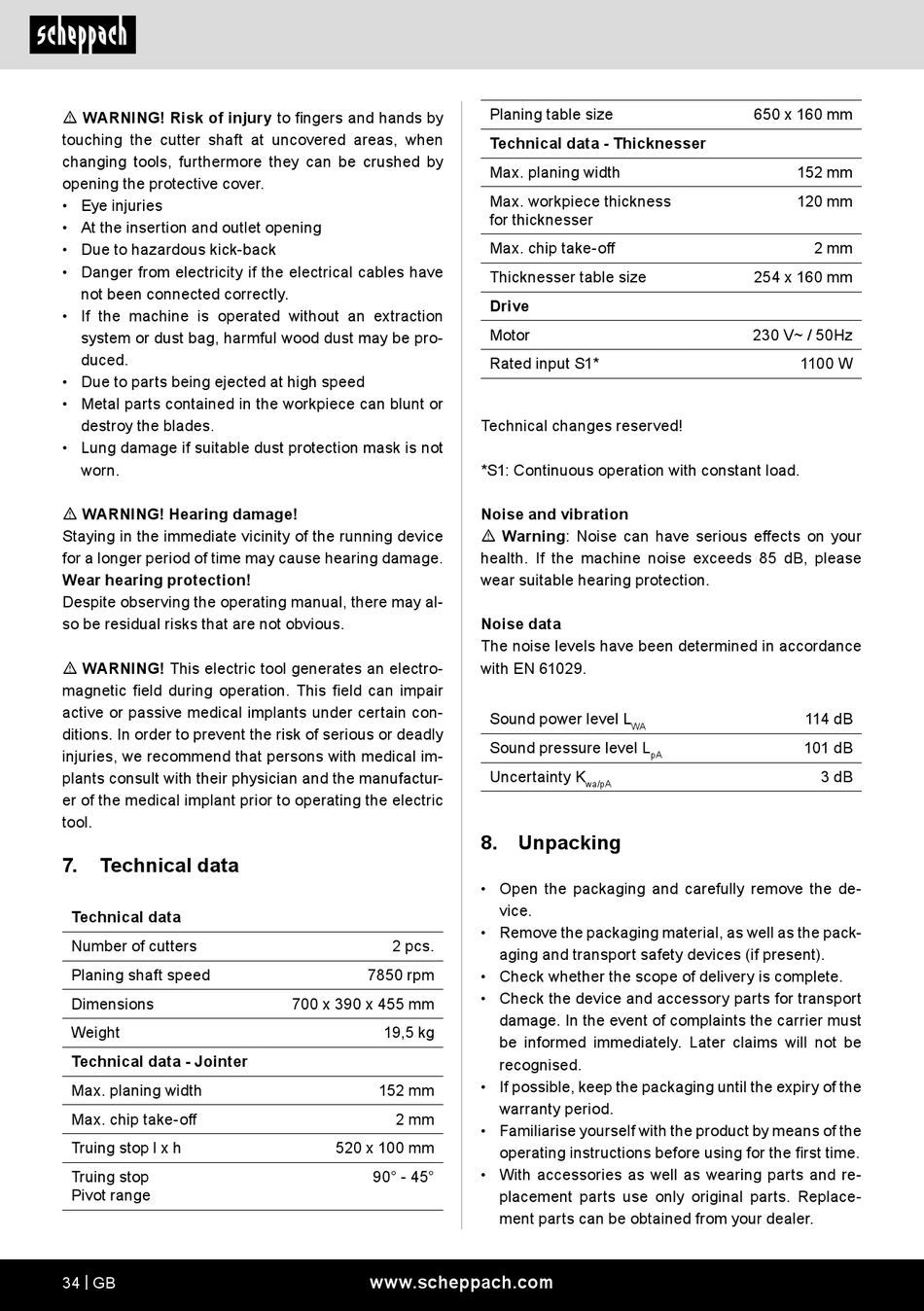

Scheppach HMS650 Originalbetriebsanleitung Seite 34

m WARNING! Risk of injury to fingers and hands by
touching the cutter shaft at uncovered areas, when
changing tools, furthermore they can be crushed by
opening the protective cover.
• Eye injuries
• At the insertion and outlet opening
• Due to hazardous kick-back
• Danger from electricity if the electrical cables have
not been connected correctly.
• If the machine is operated without an extraction
system or dust bag, harmful wood dust may be pro-
duced.
• Due to parts being ejected at high speed
• Metal parts contained in the workpiece can blunt or
destroy the blades.
• Lung damage if suitable dust protection mask is not
worn.
m WARNING! Hearing damage!
Staying in the immediate vicinity of the running device
for a longer period of time may cause hearing damage.
Wear hearing protection!
Despite observing the operating manual, there may al-
so be residual risks that are not obvious.
m WARNING! This electric tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain con-
ditions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical im-
plants consult with their physician and the manufactur-
er of the medical implant prior to operating the electric
tool.
7. Technical data
Technical data
Number of cutters
Planing shaft speed
Dimensions
Weight
Technical data - Jointer
Max. planing width
Max. chip take-off
Truing stop l x h
Truing stop
Pivot range
34 | GB
2 pcs.
7850 rpm
700 x 390 x 455 mm
19,5 kg
152 mm
2 mm
520 x 100 mm
90° - 45°
www.scheppach.com
Planing table size
Technical data - Thicknesser
Max. planing width
Max. workpiece thickness
for thicknesser
Max. chip take-off
Thicknesser table size
Drive
Motor
Rated input S1*
Technical changes reserved!
*S1: Continuous operation with constant load.
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Noise data
The noise levels have been determined in accordance
with EN 61029.
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
8. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
650 x 160 mm
152 mm
120 mm
2 mm
254 x 160 mm
230 V~ / 50Hz
1100 W
114 dB
101 dB
3 dB
