EN PSB12-40-24-12-80

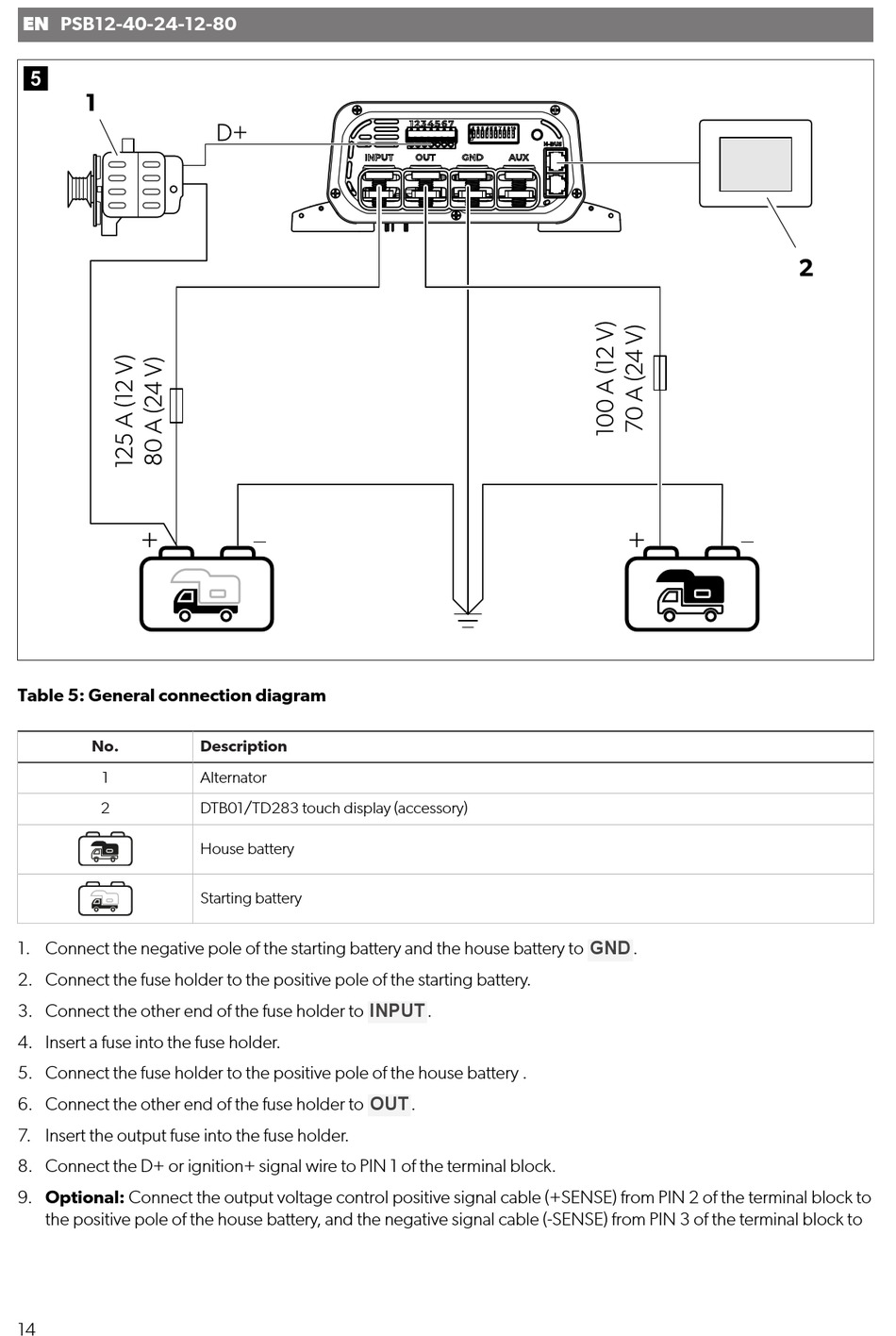

Table 5: General connection diagram
No.
1
2
1. Connect the negative pole of the starting battery and the house battery to
2. Connect the fuse holder to the positive pole of the starting battery.
3. Connect the other end of the fuse holder to
4. Insert a fuse into the fuse holder.
5. Connect the fuse holder to the positive pole of the house battery .
6. Connect the other end of the fuse holder to
7. Insert the output fuse into the fuse holder.
8. Connect the D+ or ignition+ signal wire to PIN 1 of the terminal block.
9. Optional: Connect the output voltage control positive signal cable (+SENSE) from PIN 2 of the terminal block to
the positive pole of the house battery, and the negative signal cable (-SENSE) from PIN 3 of the terminal block to
14
Description
Alternator
DTB01/TD283 touch display (accessory)
House battery
Starting battery
INPUT
OUT
.
.
GND
.
