HANDLING AND INSTALLATION
Connect the appliance to the mains electricity
supply as follows.
If not already present, install an automatic
1)
circuit-breaker
(A)
with the following characteristics:
– Thermal breaker device (to adjust see Annex-
es).
– Magnetic circuit breaker B or C (IEC 60898).
– Residual current protection set a 30 mA.

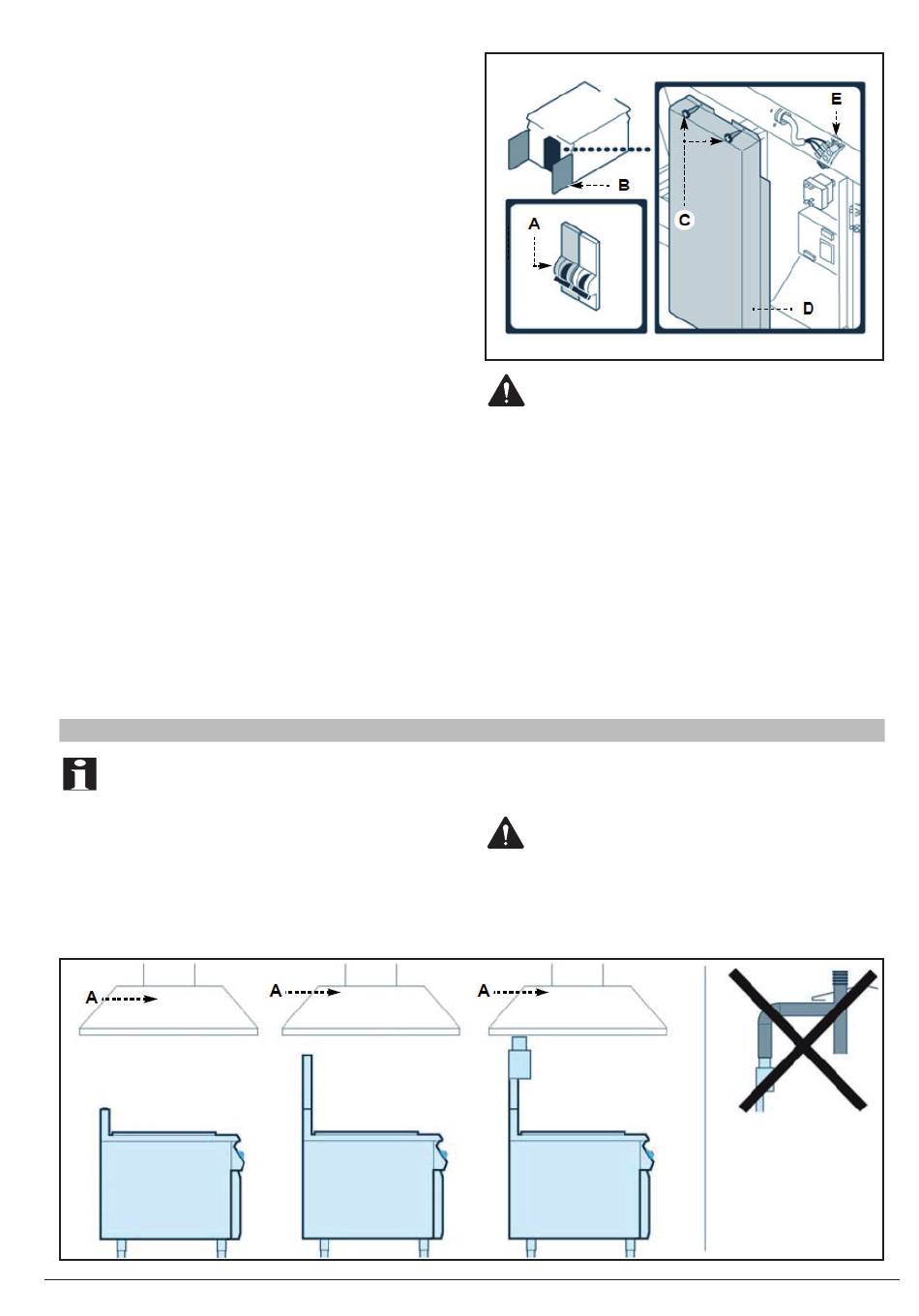

Open the hatch (B).
2)
Undo the screws (C) to remove the lid (D).
3)
Connect the circuit-breaker (A) to the ter-
4)
minal boards (E) of the appliance as shown
in the diagram and in the electrical system
diagram at the back of the manual and use a
cable with characteristics:
– Weight: ≥ than H07RN-F type (designation
245 IEC 57)
– Temperature of use: ≥ 80°
IMPORTANT: Make the connection in
compliance with the relevant legal require-
ments, using appropriate and recommend-
ed materials.
Connecting to a fan extractor hood
To carry out this operation, proceed as follows.
3019703_inst_GB
close to the appliance,
CONNECTION OF FUME EXHAUST VENT
WARNING: When connecting, take
care over the connection of the neutral and
earth wires; if they are not connected cor-
rectly, the burner does not light.
Replace the lid (D) and fi x it with the screws
5)
(C) on completion of the operation.
Close the hatch (B).
6)
Position the appliance underneath the hood
1)
(A) as shown in the diagram.
WARNING:
The gas supply tap must open automatical-
ly when the fan of the extraction system is
switched on.
