ENGLISH
WARNING: The connection must be
made by authorised, skilled personnel, in
accordance with the relevant legal require-
ments, using appropriate and specifi ed ma-
terials. The appliance is supplied with ope-
rating voltage 230V/1N 50Hz, or 220V/1N
60Hz on request.
For direct connection to the mains one must
envisage a device that ensures disconnection
from the mains, with a contacts opening di-
stance that ensures complete disconnection in
the conditions of category III over-tension, in
compliance with the installation rules.
HAZARD: Before doing any work, cut
off the mains electricity supply.

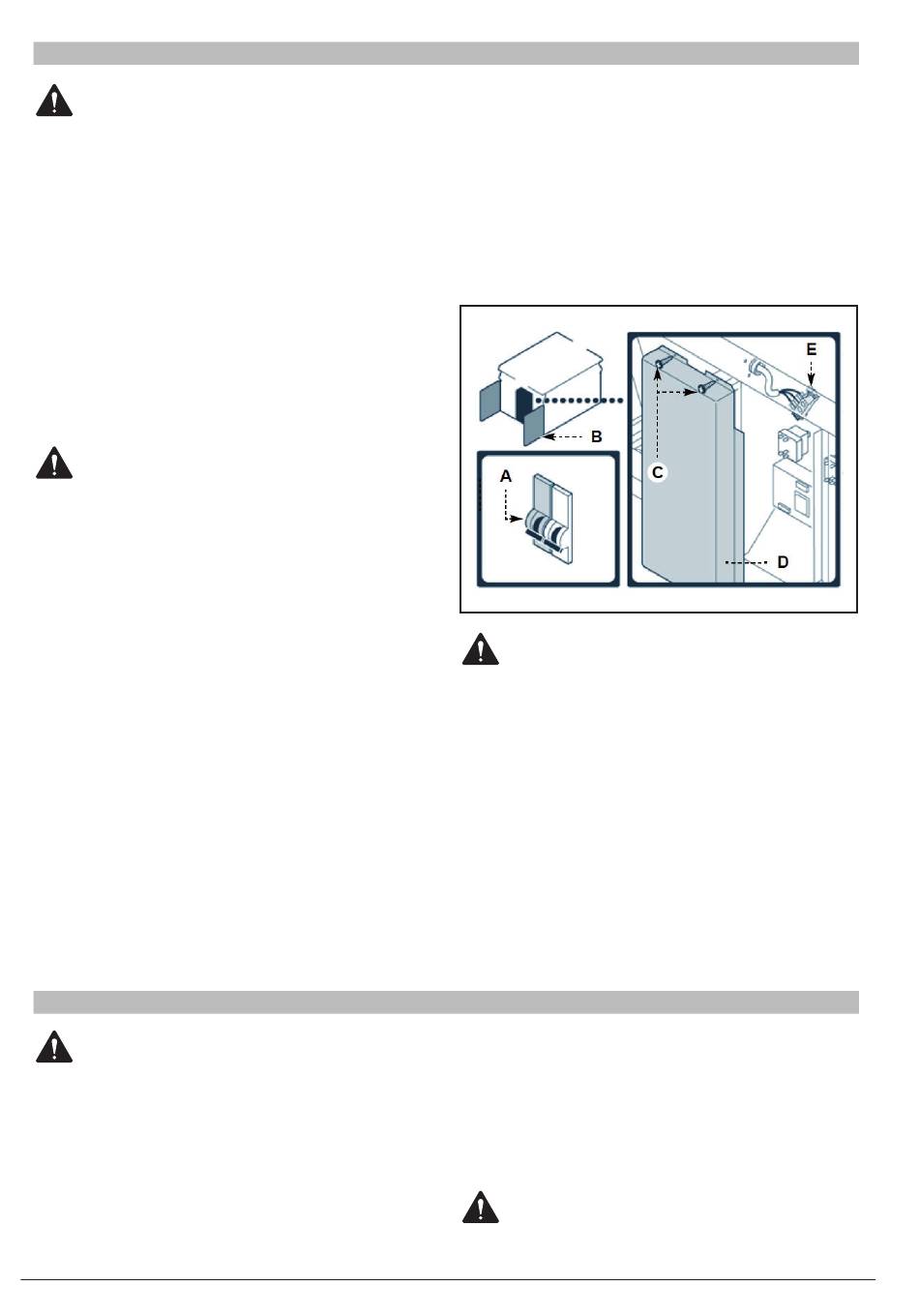

Connect the appliance to the mains electricity
supply as follows.
If not already present, install an automatic
1)
circuit-breaker
(A)
with the following characteristics:
– Thermal breaker device (to adjust see Annex-
es).
– Magnetic circuit breaker B or C (IEC 60898).
– Residual current protection set a 30 mA.
Open the hatch (B).
2)
Undo the screws (C) to remove the lid (D).
3)
WARNING: The connection must be
made by authorised, skilled personnel, in
accordance with the relevant legal require-
ments, using appropriate and specifi ed ma-
terials. The appliance is supplied with ope-
rating voltage 230V/1N 50Hz, or 220V/1N
60Hz on request.
12
ELECTRICAL CONNECTION (06WFR3GD)
close to the appliance,
ELECTRICAL CONNECTION (10WFR4GD)
HANDLING AND INSTALLATION
Connect the circuit-breaker (A) to the terminal
4)
boards (E) of the appliance as shown in the
diagram and in the electrical system diagram
at the back of the manual and use a cable with
at least type H07RN-F characteristics:
– Weight: ≥ than H07RN-F type (designation
245 IEC 57)
– Temperature of use: ≥ 80°
WARNING: When connecting, take
care over the connection of the neutral and
earth wires; if they are not connected cor-
rectly, the burner does not light.
Replace the lid (D) and fi x it with the screws
5)
(C) on completion of the operation.
Close the hatch (B).
6)
For direct connection to the mains one must
envisage a device that ensures disconnection
from the mains, with a contacts opening di-
stance that ensures complete disconnection in
the conditions of category III over-tension, in
compliance with the installation rules.
HAZARD: Before doing any work, cut
off the mains electricity supply.
