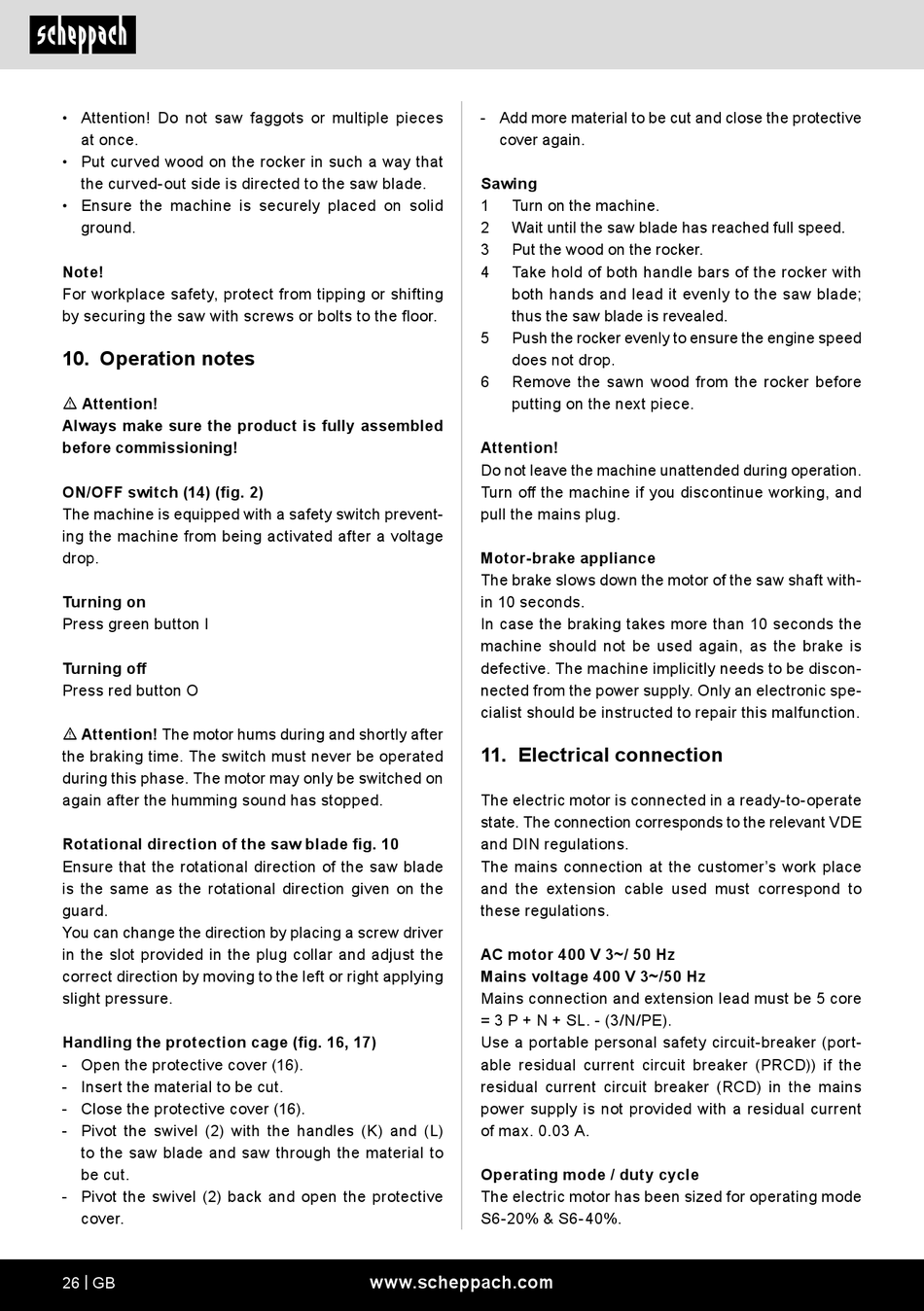

• Attention! Do not saw faggots or multiple pieces
at once.
• Put curved wood on the rocker in such a way that
the curved-out side is directed to the saw blade.
• Ensure the machine is securely placed on solid
ground.
Note!
For workplace safety, protect from tipping or shifting
by securing the saw with screws or bolts to the floor.
10. Operation notes
m Attention!
Always make sure the product is fully assembled
before commissioning!
ON/OFF switch (14) (fig. 2)
The machine is equipped with a safety switch prevent-
ing the machine from being activated after a voltage
drop.
Turning on
Press green button I
Turning off
Press red button O
m Attention! The motor hums during and shortly after
the braking time. The switch must never be operated
during this phase. The motor may only be switched on
again after the humming sound has stopped.
Rotational direction of the saw blade fig. 10
Ensure that the rotational direction of the saw blade
is the same as the rotational direction given on the
guard.
You can change the direction by placing a screw driver
in the slot provided in the plug collar and adjust the
correct direction by moving to the left or right applying
slight pressure.
Handling the protection cage (fig. 16, 17)
- Open the protective cover (16).
- Insert the material to be cut.
- Close the protective cover (16).
- Pivot the swivel (2) with the handles (K) and (L)
to the saw blade and saw through the material to
be cut.
- Pivot the swivel (2) back and open the protective
cover.
26 | GB
- Add more material to be cut and close the protective
cover again.
Sawing
1
Turn on the machine.
2
Wait until the saw blade has reached full speed.
3
Put the wood on the rocker.
4
Take hold of both handle bars of the rocker with
both hands and lead it evenly to the saw blade;
thus the saw blade is revealed.
5
Push the rocker evenly to ensure the engine speed
does not drop.
6
Remove the sawn wood from the rocker before
putting on the next piece.
Attention!
Do not leave the machine unattended during operation.
Turn off the machine if you discontinue working, and
pull the mains plug.
Motor-brake appliance
The brake slows down the motor of the saw shaft with-
in 10 seconds.
In case the braking takes more than 10 seconds the
machine should not be used again, as the brake is
defective. The machine implicitly needs to be discon-
nected from the power supply. Only an electronic spe-
cialist should be instructed to repair this malfunction.
11. Electrical connection
The electric motor is connected in a ready-to-operate
state. The connection corresponds to the relevant VDE
and DIN regulations.
The mains connection at the customer's work place
and the extension cable used must correspond to
these regulations.
AC motor 400 V 3~/ 50 Hz
Mains voltage 400 V 3~/50 Hz
Mains connection and extension lead must be 5 core
= 3 P + N + SL. - (3/N/PE).
Use a portable personal safety circuit-breaker (port-
able residual current circuit breaker (PRCD)) if the
residual current circuit breaker (RCD) in the mains
power supply is not provided with a residual current
of max. 0.03 A.
Operating mode / duty cycle
The electric motor has been sized for operating mode
S6-20% & S6-40%.
