Remember to connect the safety circuit to the connection box terminal marked with
The electricity supply for the cooker must have a safety switch which enables the power
to be cut off in case of emergency. The distance between the working contacts of the
safety switch must be at least 3 mm.
Before connecting the cooker to the power supply it is important to read the
information on the data plate and the connection diagram.

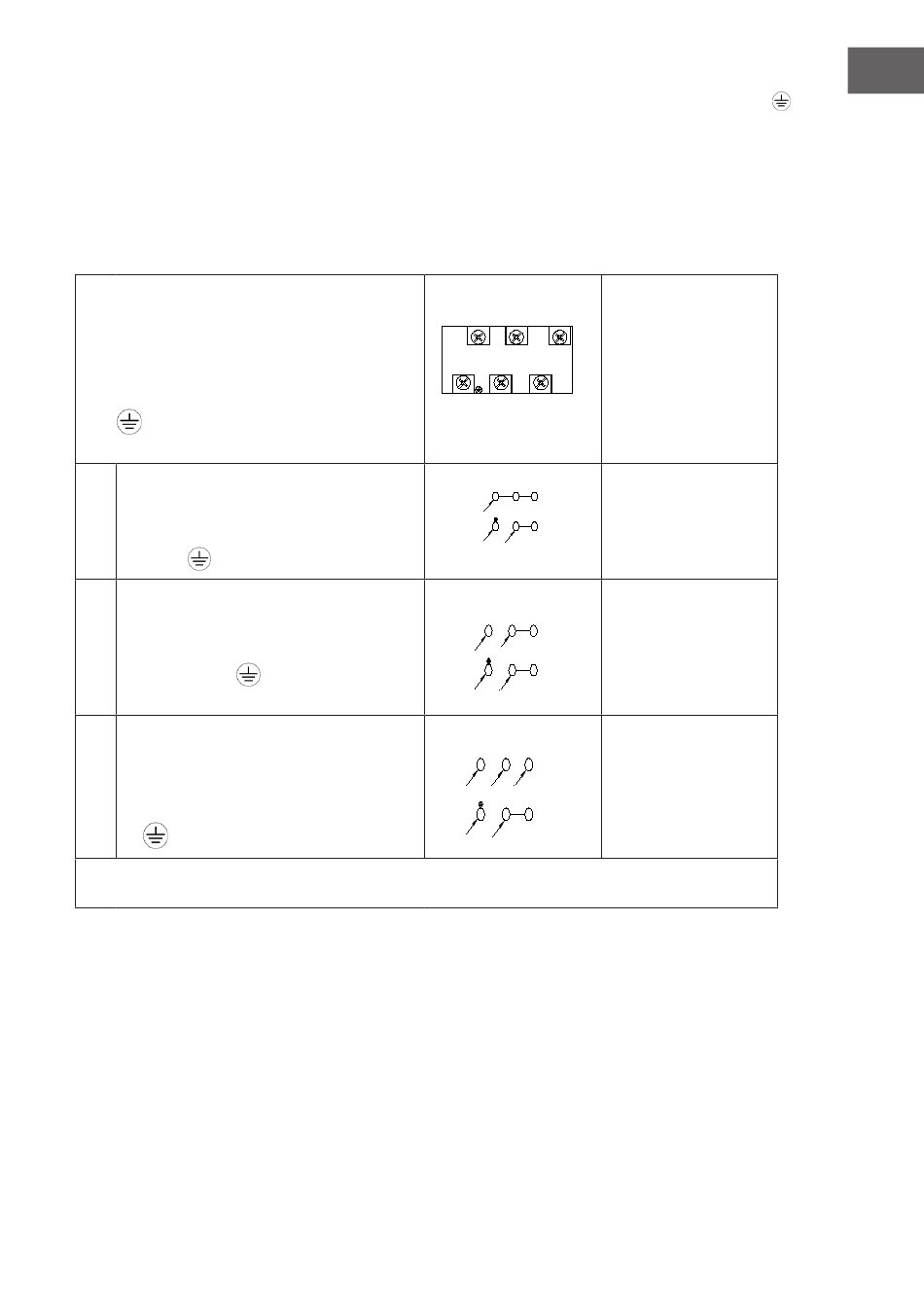

Connection diagram
Caution! Voltage of heating elements
230V
Caution! ln the event of any connection
the earth wire must be connected to
the PE terminal
For 230 V earthed one-phase
1
connection, bridges connect 1-2-3
terminals and 4-5 terminals,earth
wire to .
2 For 400/230V earthed two-phase
connection, bridges connect 2-3
terminals and 4-5 terminals, the
earth wire to
3 For 400-230V earthed two-phase
connection, bridges connect 4-5
terminals, phases in succession 1,2
and 3,Neutral to 4-5,the earth wire
to .
L1=R,L2=S,L3=T,N=neutral wire terminal, PE= earth wire terminal
.
Recommended
1 2 3
type of connection
5 4
lead
1 2 3
L1
5 4
H05VV-F3G4
PE
N
1 2 3
H05VV-F4G2.5
L1 L2
5 4
PE
N
1 2 3
L1 L2 L3
H05VV-F5G1.5
5 4
PE
N
