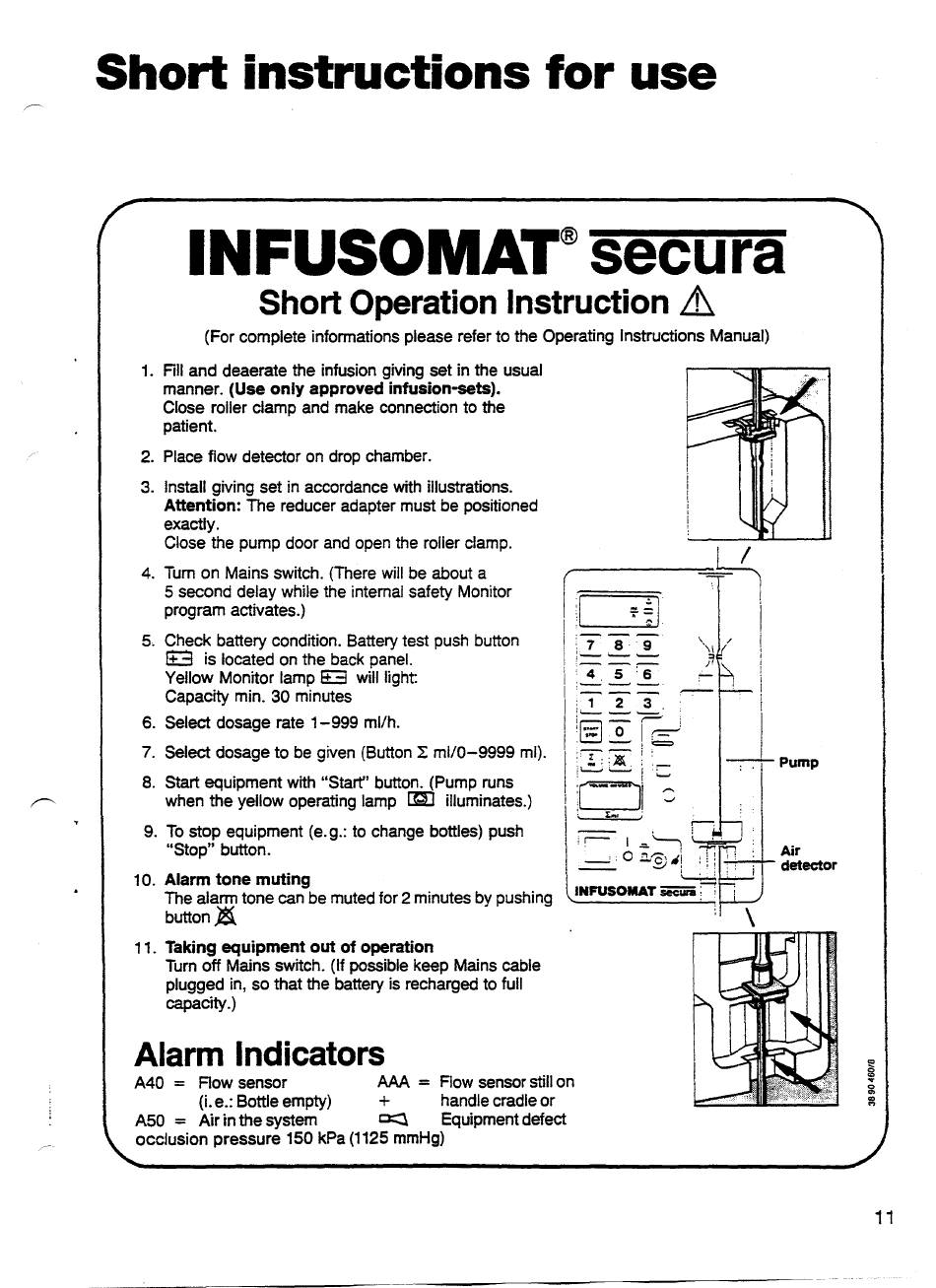

Short instructions for use
Short Operation Instruction À
(For complete informations please refer to the Operating Instructions Manual)
1. Fill and deaerate the infusion giving set in the usual
manner. (Use oniy approved infusion-sets).
Close roller clamp and make connection to the
patient.
2. Place flow detector on drop chamber.
3. Install giving set in accordance with illustrations.
Attention: The reducer adapter must be positioned
exactly.
Close the pump door and open the roller clamp.
4. Turn on Mains switch. (There will be about a
5 second delay while the internal safety Monitor :
program activates.) i
5. Check battery condition. Battery test push button = "8 ο SZ
is located on the back panel. 一 一 一 BE
Yellow Monitor lamp E= will light: 456 sA
Capacity min. 30 minutes
таз
|
6. Select dosage rate 1-999 mi/h. E > (=
7. Select dosage to be given (Button X mi/0—9999 m). | | 一 м
8. Start equipment with "Start" button. (Pump runs : | 一
when the yellow operating lamp illuminates.) [ ~ o
Å Zm j : :
9. To stop equipment (e.g.: to change bottles) push TE A Гы | |
"Stop" button. 2. 0284 TID G L Air
|
—
"94 'ii
detector
10. Alarm tone muting 一 一 二 一
The alarm tone can be muted for 2 minutes by pushing \INFUSOMAT secure: | | /
button JÁ A
11. Taking eguipment out of operation
Turn off Mains switch. (If possible keep Mains cable
plugged in, so that the battery is recharged to full
capacity.)
Alarm Indicators
A40 = Flow sensor AAA = Flow sensor still on
(i.e.: Bottle empty) + handle cradle or
A50 = Airinthe system ca Equipment defect
Noceusion pressure 150 kPa (1125 mmHg)
( INFUSOMAT'secura |
