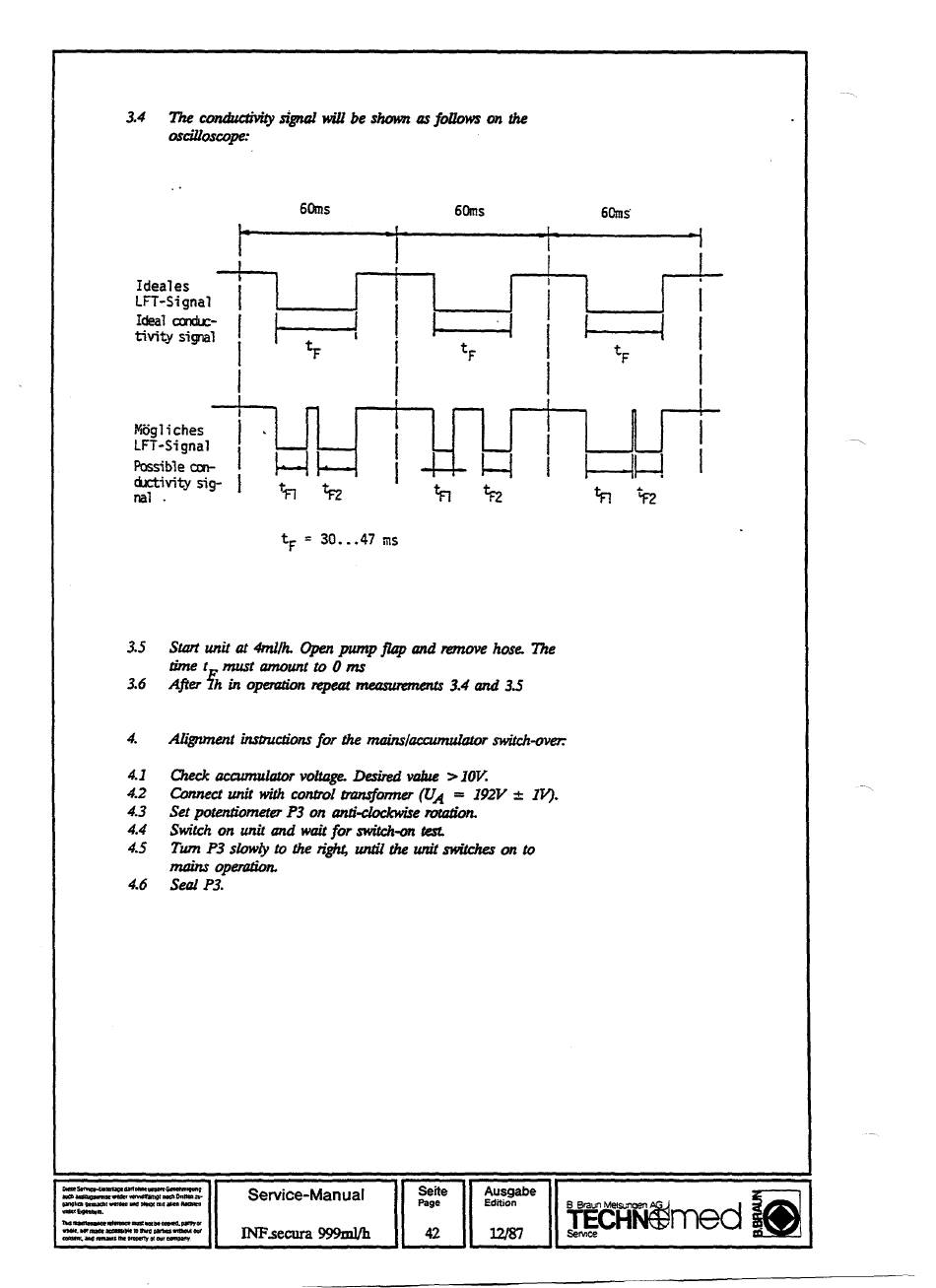

B. Braun INFUSOMAT-secura Reparaturanleitung Seite 93

3.4 The conductivity signal will be shown as follows on the
Ideales
LFT-Signal |
Ideal conduc- |
tivity signal |
Môgliches
LFT-Signal
Possible con-
ductivity sig-
ral .
3.5
3.6
4.1
4.2
4.3
4.4
45
4.6
oscilloscope:
|
= | |
Lot te
İn ta
ta tp
te = 30...47 ms
Start unit at 4mi/h. Open pump flap and remove hose. The
time t , , must amount to O ms
After İk in operation repeat measurements 3.4 and 3.5
Alignment instructions for the mains/accumulator switch-over-
Check accumulator voltage. Desired value > I0V.
Connect unit with control transformer (U4 = 192V + IV).
Set potentiometer P3 on anti-clockwise rotation.
Switch on unit and wait for switch-on test.
Tum P3 slowly to the right, until the unit switches on to
mains operation.
Seal P3.
