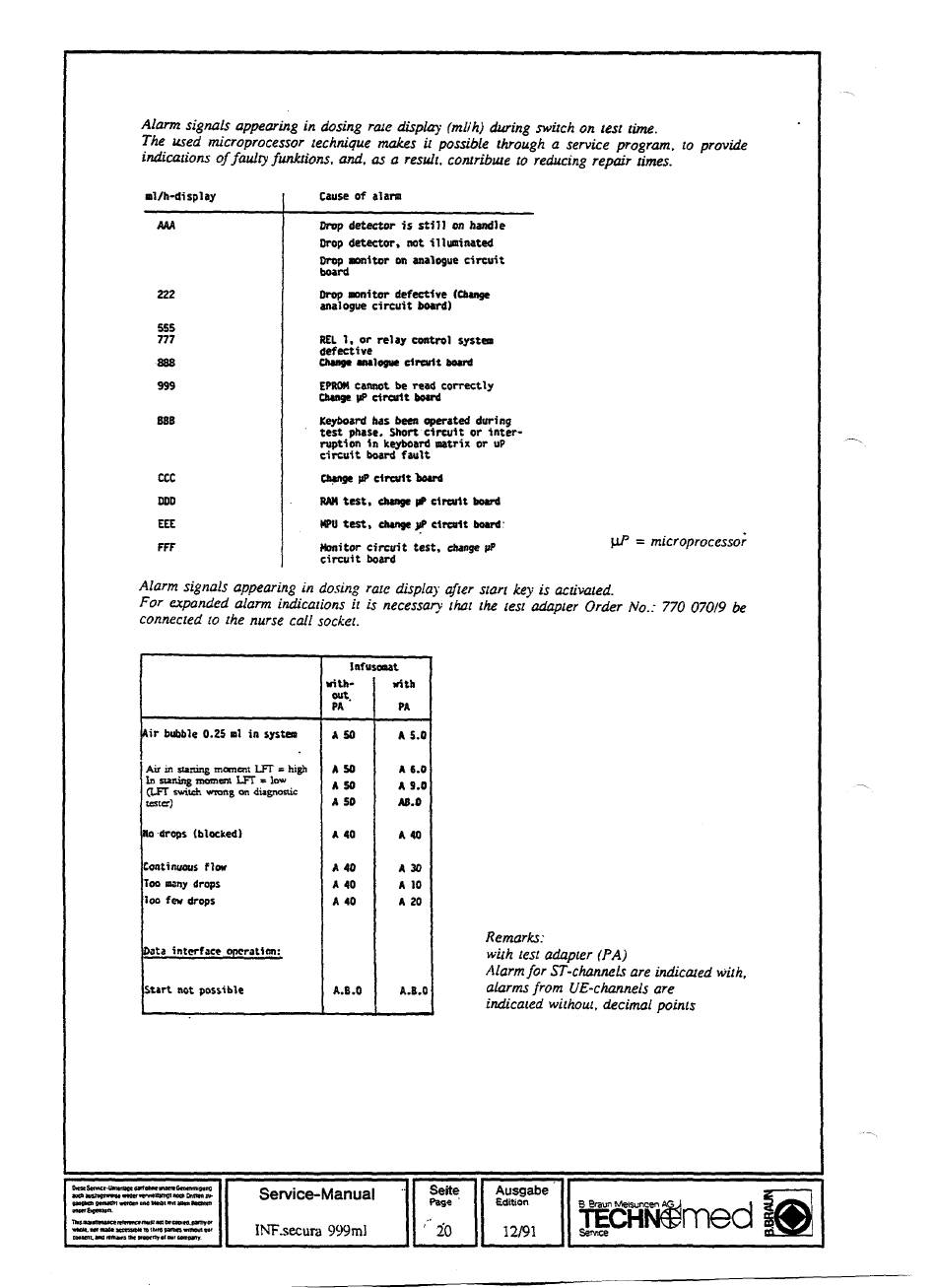

B. Braun INFUSOMAT-secura Reparaturanleitung Seite 71

UP = microprocessor
ml/h-display Cause of alara
ААА Drop detector is still on handle
Drop detector, net illuminated
Drop monitor on analogue circuit
board
222 Drop monitor defective (Change
analogue circuit board)
555
777 REL 1, or relay control system
defective
888 Change analogue circuit board
999 EPROM cannot be read correctly
Change uP circuit board
888 Keyboard has been operated during
test phase. Short circuit or inter-
ruption in keyboard matrix or uP
circuit board fault
CCC Change pP circuit board
DDD RAM test, change pP circuit board
EEE MPU test, change yp circuit board:
FFF Monitor circuit test, change pP
circuit board
Air bubble 0.25 ml in system
Air in starting momem LFT = high
In staning momem LFT = low
(LET switch wrong on diagnostic
tester)
"drops (blocked)
Continuous flow
Too many drops
ioo few drops
[Pata interface opcratien:
Start not possible
Infusomat
with- with
out,
PA PA
A 50 A 5.0
À 50 A 6.0
A 50 A 9.0
A 50 AB.0
A 40 A 40
À 40 A 30
А 40 А 10
А 40 А 20
Remarks:
with test adapter (PA)
Alarm for ST-channels are indicated with,
A.8.0 A.8.0 alarms from UE-channels are
indicated without, decimal points
