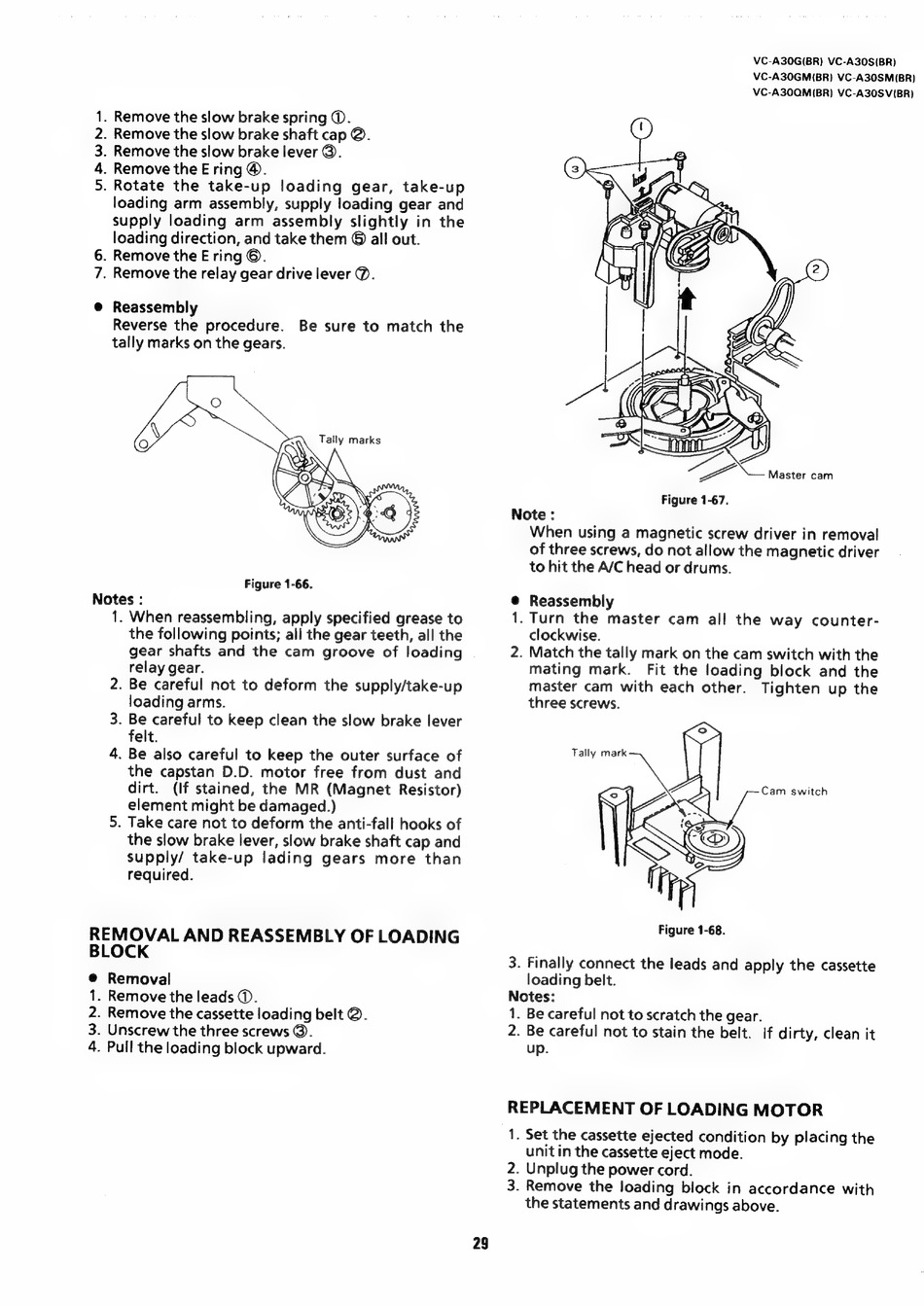

Sharp VC-A30G Serviceanleitung Seite 29

. Remove the slow brake spring @.
. Remove the slow brake shaft cap @.
. Remove the slow brake lever @.
. Remove the E ring @.
. Rotate the take-up loading gear, take-up
loading arm assembly, supply loading gear and
supply loading arm assembly slightly in the
loading direction, and take them © all out.
. Remove the E ring ©.
. Remove the relay gear drive lever @.
UW RWN =
NO
@ Reassembly
Reverse the procedure. Be sure to match the
tally marks on the gears.
Tally marks
Figure 1-66.
Notes :
1. When reassembling, apply specified grease to
the following points; all the gear teeth, all the
gear shafts and the cam groove of loading
relay gear.
2. Be careful not to deform the supply/take-up
loading arms.
3. Be careful to keep clean the slow brake lever
felt.
4. Be also careful to keep the outer surface of
the capstan D.D. motor free from dust and
dirt. (If stained, the MR (Magnet Resistor)
element might be damaged.)
5. Take care not to deform the anti-fall hooks of
the siow brake lever, slow brake shaft cap and
supply/ take-up lading gears more than
required.
REMOVAL AND REASSEMBLY OF LOADING
BLOCK
@ Removal
1. Remove the leads ©.
2. Remove the cassette loading belt @.
3. Unscrew the three screws ©.
4. Pull the loading block upward.
29
VC-A30G(BR) VC-A30S(BR)
VC-A30GM(BR) VC-A30SM(BR)
VC-A300M(BR) VC-A30SVIBR)
PD Master cam
Figure 1-67.
Note :
When using a magnetic screw driver in removal
of three screws, do not allow the magnetic driver
to hit the A/C head or drums.
@ Reassembly
clockwise.
=
Cam switch
Figure 1-68.
3. Finally connect the leads and apply the cassette
loading belt.
Notes:
REPLACEMENT OF LOADING MOTOR
2. Unplug the power cord.
