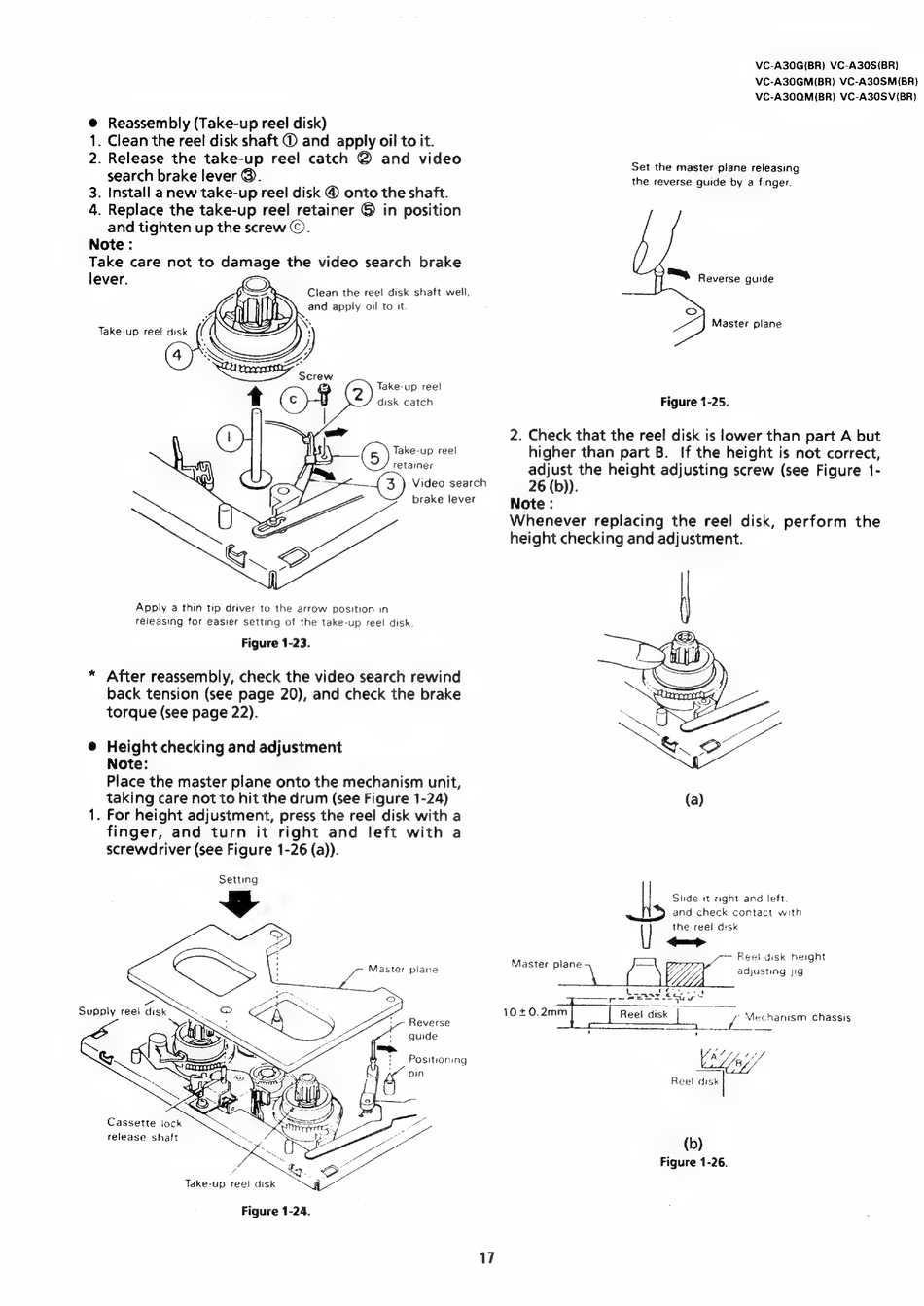

@ Reassembly (Take-up reel disk)
. Clean the reel disk shaft © and apply oil to it.
2. Release the take-up reel catch @ and video
search brake lever ©.
3. Install anew take-up reel disk @ onto the shaft.
4. Replace the take-up reel retainer © in position
and tighten up the screw ©.
Note:
Take care not to damage the video search brake
lever.
—
Clean the reel disk shaft well,
and apply oil to it
Take-up reel disk (( ))
\ Neumast7...,
Take-up reel
disk catch
Take-up reel
retainer
©)
Video search
brake lever
Apply a thin tip driver to the arrow position in
releasing for easier setting of the take-up ree! disk
Figure 1-23.
* After reassembly, check the video search rewind
back tension (see page 20), and check the brake
torque (see page 22).
@ Height checking and adjustment
Note:
Place the master plane onto the mechanism unit,
taking care not to hit the drum (see Figure 1-24)
1. For height adjustment, press the reel disk with a
finger, and turn it right and left with a
screwdriver (see Figure 1-26 (a)).
Setting
e r plane
Reverse
guide
: Positioning
of pin
Cassette jock
release shaft
Take-up reel disk
Figure 1-24.
17
VC-A30G(BR) VC-A30S(BR)
VC-A30GMI(BR) VC-A30SM(BR)
VC-A300MI(BR) VC-A30SV(BR)
Set the master plane releasing
the reverse guide by a finger.
= Reverse guide
oO
Master plane
Figure 1-25.
2. Check that the reel disk is lower than part A but
higher than part B. If the height is not correct,
adjust the height adjusting screw (see Figure 1-
26 (b)).
Note :
Whenever replacing the reel disk, perform the
height checking and adjustment.
Slide it nght and left,
| ») and check contact with
\] the reel disk
—_—>
v7 Reel disk height
LL adjusting stg
c Ld
t oat
baad fae
10+0.2mm
Reel disk
~ Mechanism
chassis
= oenee A
SPY
A B
Reel ars |
(b)
Figure 1-26.
