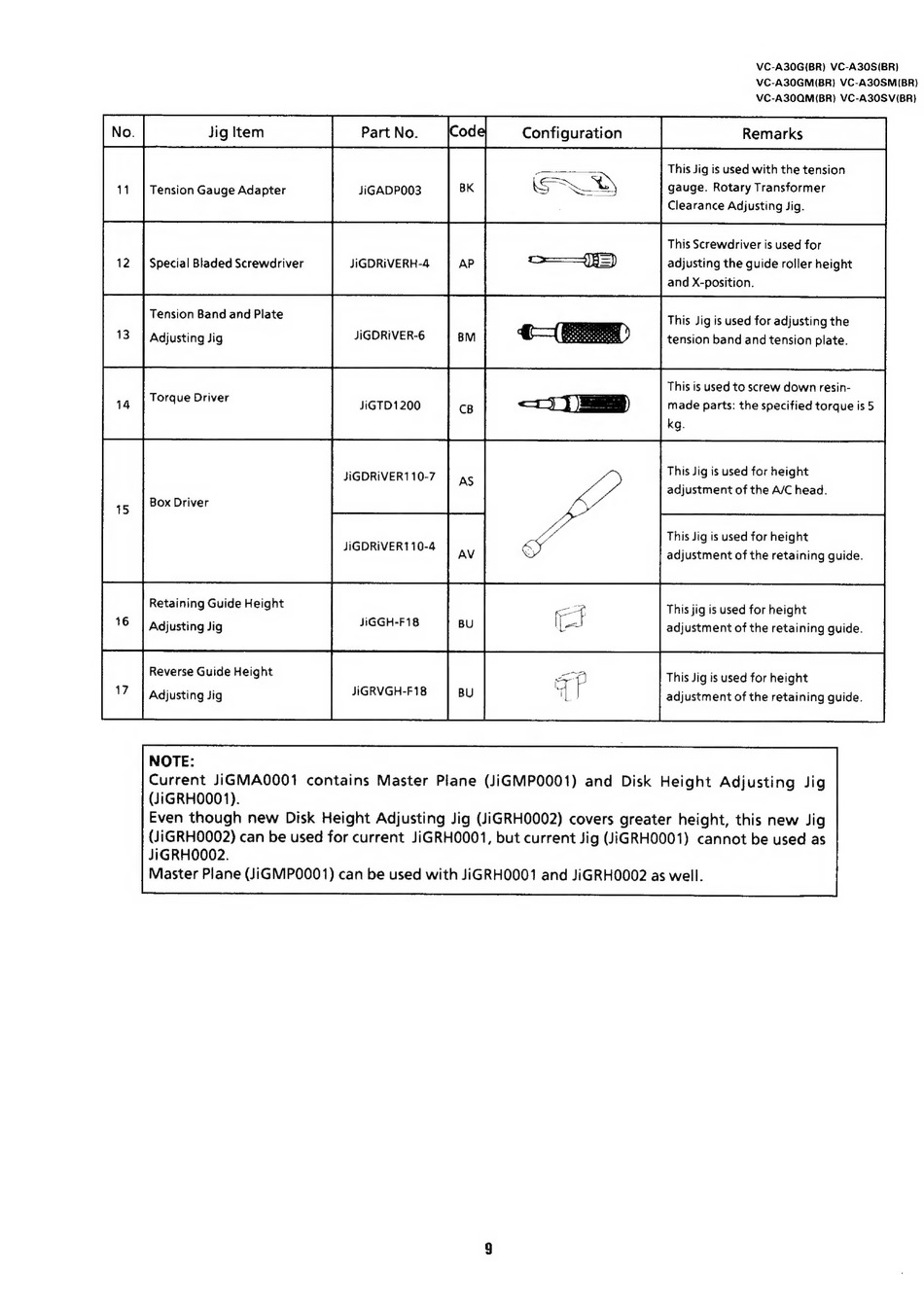

Sharp VC-A30G Serviceanleitung Seite 9

VC-A30G(BR) VC-A30S(BR)
VC-A30GM{BR) VC-A30SMI(BR)
VC-A300M(BR) VC-A30SV(BR}
[ne [ seven | Porno. Fo] config
Tension Gauge Adapter JiGADP003 BK
Special Bladed Screwdriver JiGDRiIVERH-4
Tension Band and Plate
Adjusting Jig
JiGDRIVER-6
ore
JiGDRIVER110-7
15 Box Driver
JiGDRIVER1 10-4
Retaining Guide Height
Adjusting Jig JiGGH-F18
JiGRVGH-F18 BU
NOTE:
Current JiGMA0001 contains Master Plane (JiGMP0001) and Disk Height Adjusting Jig
GiGRHO001).
Even though new Disk Height Adjusting Jig (JiGRH0002) covers greater height, this new Jig
This Jig is used with the tension
gauge. Rotary Transformer
Clearance Adjusting Jig.
This Screwdriver is used for
adjusting the guide roller height
and X-position.
This Jig is used for adjusting the
tension band and tension plate.
This is used to screw down resin-
made parts: the specified torque is 5
kg.
This Jig is used for height
adjustment of the A/C head.
This Jig is used for height
adjustment of the retaining guide.
This jig is used for height
adjustment of the retaining guide.
Reverse Guide Height
This Jig is used for height
Adjusting Jig adjustment of the retaining guide.
(JiGRH0002) can be used for current JiGRH0001, but current Jig (JiGRHO001) cannot be used as
JiGRHO002.
Master Plane (JiGMP0001) can be used with JiGRH0001 and JiGRH0002 as well.
