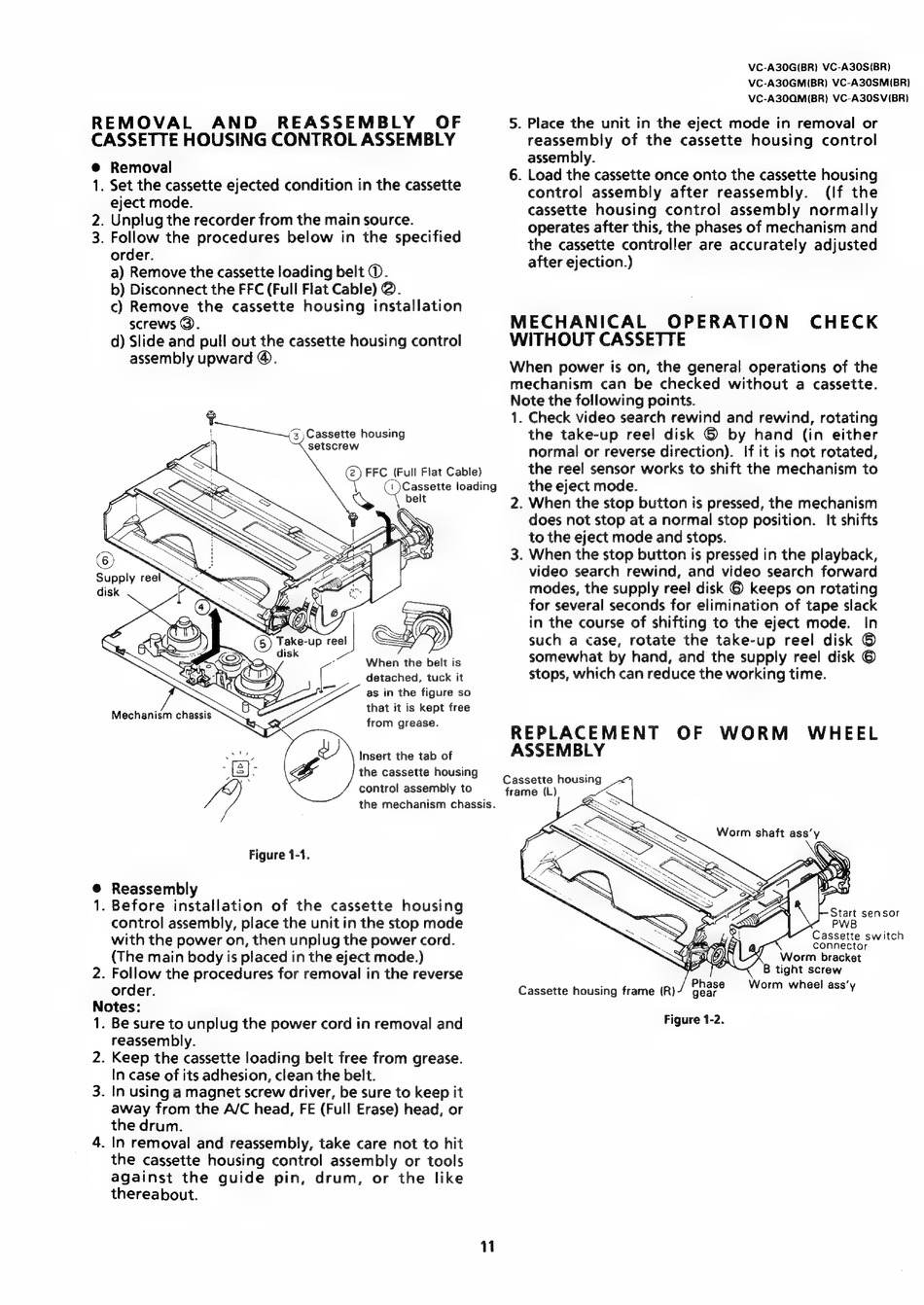

REMOVAL
AND
REASSEMBLY
OF
CASSETTE HOUSING CONTROL ASSEMBLY
1.
2.
3. Follow the procedures below in the specified
Supply ree!
disk
—_
2.
Removal
Set the cassette ejected condition in the cassette
eject mode.
Unplug the recorder from the main source.
order.
a) Remove the cassette loading belt ©.
b) Disconnect the FFC (Full Flat Cable) @.
c) Remove
the cassette
housing
installation
screws @.
d) Slide and pull out the cassette housing control
assembly upward @.
'3 ,Cassette housing
setscrew
When the belt is
detached, tuck it
——
as in the figure so
p
that it is kept free
from grease.
Insert the tab of
Figure 1-1.
Reassembly
. Before installation
of the cassette
housing
control assembly, place the unit in the stop mode
with the power on, then unplug the power cord.
(The main body is placed in the eject mode.)
Follow the procedures for removal in the reverse
order.
Notes:
1.
2.
3.
Be sure to unplug the power cord in removal and
reassembly.
Keep the cassette loading belt free from grease.
In case of its adhesion, clean the belt.
In using a magnet screw driver, be sure to keep it
away from the A/C head, FE (Full Erase) head, or
the drum.
. In removal and reassembly, take care not to hit
the cassette housing control assembly or tools
against the guide
pin, drum,
or the like
thereabout.
the cassette housing
control assembly to
the mechanism chassis.
FFC (Full Fiat Cable)
Q Cassette loading
11
VC-A30G(BR) VC-A30S(BR)
VC-A30GM(BR) VC-A30SM(BR)
VC-A30QM(BR) VC-A30SV(BR)}
5. Place the unit in the eject mode
in removal or
reassembly of the cassette
housing control
assembly.
6. Load the cassette once onto the cassette housing
control assembly after reassembly.
(If the
cassette housing control assembly normally
operates after this, the phases of mechanism and
the cassette controller are accurately adjusted
after ejection.)
MECHANICAL
OPERATION
CHECK
WITHOUT CASSETTE
When power is on, the general operations of the
mechanism
can be checked without a cassette.
Note the following points.
1. Check video search rewind and rewind, rotating
the take-up reel disk © by hand (in either
normal or reverse direction).
If it is not rotated,
the reel sensor works to shift the mechanism to
the eject mode.
2. When the stop button is pressed, the mechanism
does not stop at a normal stop position.
It shifts
to the eject mode and stops.
3. When the stop button is pressed in the playback,
video search rewind, and video search forward
modes, the supply reel disk © keeps on rotating
for several seconds for elimination of tape slack
in the course of shifting to the eject mode.
In
such a case, rotate the take-up reel disk ©
somewhat by hand, and the supply reel disk ©
stops, which can reduce the working time.
REPLACEMENT
OF
WORM
WHEEL
ASSEMBLY
Cassette housing
frame (L)
Start sensor
PWB
Cassette switch
connector
Worm
bracket
Cassette housing frame (R)/
gear
Figure 1-2.
