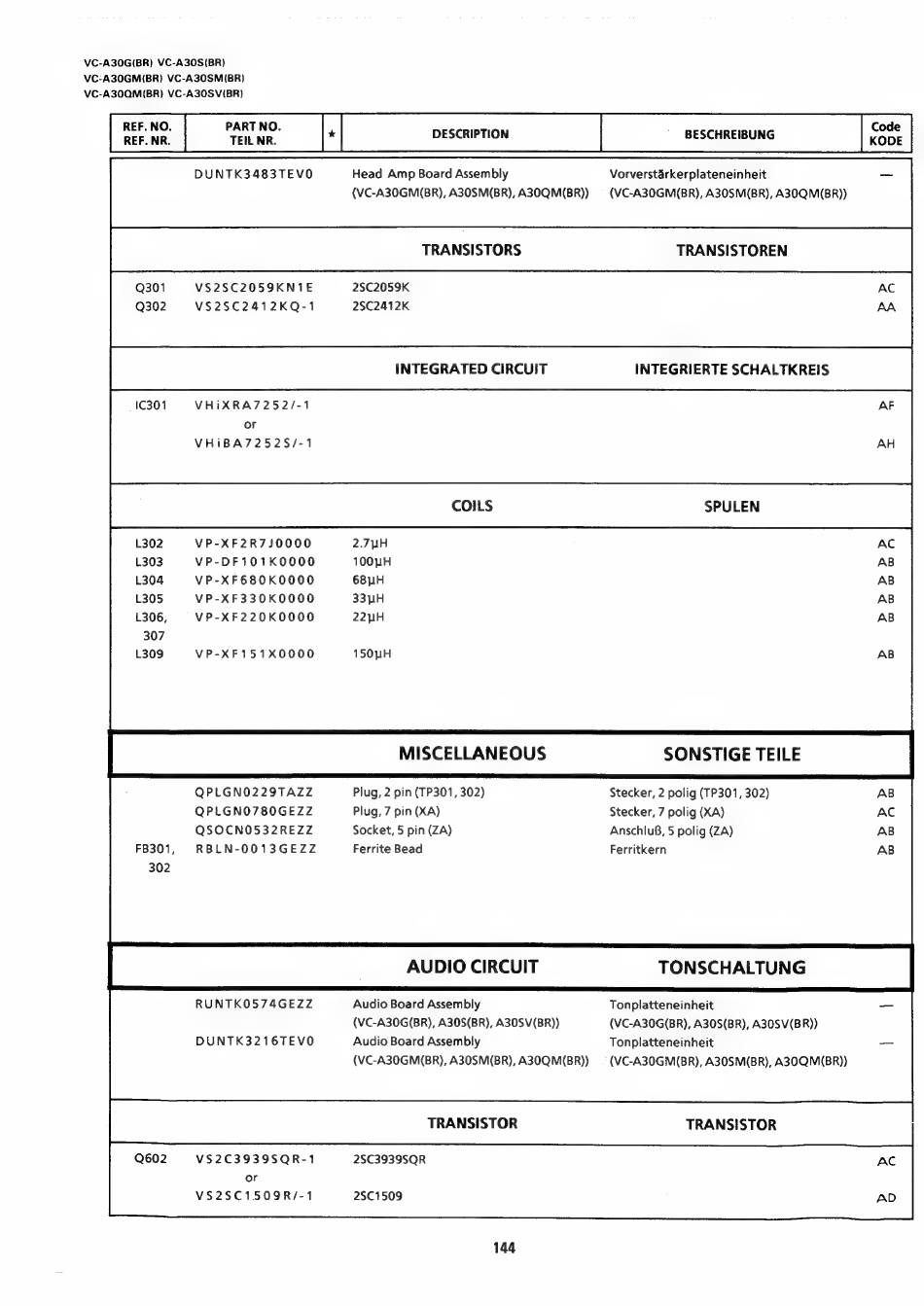

VC-A30G(BR) VC-A30S(BR)
VC:-A30GM(BR) VC-A30SM(BR)
VC-A30Q0M(BR) VC-A30SV(BR}
REF. NO. PART NO. ; Code
DUNTK3483TEVO Head Amp Board Assembly Vorverstarkerplateneinheit
(VC-A30GM(BR), A30SM(BR), A30QM(BR)) = (VC-A30GM(BR), A30SM(BR), A30QM(BR))
TRANSISTORS TRANSISTOREN
Q301 VS2SC2059KNIE 2SC2059K
Q302 VS2$C2412KQ-1 28C2412K
INTEGRATED CIRCUIT INTEGRIERTE SCHALTKREIS
1€301 VHiXRA7252/-1
or
VHiBA7252S/-1
COILS SPULEN
VP-XF2R7J0000
VP-DF101K0000
VP-XF680K0000
VP-XF330K0000
VP-XF220K0000
VP-XF151X0000
MISCELLANEOUS SONSTIGE TEILE
QPLGNO0229TAZZ Plug, 2 pin (TP301, 302) Stecker, 2 polig (TP301, 302)
QPLGNO780GEZZ Plug, 7 pin (XA) Stecker, 7 polig (XA)
QSOCNO532REZZ Socket, 5 pin (ZA) AnschluB, 5 polig (ZA)
RBLN-0013GEZZ Ferrite Bead Ferritkern
AUDIO CIRCUIT TONSCHALTUNG
RUNTKO574GEZZ Audio Board Assembly Tonplatteneinheit
(VC-A30G(BR), A30S(BR), A30SV(BR)) (VC-A30G(BR), A30S(BR), A30SV(BR))
DUNTK3216TEVO Audio Board Assembly Tonplatteneinheit
(VC-A30GM(BR), A30SM(BR), A30QM(BR)) ~— (VC-A30GM(BR), A30SM(BR), A30QM(BR))
TRANSISTOR TRANSISTOR
V$2C3939SQR-1 2SC3939SQR
or
VS2SC1509R/-1 28C1509
144
