RP-Tools RP-4042B2 Installations- Und Wartungshandbuch Seite 82

RP-R-4042B2, 4064B2
8.2 CONTROLS OF JACKING BEAM (optional)

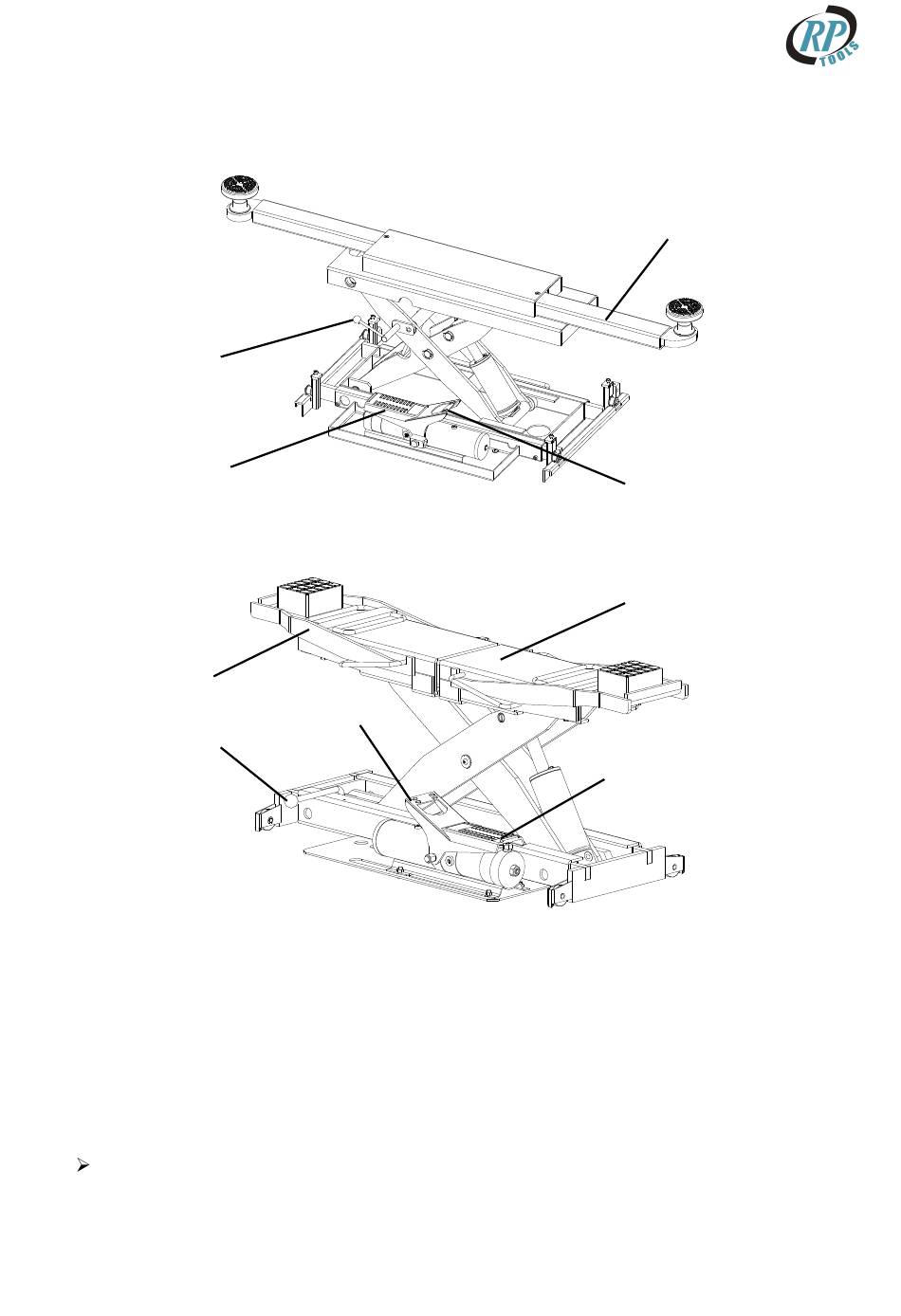

Figure 31A (RP-4042B2) – CONTROLS OF JACKING BEAM
3
1
Figure 31B (RP-4064B2) – CONTROLS OF JACKING BEAM
5
3
LIFTING SIDE OF PEDAL (1)
• When pressed, the hydraulic fluid is delivered from the oil reservoir of the pump into the jack
cylinder to raise the jack.
LOWERING SIDE OF PEDAL (2)
• When pressed, the hydraulic fluid is released from the jack cylinder into the oil reservoir of the
pump to lower the jack under the weight loaded. The lowering speed can be controlled by the
pressing force.
SAFETY RELEASE HANDLE (3)
Flip the safety release handle up off the safety.
JACK LIFTING ARM (4)
SLIDING ADAPTOR EXTENSION (5)
REV. 01
RP-TOOLS Werkstatt-Technik
2
81 / 94
4
2
4
1
