7.10 PNEUMATIC SYSTEM CONNECTION
When routing the air tubes, make sure that the tubes are clear of any moving
part. It may necessary to tie the hoses clear by using nylon tie straps or wire.
Failure to do so may result in safety failure which may result in damage or
personal harm.
Filter/regulator must be equipped on the air circuit and the air pressure is to be
set at 6-8bar.
The pneumatic supply at site (to which the pneumatic system of the lift is connected) must be equipped
with a servicing unit composed of water separator, lubricator and pressure reducer. These devices can
be supplied by the manufacturer on request.
For the connection of the pneumatic lines proceed as follow:
• Install the air solenoid valve on the power-side column using 2 x screws M4X30 (ref. fig. 21).
• Connect the pneumatic lines pre-assembled on the runways as shown in the figure 21.
• Connect the pneumatic system of the lift to the pneumatic supply at site.
• Check the pneumatic control operations for proper performance.

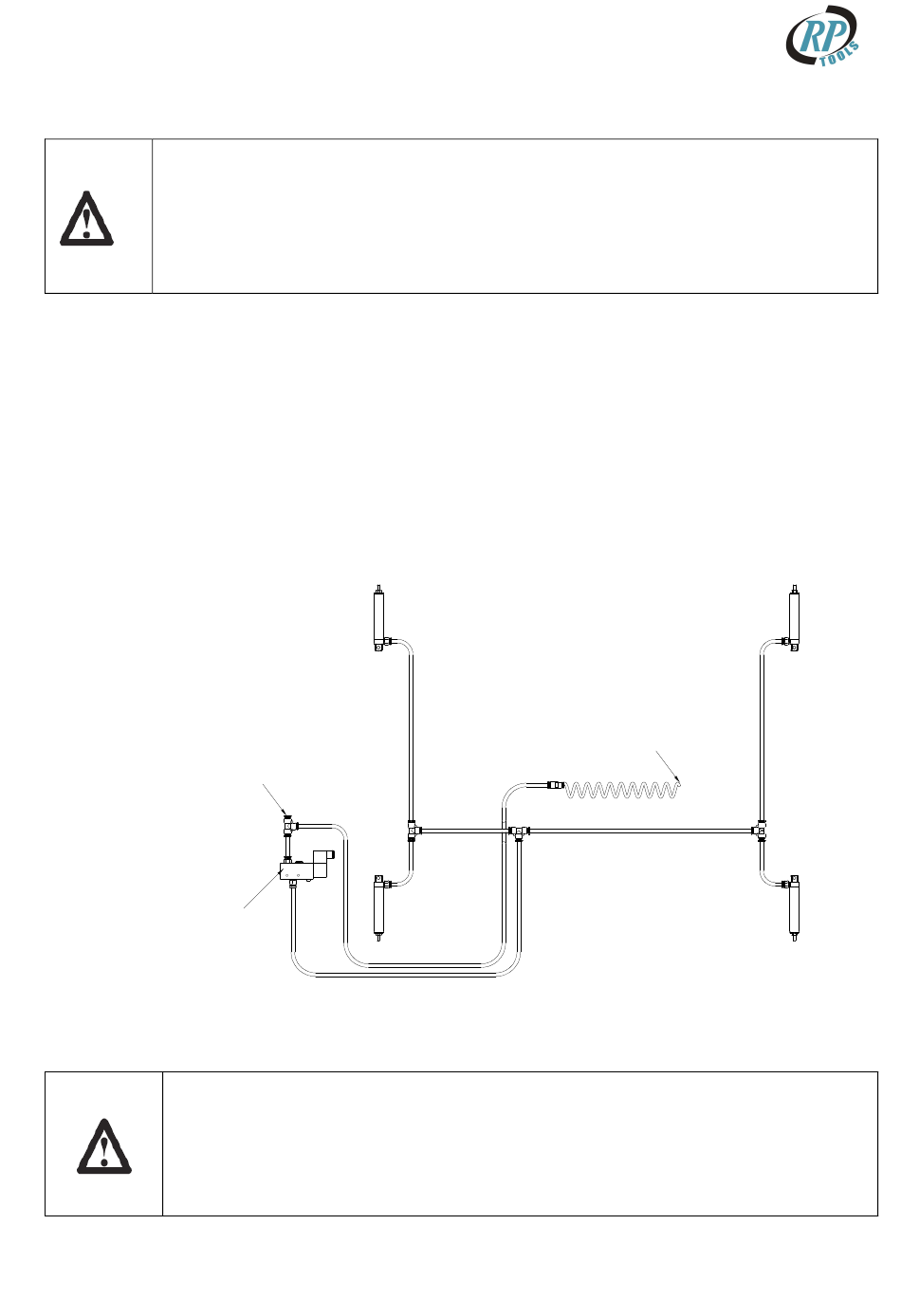

• Figure 20 – PNEUMATIC LINE CONNECTION
Air filter/lubricator
Air solenoid valve
for safety release
•
• 7.11 MAKE THE ELECTRICAL HOOKUP TO THE POWER UNIT
•
The hookup work must be carried out by a qualified electrician.
Make sure that the power supply is right.
Make sure the connection of the phases is right.
The power unit must be kept dry.
