RP-R-4042B2, 4064B2
7.6B (RP-4064B2) INSTALLATION OF RUNWAYS AND TRANSVERSE BEAMS
It is important to position the power-side runway (with the hydraulic cylinder)
on the same side as the power unit location.
The rails on each side must be installed to the inside.
Elevate runways off the floor with blocks of wooed to prevent any damage.
Pay attention that "T" fitting for air supply is closest to the power side of the lift.
• Unpack the lift by removing all wrapping
films.
• Place each runway in the predetermined
location. Make sure that the rails on each
side must be installed to the inside. Pay
attention to the location of the power-side
runway.
• Place the front and rear transverse beams on
each ends of runways. The runways and
transverse beams should be laid out as
shown in figure 13B. Make sure the
accessories are installed in the runways before installation. Make sure that the plastic slide
blocks are in position.
• Remove all covers on transverse beams.

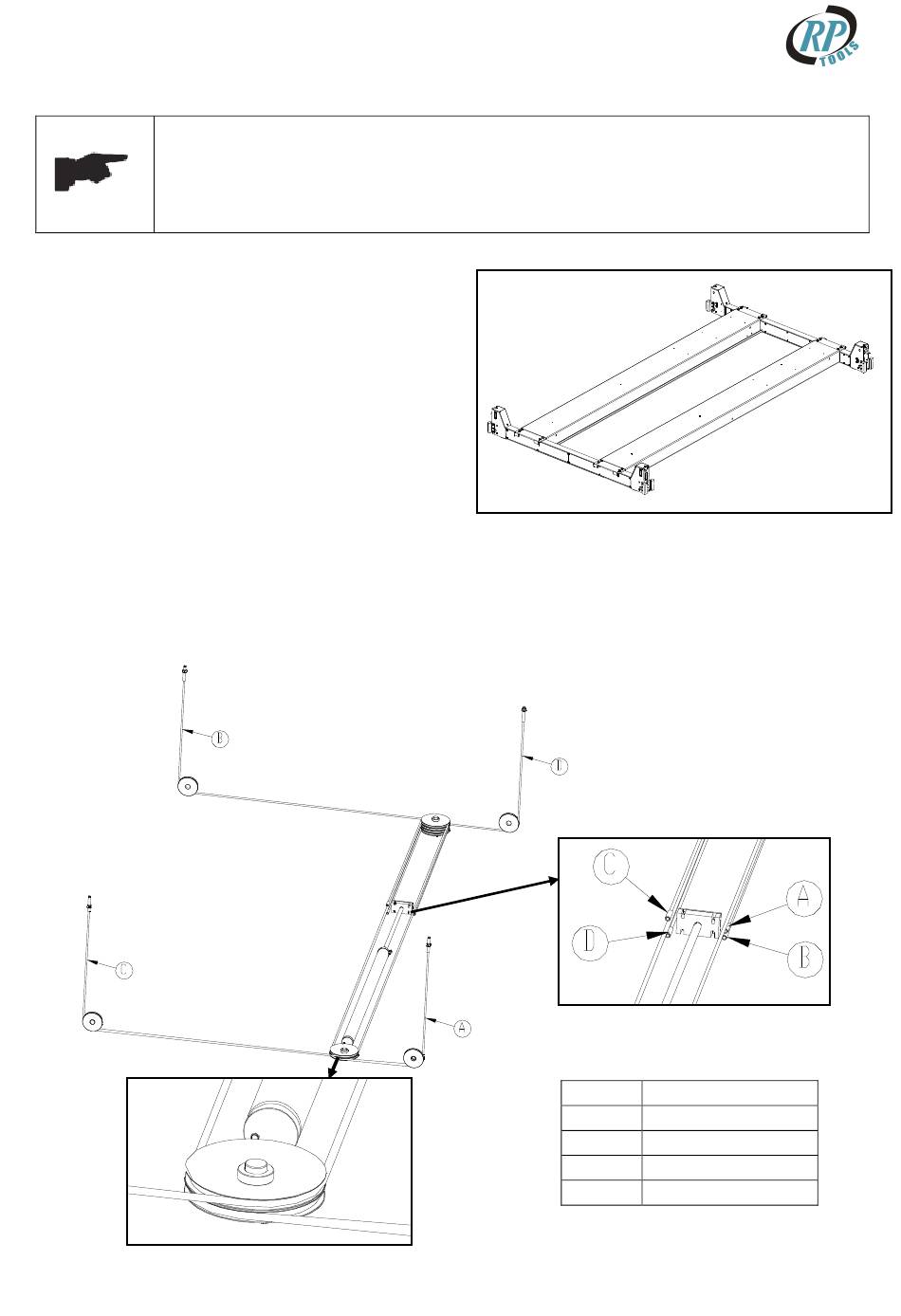

• Slide the steel cables from the end of power-side runway and route the cables though the
transverse beams referring to the routing diagram (fig. 14B). Make sure that the cables are not
twisted during routing and routed on the correct pulleys in runways.
REV. 01
RP-TOOLS Werkstatt-Technik
Fig.14B
(RP-4064B2)
53 / 94
Fig.13B
(RP-4064B2)
Item
Cable length
A
9130mm
B
5560mm
C
10730mm
D
3960mm
